Newtec

Newtec NTC/2063/Lx DVB Satellite Demodulator DVB-2063 1.41-45 Mbaud Rackmount

(No reviews yet) Write a Review
SKU:
50301
MPN:
NTC/2063/Lx
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
16.00 LBS
Shipping:
Calculated at Checkout

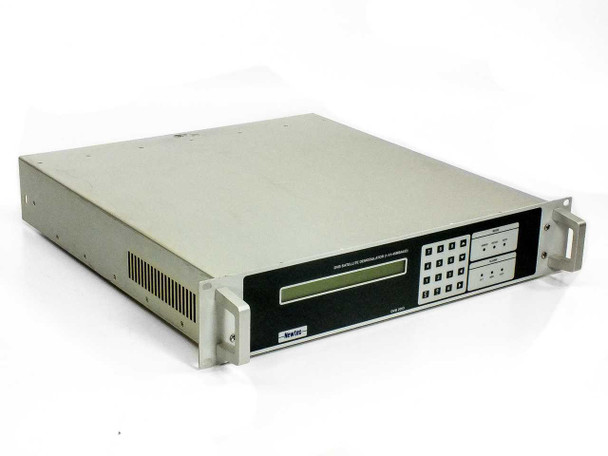

  • Newtec DVB-2063 NTC/2063/Lx satellite demodulator – front and right-side 3/4 view showing LCD display and keypad
  • Newtec DVB-2063 NTC/2063/Lx satellite demodulator – rear panel 3/4 view showing IF BNC inputs, MON & CTRL port, ALARM connector, COAX outputs, and cooling fans
  • Newtec DVB-2063 rating label showing Type NTC/2063/Lx, Serial Number 00092524, Interface 3362/HG, Made in Belgium, UL and CE markings, QC Passed sticker
  • Newtec DVB-2063 NTC/2063/Lx satellite demodulator – front panel straight-on view showing LCD display, Newtec logo, and DVB 2063 designation
  • Newtec DVB-2063 front panel close-up showing rack ear, LCD display, and Newtec logo badge
  • Newtec DVB-2063 LCD display close-up showing 'NEWTEC DVB+8+16 Demod. v1.60 14 Nov 2000 / system test passed' and 'DVB SATELLITE DEMODULATOR (1.41-45MBAUD)' label
  • Newtec DVB-2063 front panel right-side close-up showing numeric keypad, MODE indicators (DEMOD, DECOD, DEFR), and ALARM indicators (ACT, MEM, TEST)
  • Newtec DVB-2063 rear panel straight-on view showing IEC power inlet, ALARM DB9, MON & CTRL DB9, IF BNC inputs A/B/C, cooling fans, COAX1/COAX2 BNC outputs, and SUB-D connector
  • Newtec DVB-2063 rear panel left-side close-up showing power inlet label (100-240V, 47-63Hz, 150VA MAX), ALARM DB9 connector, power on/off rocker switch, and IF BNC inputs C/B/A
  • Newtec DVB-2063 rear panel right-side close-up showing IF BNC inputs, two cooling fans, COAX1 and COAX2 BNC outputs, MON & CTRL DB9, and SUB-D connector
  • Newtec NTC/2063/Lx DVS Commercial Satellite Demodulator DVB 2063 - Rackmount
$275.00
Was: $550.00
Current Stock: 2

Sold Out

Description

Newtec NTC/2063/Lx DVB Satellite Demodulator DVB-2063 1.41-45 Mbaud Rackmount

DVB satellite demodulator for receiving and processing DVB-S signals. Supports QPSK modulation with symbol rates from 1.41 to 45 Mbaud. 2U rackmount form factor with LCD display and numeric keypad controls.

Specifications & What's Included

  • Model: NTC/2063/Lx (DVB 2063)
  • Symbol Rate Range: 1.41–45 Mbaud
  • Standards: DVB, DVB-S, QPSK
  • IF Inputs: 3 x BNC (A, B, C)
  • Output: COAX1, COAX2 (BNC), SUB-D port
  • Monitoring/Control: DB9 serial port (MON & CTRL)
  • Alarm Interface: DB9 connector
  • Power: 100–240V AC, 47–63 Hz, 150VA max
  • Firmware: v1.60 (November 14, 2000)
  • Certifications: UL, CE, FCC Part 15 Class A

Applications

Used in satellite broadcast receive stations, teleport facilities, and broadcast distribution networks. Processes DVB-S satellite signals for terrestrial rebroadcast or cable headend distribution. Typical in European broadcast infrastructure and legacy telecom setups.

Condition: Used
This Newtec NTC/2063/Lx DVB Satellite Demodulator (DVB-2063) powers on and the LCD display shows 'system test passed' as visible in the photo set. The unit is in good used condition with light cosmetic wear typical of rack-mounted equipment. The front panel, keypad, and LCD are clean and intact. The rear panel connectors — including the IEC power inlet, BNC IF inputs, MON & CTRL DB9, ALARM DB9, COAX outputs, and SUB-D port — appear clean and undamaged. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Newtec
Model:
NTC/2063/Lx
MPN:
NTC/2063/Lx
Secondary Model:
DVB 2063
Type:
DVB Satellite Demodulator
SKU:
50301
Interface Option:
3362/HG
Symbol Rate Range:
1.41 – 45 Mbaud
Standards:
DVB, DVB-S, QPSK
IF Inputs:
3 x BNC (A, B, C) on rear panel
Output Connectors:
COAX1, COAX2 (BNC); SUB-D port
Monitoring & Control:
MON & CTRL – DB9 serial port, rear panel
Alarm Interface:
DB9 ALARM connector, rear panel
Power Requirements:
100-240V AC, 47-63 Hz, 150VA MAX
Power Connector:
IEC C14 inlet with rocker on/off switch
Form Factor:
Rack Mount
Rack Units:
2U
Front Panel Display:
LCD alphanumeric display
Front Panel Controls:
Numeric keypad; MODE (DEMOD/DECOD/DEFR); ALARM (ACT/MEM/TEST)
Firmware Version:
v1.60 (14 Nov 2000, per display)
Country/Region of Manufacture:
Belgium
Certifications:
UL (E188866), CE, FCC Part 15 Class A
Condition:
Used – Powers On, System Test Passed
Seller Notes:
Unit only; no additional accessories shown.
Condition Notes:
Newtec NTC/2063/Lx DVB Satellite Demodulator powers on; LCD displays 'system test passed.' Good used condition with typical cosmetic wear. Rear connectors clean. Please view photos and contact us with questions.
View AllClose

Related Products

Related Products

Newtec DVB RX 2060 DVB+8 Satellite Demodulator – front panel and top view showing iridescent rack chassis Newtec DVB RX 2060 – rear panel angled view showing connectors, fans, and rack ears
Add to Cart
Quick view

Newtec DVB RX 2060 DVB+8 Satellite Demodulator NTC/2060/Lx 90-260VAC Rackmount

Newtec

$275.00
Was: $550.00
Newtec DVB RX 2060 DVB+8 Satellite Demodulator NTC/2060/Lx 90-260VAC RackmountThe Newtec DVB RX 2060 is a professional rackmount DVB+8 satellite demodulator designed for receiving and demodulating...
50306
SKU:
50306
Availability:
Usually ships within 1-2 business days.
Weight:
20.00 LBS
Brand:
Newtec
Model:
DVB RX 2060
MPN:
NTC/2060/Lx
Type:
DVB+8 Satellite Demodulator
SKU:
50306
Form Factor:
Rackmount (2U)
Power Requirements:
90-260VAC, 50/60Hz
Interface Option:
Interf. 33271AE
Output Interface:
SP/RS422
IF Input Connector:
BNC
Monitor & Control Port:
DB9 RS-232 (MON & CONTRL)
Alarm Port:
DB9
Signal Standard:
DVB-S / DVB+8
Modulation:
QPSK
Front Panel Display:
LCD alphanumeric
Mode Indicators:
DEMOD, DECOD, DEFR
Alarm Indicators:
ACT, MEM, TEST
Cooling:
Dual rear-mounted fans
Condition:
Used – Inspected and Tested
Country/Region of Manufacture:
Belgium
Seller Notes:
Unit powers on, passes boot self-test; all front-panel buttons functional.
Condition Notes:
Newtec DVB RX 2060 DVB+8 Satellite Demodulator powers on, display lights up, passes boot-up self-test. All front-panel buttons work. Not tested beyond that at our facility. Chassis shows cosmetic discoloration. Sold as inspected.

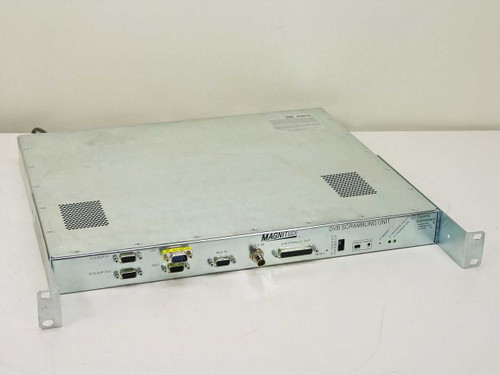

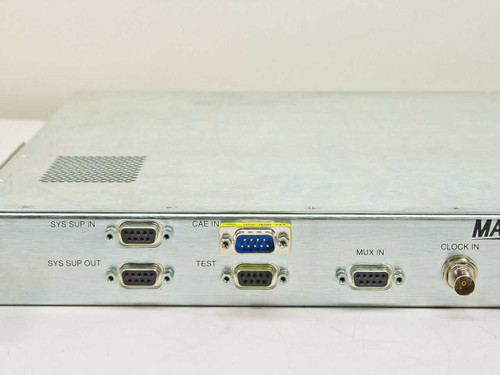

General Instrument Magnitude 00-410809-01 DVB Scrambling Unit – front panel view showing MAGNITUDE label, DB-9 ports, and rack ears General Instrument Magnitude DVB Scrambling Unit – left side panel detail showing SYS SUP IN, SYS SUP OUT, CAE IN, TEST, and MUX IN DB-9 connectors and CLOCK IN BNC
