Description
Newtec DVB RX 2060 DVB+8 Satellite Demodulator NTC/2060/Lx 90-260VAC Rackmount
The Newtec DVB RX 2060 is a professional rackmount DVB+8 satellite demodulator designed for receiving and demodulating DVB-S signals in broadcast, teleport, and satellite uplink/downlink environments. Manufactured by Newtec CY (Belgium), it accepts an L-band IF input and processes QPSK-modulated DVB signals, outputting decoded data via an SP/RS422 interface. The front panel features an alphanumeric LCD display, a full numeric keypad for parameter entry, and LED indicators for mode and alarm status.
Specifications & What's Included
- Make: Newtec CY
- Model: DVB RX 2060
- Type: NTC/2060/Lx
- Signal standard: DVB-S / DVB+8
- Modulation: QPSK
- Interface option: Interf. 33271AE
- Output interface: SP/RS422 (rear DB25-style connector)
- IF input: BNC connector (rear panel)
- Power input: IEC AC inlet, 90–260VAC, 50/60Hz (wide-range universal)
- Power switch: rear-panel ON/OFF toggle
- Monitor & Control port: DB9 RS-232 (labeled MON & CONTRL)
- Alarm port: DB9 (rear panel)
- Additional rear connectors: 2× BNC (OUT 1 / OUT 2)
- Front panel: LCD alphanumeric display, numeric keypad with function keys
- Mode indicators: DEMOD, DECOD, DEFR (LED)
- Alarm indicators: ACT, MEM, TEST (LED)
- Cooling: dual rear-mounted cooling fans
- Form factor: 2U rackmount with rack ears
- Firmware visible on display: L-DVB+8 Ver v1.34, 17 Mar 1998
- QC PASSED sticker visible on rear panel
Applications
DVB satellite demodulators like the Newtec RX 2060 are core receive-side equipment in satellite ground stations, broadcast headends, teleports, and cable/DTH distribution systems. They accept a downconverted L-band IF signal from a block downconverter (BDC) or LNB, recover the QPSK-modulated carrier, and output the decoded MPEG transport stream for downstream IRDs, encoders, or distribution equipment. The DVB+8 designation refers to Newtec's DVB-S implementation with enhanced forward error correction and processing. Equipment of this generation — mid-to-late 1990s professional broadcast satellite gear — was widely deployed in satellite news gathering (SNG), network distribution, and permanent teleport receive installations throughout that era. The RX 2060 is suited for legacy receive-chain maintenance, lab testing of DVB-S signal chains, broadcast archive environments, and operators still running compatible Newtec satellite infrastructure.

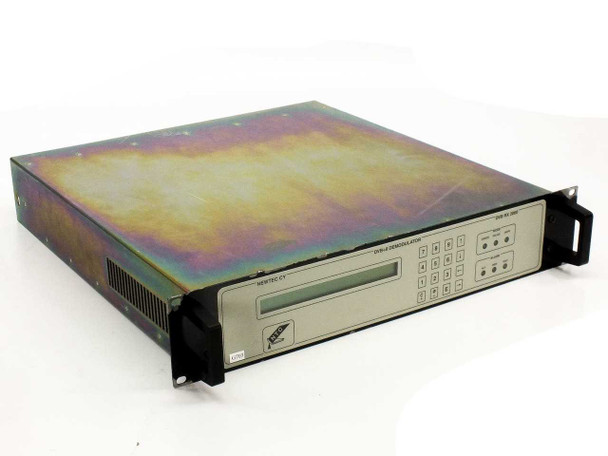

This Newtec DVB RX 2060 DVB+8 Satellite Demodulator powers on, the display lights up, and the unit passes its boot-up self-test. All front-panel buttons appear to work. We are not able to test it further at our facility, so it is being sold as inspected to that point. The chassis top shows notable iridescent discoloration and oxidation, which is cosmetic only. The front panel, keypad, and LCD are in good shape. Rear connectors and ports appear intact with no visible damage. Please review our photo set for a full look at the cosmetic condition and contact us with any questions.
Warranty Information
Additional Information
Brand: |
Newtec |
Model: |
DVB RX 2060 |
MPN: |
NTC/2060/Lx |
Type: |
DVB+8 Satellite Demodulator |
SKU: |
50306 |
Form Factor: |
Rackmount (2U) |
Power Requirements: |
90-260VAC, 50/60Hz |
Interface Option: |
Interf. 33271AE |
Output Interface: |
SP/RS422 |
IF Input Connector: |
BNC |
Monitor & Control Port: |
DB9 RS-232 (MON & CONTRL) |
Alarm Port: |
DB9 |
Signal Standard: |
DVB-S / DVB+8 |
Modulation: |
QPSK |
Front Panel Display: |
LCD alphanumeric |
Mode Indicators: |
DEMOD, DECOD, DEFR |
Alarm Indicators: |
ACT, MEM, TEST |
Cooling: |
Dual rear-mounted fans |
Condition: |
Used – Inspected and Tested |
Country/Region of Manufacture: |
Belgium |
Seller Notes: |
Unit powers on, passes boot self-test; all front-panel buttons functional. |
Condition Notes: |
Newtec DVB RX 2060 DVB+8 Satellite Demodulator powers on, display lights up, passes boot-up self-test. All front-panel buttons work. Not tested beyond that at our facility. Chassis shows cosmetic discoloration. Sold as inspected. |
