Description
Newport TSX-1D Dovetail Linear Stage 3x3 In 1/2 In Travel Optical Positioning

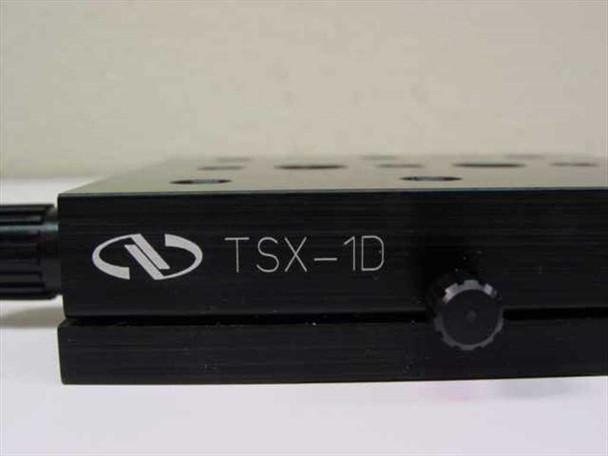

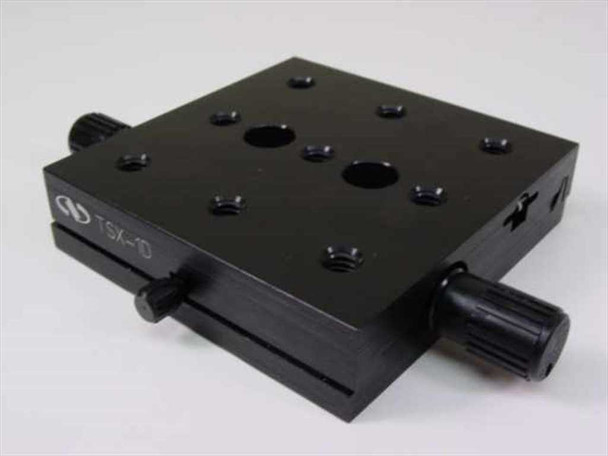

The Newport TSX-1D is a compact, single-axis dovetail linear translation stage with a 3 x 3 inch platform and 1/2 inch (12.7 mm) of travel. Built from black anodized aluminum, it features a precision-machined dovetail bearing mechanism driven by a manually operated micrometer knob on each side. The top platform includes a grid of threaded mounting holes and two larger center holes for flexible load attachment.
Specifications & What's Included
- Model: Newport TSX-1D
- Stage type: Single-axis dovetail linear translation stage
- Platform size: 3 in x 3 in (76 mm x 76 mm)
- Stage height: 3/4 inch
- Travel range: 1/2 inch (12.7 mm)
- Drive: Manual adjustment knobs (both sides)
- Bearing type: Dovetail slide
- Construction: Black anodized aluminum
- Top surface: Grid of threaded mounting holes plus two large center through-holes
- Includes: Stage only — no additional accessories
Applications
Dovetail linear stages like the Newport TSX-1D are standard positioning components in optical laboratory setups, used to translate optical elements, detectors, fiber holders, or small loads with smooth and repeatable motion. The TSX series from Newport is designed for use on optical breadboards and rail systems, commonly found in photonics research, laser alignment, spectroscopy, imaging, and general optics lab environments. The dovetail design provides a compact and rigid platform well suited for applications requiring modest travel with stable, low-profile positioning. These stages are also used in semiconductor inspection setups, metrology, and any bench-level experiment requiring precise one-dimensional linear adjustment.
This Newport TSX-1D Dovetail Linear Stage is in new condition. It shows no signs of use or wear and appears unused. The black anodized aluminum body, mounting surfaces, adjustment knobs, and dovetail mechanism all look clean and undamaged. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Newport |
Model: |
TSX-1D |
MPN: |
TSX-1D |
Type: |
Dovetail Linear Translation Stage |
SKU: |
26724 |
Travel Range: |
1/2 Inch (0.5 in) |
Platform Size: |
3 in x 3 in |
Stage Height: |
3/4 Inch |
Drive Type: |
Manual Micrometer / Knob |
Slide Type: |
Dovetail |
Axes: |
1 (Single Axis) |
Material: |
Aluminum (Black Anodized) |
Mounting: |
Threaded Mounting Holes on Top Platform |
Compatible With: |
Newport Optical Breadboards and Rails |
Country/Region of Manufacture: |
United States |
Form Factor: |
Benchtop / Optical Bench |
Seller Notes: |
Stage only — no additional accessories included. |
Condition Notes: |
This Newport TSX-1D Dovetail Linear Stage is in new condition with no signs of use or wear. The body, mounting surfaces, knobs, and dovetail mechanism are all clean and undamaged. |
