Newport 9064-X Linear Translation Stage Triple Divide 1.1 in Travel w/

Newport 9064-X Linear Translation Stage Triple Divide 1.1 in Travel w/ Micrometer

The Newport 9064-X is a compact X-axis linear translation stage from Newport's New Focus Triple Divide series. It uses the e-z-Trac crossed-roller bearing system to deliver smooth, low-profile linear motion with a 1.1 in. (27.9 mm) travel range. The stage ships with a micrometer actuator installed and provides coarse Y adjustment through the e-z-Trac design, allowing precise positioning of an optic or component in the beam path. The platform is convertible between X and Z configurations, making it adaptable to a range of optical setups.

Specifications & What's Included

• Model: Newport 9064-X (New Focus Triple Divide series)
• Configuration: X-axis translation stage (convertible to Z)
• Travel range: 1.1 in. (27.9 mm)
• Motion system: e-z-Trac crossed-roller bearing, low-profile design
• Actuator: Micrometer — included and installed
• Trac Lock lever: present on stage body for position locking
• Mounting threads: 8-32 and 1/4-20

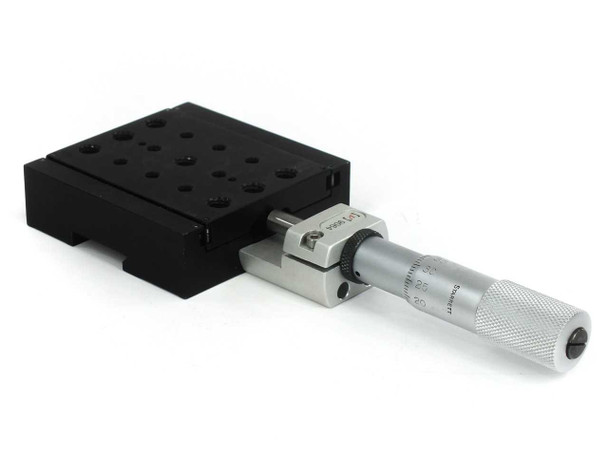

• Body material: Black anodized aluminum

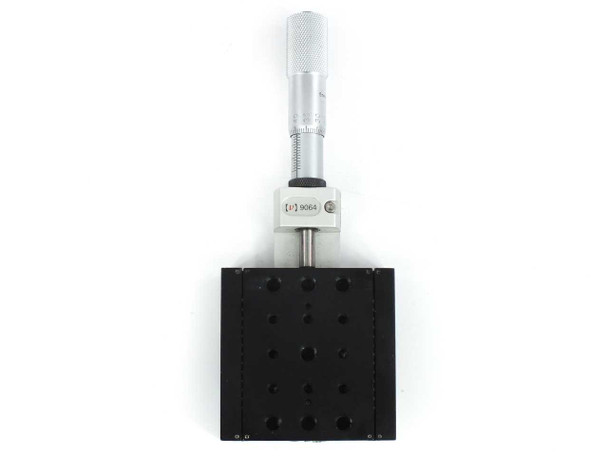

• Top surface: Grid of tapped mounting holes for optical component mounting
• Included: Stage with micrometer actuator
• Not included: Additional accessories (post mounts, brackets, etc.)

Applications
