Neico Microwave 20481-1 WR62 RG91 Waveguide Offset Port Assembly 12-18 GHz

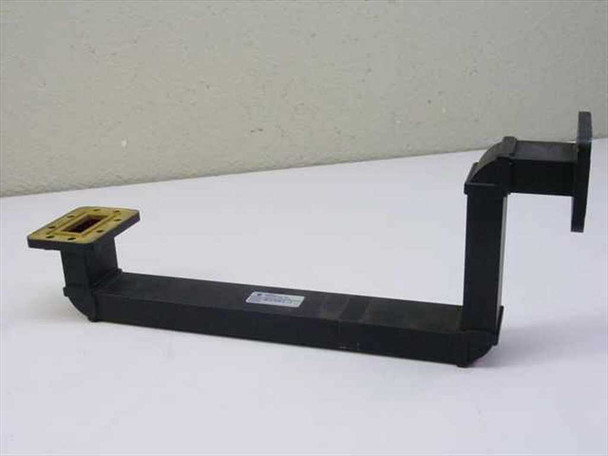

WR62 waveguide offset port assembly for Ku-band microwave signal routing. Two ports configured offset—one pointing up, one pointing right—with UG-419/U style flat flanges.
Specifications & What's Included
- Model: Neico Microwave 20481-1
- Waveguide Size: WR62 (RG91/U)
- Frequency Range: 12–18 GHz (Ku-Band)
- Port Configuration: Offset (2 ports)
- Flange Type: UG-419/U style flat flange
- Inner Dimensions: 0.622 in × 0.311 in (WR62 standard)
- Material: Black-coated body; brass/copper flange faces
- Waveguide assembly only; no accessories included
Applications
Offset waveguide assemblies are used in Ku-band microwave systems for signal routing and distribution in radar and satellite communications equipment. The offset port configuration allows signal transitions between different physical orientations without requiring separate bends or elbows. These assemblies were common in commercial and military satcom installations and continue to appear in test, repair, and retrofit applications.
Condition: Used

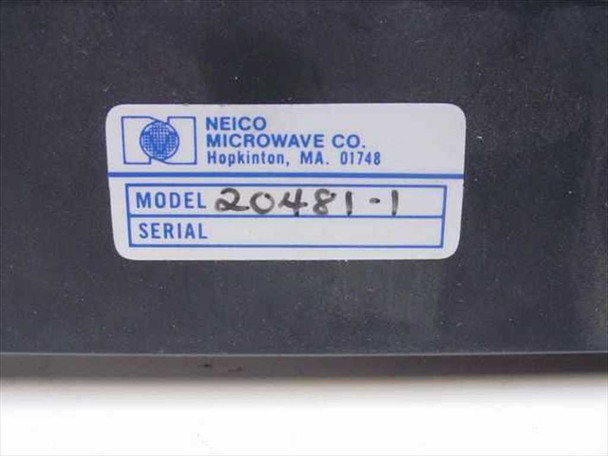

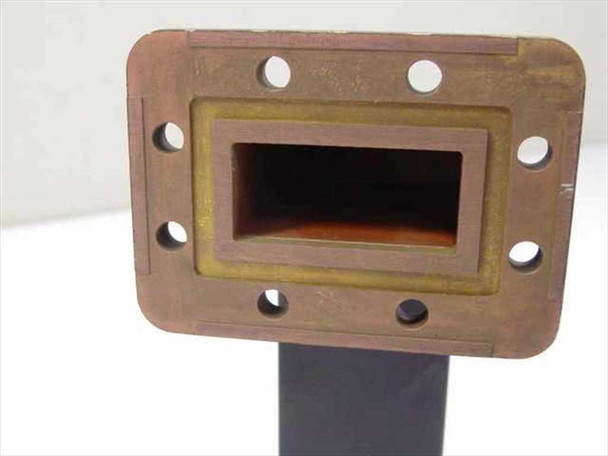

This Neico Microwave Co. 20481-1 WR62/RG91 offset waveguide assembly has been inspected and is in good used condition. The black body is solid and intact with no visible cracks or damage. The flange faces show some oxidation and surface discoloration typical of age and prior use, as visible in the photos, but the mating surfaces appear serviceable. The serial number field on the label is blank, indicating this unit may have been a spare or unfielded stock. No accessories or additional hardware are included. Please view our photo set and contact us if you have any questions.
This Neico Microwave Co. 20481-1 WR62/RG91 offset waveguide assembly has been inspected and is in good used condition. The black body is solid and intact with no visible cracks or damage. The flange faces show some oxidation and surface discoloration typical of age and prior use, as visible in the photos, but the mating surfaces appear serviceable. The serial number field on the label is blank, indicating this unit may have been a spare or unfielded stock. No accessories or additional hardware are included. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Neico Microwave Co. |
Model: |
20481-1 |
MPN: |
20481-1 |
Type: |
Offset Port Waveguide Assembly |
SKU: |
31731 |
Waveguide Size: |
WR62 (RG91/U) |
Frequency Range: |
12–18 GHz (Ku-Band) |
Port Configuration: |
Offset — one port up, one port right |
Flange Type: |
UG-419/U style flat flange (standard WR62) |
Number of Ports: |
2 |
Inner Dimensions: |
0.622 in x 0.311 in (WR62 standard) |
Material / Finish: |
Black-coated body, brass/copper flange faces |
Application: |
Ku-band microwave signal routing, radar, satcom |
Condition: |
Used – Inspected |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Waveguide assembly only. No additional accessories included. |
Condition Notes: |
Neico Microwave 20481-1 WR62/RG91 offset waveguide assembly. Used, inspected. Body is solid; flange faces show age-related oxidation typical of prior use. No accessories included. |
