Description
Micro-Coax PO.9981.K001 WR-62 Waveguide Delay Line 12.4-18GHz Ku-Band 10ft
The Micro-Coax Components PO.9981.K001 is a flexible rectangular waveguide delay line designed for operation across the full Ku-band frequency range of 12.4 to 18.0 GHz. Manufactured by Micro-Coax Components Inc. of Collegeville, Pennsylvania, it uses WR-62 standard waveguide sizing and spans 10 feet in overall length, providing the propagation delay and signal routing flexibility required in compact or space-constrained microwave assemblies. The unit terminates at each end with a standard four-hole WR-62 rectangular flange for direct bolted connection to mating waveguide hardware.
Specifications & What's Included
- Manufacturer: Micro-Coax Components Inc., Collegeville, PA
- Part Number: PO.9981.K001
- MFR Code: 64639
- Type: Flexible rectangular waveguide delay line
- Waveguide Size: WR-62
- Frequency Range: 12.4 – 18.0 GHz (Ku-band)
- Overall Length: 10 ft (approx. 3.05 m)
- Internal (aperture) dimensions: 0.622 x 0.311 in (15.80 x 7.90 mm)
- Terminations: WR-62 rectangular flange, both ends — four-hole bolt pattern
- Country of Manufacture: United States
- Included: Waveguide delay line only
Applications
WR-62 flexible waveguide delay lines operating in the 12.4–18 GHz Ku-band are used in a wide range of military, defense, and commercial microwave systems where low-loss signal routing and controlled propagation delay are required. Typical platforms and applications include airborne and ground-based radar systems, electronic countermeasures (ECM) systems, microwave altimeters, satellite ground station equipment, power amplifier chains for cellular base stations, and land mobile radio (LMR) transmitters and receivers. The flexible construction allows for routing around obstructions and absorbing mechanical vibration in installed systems — a common requirement in avionic and vehicle-mounted installations. Surplus Ku-band waveguide delay lines of this type are frequently sought for system repair, prototype development, and test-bench microwave assemblies.

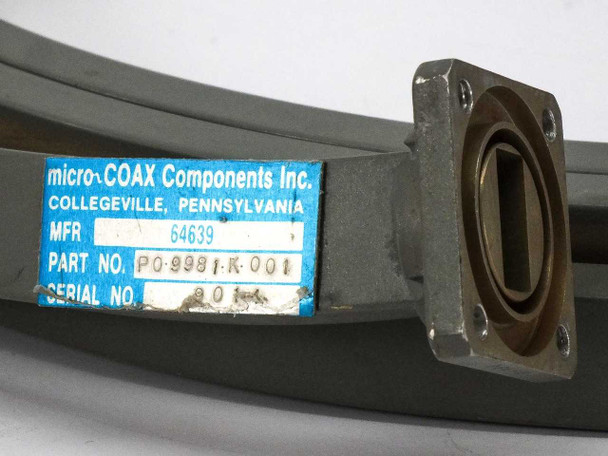

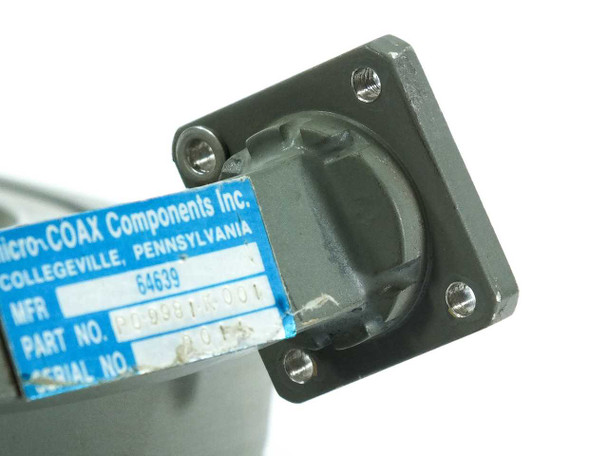

This Micro-Coax Components PO.9981.K001 WR-62 Ku-Band Waveguide Delay Line (12.4–18 GHz, 10 ft) is in used condition and has not been tested at our facility. The flexible waveguide body shows light surface wear consistent with prior use, and both rectangular WR-62 flanges are present and visually undamaged with clean, unobstructed bolt-hole patterns and internal apertures. The identification label (Part No. PO.9981.K001, MFR 64639) is present and legible. No functionality is implied or guaranteed; please review photos and contact us with any questions.
Warranty Information
Additional Information
Brand: |
Micro-Coax Components Inc. |
Model: |
PO.9981.K001 |
MPN: |
PO.9981.K001 |
Type: |
Flexible Waveguide Delay Line |
SKU: |
50260 |
Waveguide Size: |
WR-62 |
Frequency Range: |
12.4 – 18.0 GHz |
Frequency Band: |
Ku-Band |
Length: |
10 ft (approximately 3.05 m) |
Internal Dimensions: |
0.622 x 0.311 in (15.80 x 7.90 mm) |
Connector / Flange Type: |
Rectangular waveguide flange (WR-62) |
MFR Code: |
64639 |
Country/Region of Manufacture: |
United States |
Applications: |
Radar, ECM, microwave altimeters, cellular amplifiers, LMR |
Condition: |
Used – Untested / As-Is |
Seller Notes: |
Sold as-is, untested. Please view photos and contact us with questions. |
Condition Notes: |
Used Micro-Coax PO.9981.K001 WR-62 Waveguide Delay Line. Light surface wear, flanges intact, label legible. Untested; sold as-is. |
