Nedap

Nedap 9833358 AF 81044 Switching Power Supply 100-240V +12V +5V Large Form

(No reviews yet) Write a Review
SKU:
34613
MPN:
9833358
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
11.00 LBS
Shipping:
Calculated at Checkout

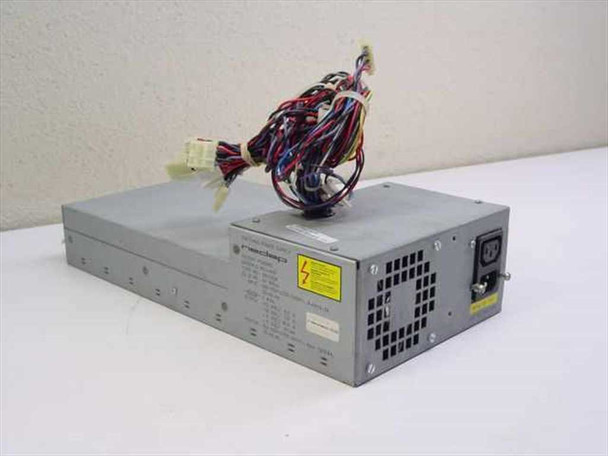

  • Nedap 9833358 AF 81044 switching power supply – three-quarter front view showing metal enclosure and output wiring harness
  • Nedap 9833358 AF 81044 switching power supply – side and top view showing large form factor chassis and ventilation slots
  • Nedap 9833358 AF 81044 switching power supply – specification label showing input 100-240V, outputs +12V/+5V/-12V and ICL ID AF 81044
  • Nedap 9833358 AF 81044 switching power supply – close-up of multi-pin proprietary output connector harness
$100.00
Was: $200.00
Current Stock: 1

Sold Out

Description

Nedap 9833358 AF 81044 Switching Power Supply 100-240V +12V +5V Large Form Factor

Industrial-grade switching power supply manufactured by Nedap. Provides multiple regulated DC output voltages from standard AC mains input.

Specifications & What's Included

  • Input: 100-240V AC, 50-60 Hz
  • Output: +12V @ 8.0A, -12V @ 3.0A, +5V @ 30.0A, +5V Monitor @ 0.1mA
  • Large form factor OEM design
  • Proprietary multi-pin output harness attached
  • Manufactured in Netherlands
  • Patent pending design

Applications

Switching power supplies of this type are commonly found in industrial control systems, telecommunications equipment, and networking infrastructure from the 1990s-2000s era. The multiple output rails support mixed-voltage requirements typical of legacy telecom and industrial automation platforms. Large form factor units were standard in rack-mount and cabinet-mount applications.

Please note: We may have multiple units of this item in stock. The unit you receive may vary slightly from the one shown in the photos. All units are functionally equivalent and inspected to the same standard.

Condition: Used
This Nedap 9833358 (AF 81044) switching power supply has been tested at our facility and confirmed to be in good working order. The metal chassis is in good used condition with light surface scuffing consistent with prior deployment; no dents or significant damage are visible. The output wiring harness and multi-pin connectors are intact and present. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Nedap
Model:
9833358
Secondary Model:
AF 81044
MPN:
9833358
SKU:
34613
Condition:
Used – Inspected and Tested
Seller Notes:
Unit only; multi-pin output harness attached
Country of Manufacture:
Netherlands
Form Factor:
Large Form Factor / OEM
Power Requirements:
100-115V / 220-240V AC, 50-60 Hz, 8-6A / 4-3A
Output Voltage 1:
+12 VDC @ 8.0 A
Output Voltage 2:
-12 VDC @ 3.0 A
Output Voltage 3:
+5 VDC @ 30.0 A
Output Voltage 4:
+5 VDC Monitor @ 0.1 mA
Monitor Input:
100-115V / 220-240V AC, max 1.6 / 0.8 A, 50-60 Hz
Connector Type:
Proprietary multi-pin harness connectors
Type:
Switching Power Supply
Certifications:
Patent Pending (label notation)
Condition Notes:
Nedap 9833358 AF 81044 switching power supply. Tested and confirmed in working order. Good used condition with light surface scuffing. Output harness and connectors intact. Please view photos and contact us with questions.
View AllClose

Related Products

Related Products

IBM 90X9107 225W Power Supply – right-side three-quarter view showing fan, vents, and orange output connector IBM 90X9107 power supply specification label – showing input 100–240V, output +5V/27.25A +12V/7A -12V/0.39A, 225W wattage, UL and CSA marks
Add to Cart
Quick view

IBM 90X9107 225W Power Supply IBM 8560 PS/2 100-240V +5V +12V -12V

IBM

$90.00
Was: $175.00
IBM 90X9107 225W Power Supply IBM 8560 PS/2 100-240V +5V +12V -12V This is a 225-watt power supply unit for the IBM 8560 PS/2 system. It converts AC input to multiple DC voltage outputs required for...
12078
SKU:
12078
Availability:
Usually ships within 1–2 business days.
Weight:
15.00 LBS
Brand:
IBM
Model:
90X9107
MPN:
90X9107
Secondary Model:
101-8073-01
SKU:
12078
Condition:
Used – Inspected and Tested
Seller Notes:
Power supply unit only; no mounting hardware included
Compatible With:
IBM 8560 PS/2
Form Factor:
Proprietary / Non-Standard Desktop
Power Requirements:
100–125V ~ 6.0A or 200–240V ~ 3.0A, 50/60Hz
Output Voltage 1:
+5.0V @ 27.25A
Output Voltage 2:
+12.0V @ 7.0A
Output Voltage 3:
-12.0V @ 0.39A
Output Wattage:
225W
Certifications:
UL, CSA
Country of Manufacture:
Mexico
Condition Notes:
This IBM 90X9107 225W PS/2 8560 power supply has been tested and is in working order. Shows typical used wear — light scratches on housing, some dust in vents. Output connector and harness intact. Please contact us with any questions.

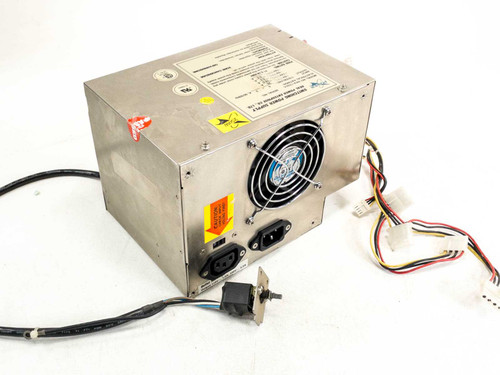

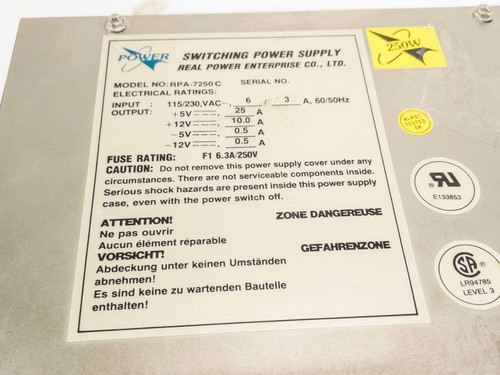

Real Power RPA-7250C 250W switching power supply — rear and side view showing IEC AC inlet, cooling fan, power toggle switch, and output cable harness Real Power RPA-7250C specification label showing model number, input 115/230VAC, output rails +5V 25A +12V 10A -5V -12V 0.5A, fuse rating FI 6.3A 250V, and UL/CSA certifications
