Description
IBM 90X9107 225W Power Supply IBM 8560 PS/2 100-240V +5V +12V -12V
This is a 225-watt power supply unit for the IBM 8560 PS/2 system. It converts AC input to multiple DC voltage outputs required for the host computer and peripheral devices.
Specifications & What's Included
- Model: IBM 90X9107 (Secondary: 101-8073-01)
- Output: 225W total
- Input: 100–125V ~ 6.0A or 200–240V ~ 3.0A, 50/60Hz
- Outputs: +5.0V @ 27.25A, +12.0V @ 7.0A, -12.0V @ 0.39A
- Connector: Proprietary 15-pin
- Certifications: UL, CSA
- Power supply unit only; no mounting hardware included
Applications
This supply was used in IBM 8560 PS/2 desktop systems common in business computing environments during the 1980s and early 1990s. It provides the regulated voltage rails necessary for processor, memory, and expansion card operation in these systems.
Please note: We may have multiple units of this item in stock. The unit you receive may vary slightly from the one shown in the photos. All units are functionally equivalent and inspected to the same standard.
Condition: Used

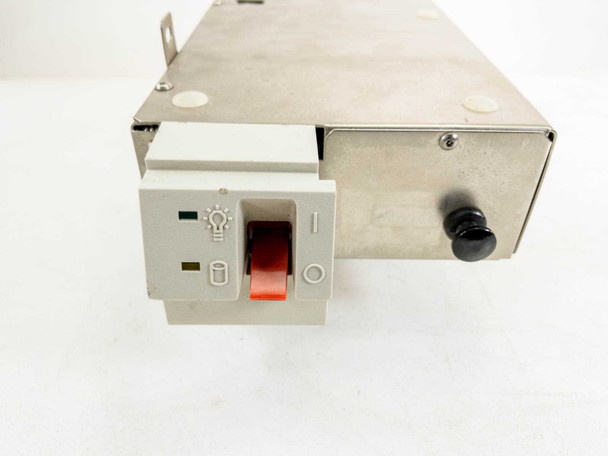

This IBM 90X9107 225W Power Supply for the IBM 8560 PS/2 has been tested and is in working order. The unit is in typical used condition for its age — the metal housing shows light surface scratches and general handling marks consistent with prior service use, and some dust is visible inside the rear ventilation louvers. The front panel power switch and LED indicators are intact, and the proprietary 15-pin output connector and wiring harness are present and undamaged. The P3 and P4 auxiliary connectors are also present. The QC test label visible on the side panel shows entries for Electrical, Hi-Pot, Continuity, Visual, and Burn-In test levels. Please view our photo set and contact us if you have any questions.
This IBM 90X9107 225W Power Supply for the IBM 8560 PS/2 has been tested and is in working order. The unit is in typical used condition for its age — the metal housing shows light surface scratches and general handling marks consistent with prior service use, and some dust is visible inside the rear ventilation louvers. The front panel power switch and LED indicators are intact, and the proprietary 15-pin output connector and wiring harness are present and undamaged. The P3 and P4 auxiliary connectors are also present. The QC test label visible on the side panel shows entries for Electrical, Hi-Pot, Continuity, Visual, and Burn-In test levels. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
IBM |
Model: |
90X9107 |
MPN: |
90X9107 |
Secondary Model: |
101-8073-01 |
SKU: |
12078 |
Condition: |
Used – Inspected and Tested |
Seller Notes: |
Power supply unit only; no mounting hardware included |
Compatible With: |
IBM 8560 PS/2 |
Form Factor: |
Proprietary / Non-Standard Desktop |
Power Requirements: |
100–125V ~ 6.0A or 200–240V ~ 3.0A, 50/60Hz |
Output Voltage 1: |
+5.0V @ 27.25A |
Output Voltage 2: |
+12.0V @ 7.0A |
Output Voltage 3: |
-12.0V @ 0.39A |
Output Wattage: |
225W |
Certifications: |
UL, CSA |
Country of Manufacture: |
Mexico |
Condition Notes: |
This IBM 90X9107 225W PS/2 8560 power supply has been tested and is in working order. Shows typical used wear — light scratches on housing, some dust in vents. Output connector and harness intact. Please contact us with any questions. |
