NEC

NEC PN-4COTB Four Circuit CO Trunk Card Disconnect Supervision NEAX2000 150100

(No reviews yet) Write a Review
SKU:
24153
MPN:
4COTB
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
3.00 LBS
Shipping:
Calculated at Checkout
  • NEC PN-4COTB Four Circuit CO Trunk Card – component side top view showing relays, transformers, and edge connector

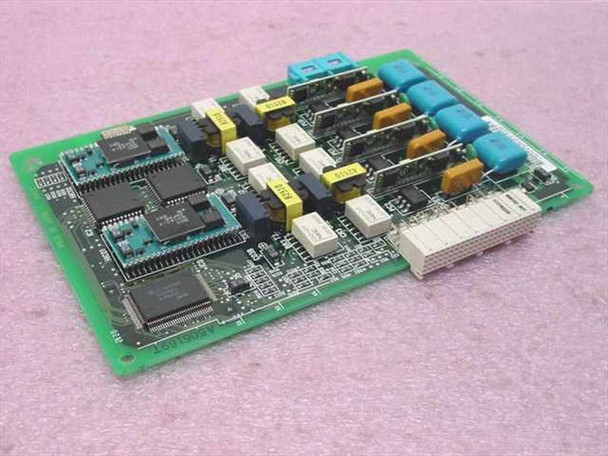

  • NEC PN-4COTB CO Trunk Card – reverse angle showing full PCB layout with NEC ICs, relays, and white edge connector
  • NEC PN-4COTB board close-up showing PN-4COTB silkscreen, NEC 8H-631A IC, BL0–BL3 jumper headers, and C00 connector label
$18.00
Was: $40.00
Current Stock: 7

Sold Out

Description

NEC PN-4COTB Four Circuit CO Trunk Card Disconnect Supervision NEAX2000 150100

This is a Central Office trunk card module designed for the NEC NEAX2000 Integrated Voice Server. It provides four CO trunk circuits with disconnect supervision capability.

Specifications & What's Included

  • Brand: NEC
  • Model: PN-4COTB
  • Part Number: 150100
  • Type: Central Office Trunk Card
  • Circuits: 4
  • Compatible System: NEC NEAX2000 IVS
  • Feature: Disconnect Supervision
  • Manufactured in Japan

Applications

CO trunk cards like this were used in enterprise telephone systems to connect PBX installations to public switched telephone network (PSTN) lines. The PN-4COTB is designed for the NEAX2000 platform, which served mid-to-large organizations requiring integrated voice communications. The disconnect supervision feature monitors line status and call termination on trunk circuits. This card type was standard equipment in telecommunications installations through the 2000s and 2010s.

Condition: Used
This NEC PN-4COTB Four Circuit CO Trunk Card (P/N 150100) has been inspected and is in good condition. The PCB shows normal handling wear consistent with prior installation in a NEC NEAX2000 system. No visible damage, broken traces, or missing components. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
NEC
Model:
PN-4COTB
MPN:
150100
Type:
Central Office Trunk Card
SKU:
24153
Number of Circuits:
4
Compatible With:
NEC NEAX2000 Integrated Voice Server (IVS)
Features:
Disconnect Supervision
Form Factor:
Card / Module
Interface Type:
Central Office (CO) Trunk
Country/Region of Manufacture:
Japan
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Pulled from NEC NEAX2000 IVS system; P/N 150100 printed on board
Condition Notes:
NEC PN-4COTB CO Trunk Card P/N 150100 inspected and in good condition. Normal handling wear from prior NEAX2000 installation. No damage or missing components observed.
