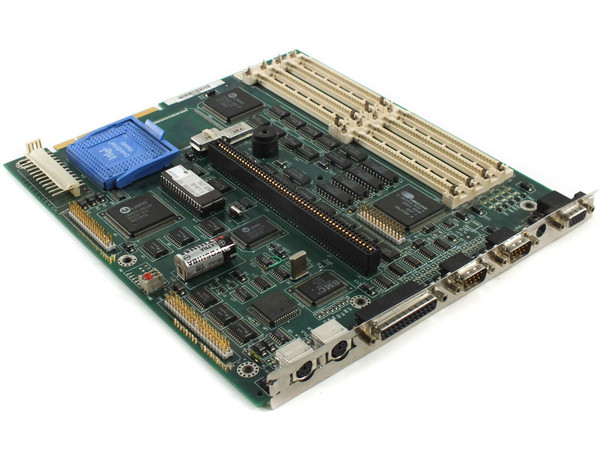

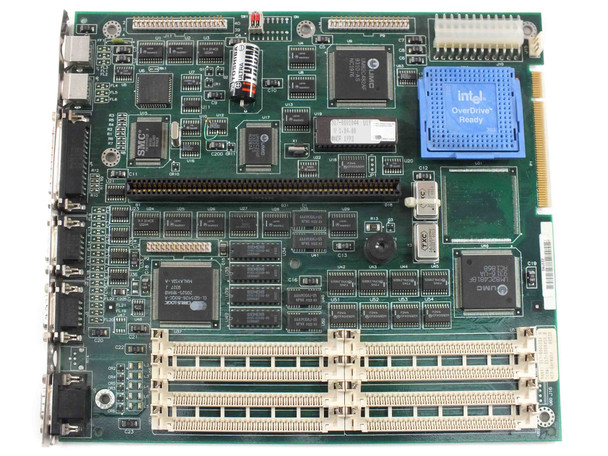

NCR 517-0001001 System Board NCR 3230 Computer ISA Intel OverDrive UMC Chipset
System board (motherboard) for the NCR 3230 computer. This is the main circuit board that provided processing and peripheral connectivity in the host system.
Specifications & What's Included
- Model: NCR 517-0001001 (secondary: 517-0001001 A)
- Chipset: UMC UM82C481BF
- CPU Socket: Intel OverDrive Ready
- Expansion: Multiple ISA slots (approximately 5-6)
- Connectors: Serial (DB9), Parallel (DB25), PS/2 keyboard and mouse
- Form Factor: Proprietary full-size edge-connector board
- Manufactured: Germany, circa 1993
Applications
This board was designed for the NCR 3230 computer, a system used in commercial and industrial environments during the early 1990s. The ISA slot configuration and serial/parallel connectivity supported typical peripherals and network cards of that era. Systems of this type were deployed for point-of-sale, data entry, and light industrial applications.
Condition: Used
This NCR 517-0001001 system board for the NCR 3230 computer has been inspected and powers on with the proper components installed — it beeps through POST, confirming basic power and CPU activity. However, we were unable to get it to produce video output or complete a full POST to BIOS during our testing. It is being sold as a used board in this known state; the cosmetic condition of the PCB is good with no visible physical damage to the board. Please review our photos carefully and contact us with any questions before purchasing.
This NCR 517-0001001 system board for the NCR 3230 computer has been inspected and powers on with the proper components installed — it beeps through POST, confirming basic power and CPU activity. However, we were unable to get it to produce video output or complete a full POST to BIOS during our testing. It is being sold as a used board in this known state; the cosmetic condition of the PCB is good with no visible physical damage to the board. Please review our photos carefully and contact us with any questions before purchasing.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
NCR |
Model: |
517-0001001 |
MPN: |
517-0001001 |
Secondary Model: |
517-0001001 A |
Schematic Number: |
517-0000459 B |
Type: |
System Board / Motherboard |
SKU: |
27239 |
Compatible With: |
NCR 3230 Computer |
Chipset: |

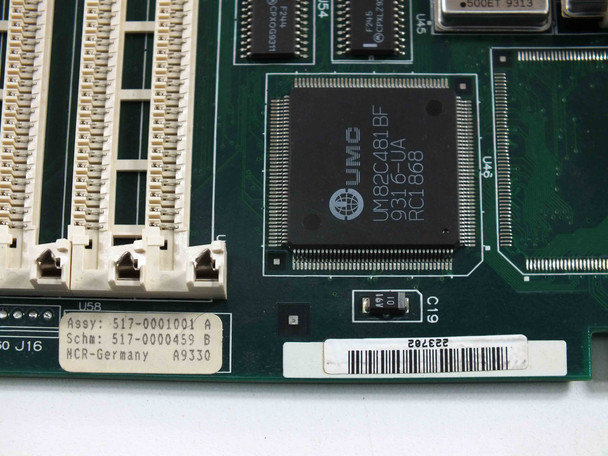

UMC UM82C481BF (9316-UA RC1868) |
CPU Socket: |
Intel OverDrive Ready |
Expansion Slots: |
Multiple ISA slots (visible: approx. 5-6 ISA) |
Form Factor: |
Proprietary (full-size, edge-connector board) |
Ports / Connectors: |
Serial (DB9), Parallel (DB25), PS/2 keyboard, mouse |
Country/Region of Manufacture: |
Germany |
Manufacture Date Code: |
A9330 (approx. 1993) |
Condition: |
Used – Powers on, beeps; no video POST |
Seller Notes: |
Board only; powers on and beeps with proper components but does not produce video POST to BIOS. |
Condition Notes: |
NCR 517-0001001 system board for NCR 3230. Inspected; powers on and beeps with proper components but does not produce video POST to BIOS. Good cosmetic condition, no visible physical damage. Sold as-is in this known state. |
