Description
National Instruments AT-MIO-64F-5 320487-01 DAQ PC AT User Manual Feb 1994

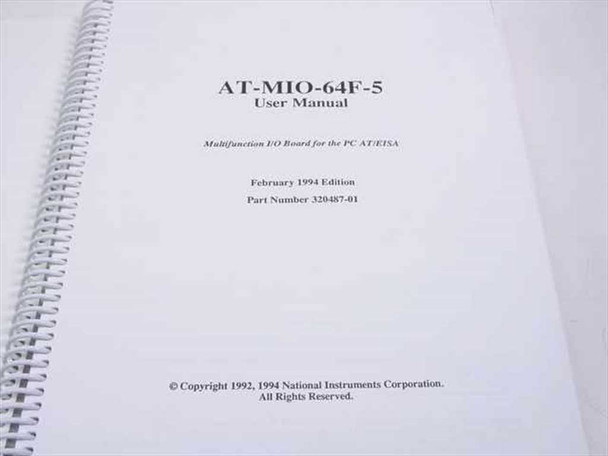

This is the original printed User Manual for the National Instruments AT-MIO-64F-5 Multifunction I/O Board, a DAQ (data acquisition) card designed for use in PC AT and EISA bus computers. Published in February 1994 by National Instruments Corporation, this is Part Number 320487-01 and covers the full operation and configuration of the AT-MIO-64F-5 board in a spiral-bound printed format.
Specifications & What's Included
- Manufacturer: National Instruments
- For Model: AT-MIO-64F-5 Multifunction I/O Board
- Document Type: User Manual
- Publication / Part Number: 320487-01
- Edition: February 1994
- Platform Coverage: PC AT / EISA bus
- Subject: DAQ (Data Acquisition) — Multifunction I/O Board configuration and operation
- Format: Spiral-bound, printed
- Language: English
- Copyright: 1992, 1994 National Instruments Corporation
Applications
The National Instruments AT-MIO-64F-5 is a multifunction analog and digital I/O board from NI's AT Series DAQ product line, designed to plug into the ISA (PC AT) or EISA expansion bus slots common in desktop PCs of the early-to-mid 1990s. These boards are used for data acquisition tasks including analog input (A/D conversion), analog output (D/A conversion), and digital I/O — typical applications include laboratory instrumentation, industrial process monitoring, signal analysis, and automated test systems. The AT-MIO-64F-5 specifically supports 64 single-ended (or 32 differential) analog input channels at 5V range, making it well-suited for high-channel-count measurement tasks. NI DAQ boards of this generation were commonly programmed using National Instruments' NI-DAQ driver software and integrated with LabVIEW or LabWindows environments. This manual is the primary reference for engineers and technicians setting up, configuring, or servicing the AT-MIO-64F-5 board, covering signal connections, jumper configuration, software programming, and specifications. Original printed manuals for this era of NI DAQ hardware remain in demand among labs and facilities still running legacy PC AT-based data acquisition systems.
This National Instruments AT-MIO-64F-5 DAQ User Manual (Part No. 320487-01, February 1994 edition) has been inspected and is in good used condition. The spiral binding is intact and the cover shows light shelf wear consistent with age. All pages appear present and are clean and legible. No significant markings, highlighting, or damage noted. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
National Instruments |
Model: |
AT-MIO-64F-5 |
MPN: |
320487-01 |
Type: |
User Manual |
SKU: |
28906 |
Document Type: |
User Manual |
For Make/Brand: |
National Instruments |
For Model: |
AT-MIO-64F-5 |
Publication Number: |
320487-01 |
Edition: |
February 1994 |
Language: |
English |
Format: |
Printed / Spiral-Bound |
Compatible With: |
NI AT-MIO-64F-5 Multifunction I/O Board |
Platform: |
PC AT / EISA |
Subject: |
DAQ Multifunction I/O Board |
Seller Notes: |
Original printed spiral-bound user manual, February 1994 edition. |
Country/Region of Manufacture: |
United States |
Condition Notes: |
National Instruments AT-MIO-64F-5 DAQ User Manual 320487-01, Feb 1994 edition. Inspected and in good used condition. Spiral binding intact, pages clean and legible, light shelf wear only. |
