Nanosolar

Nanosolar Nanocell 2.6W Flexible CIGS Solar Cell Raw Uncoated Aluminum Lot 10

(No reviews yet) Write a Review
SKU:
52146
MPN:
Nanocell
Condition:
New
Availability:
Usually ships within 1–2 business days.
Weight:
0.60 LBS
Shipping:
Calculated at Checkout

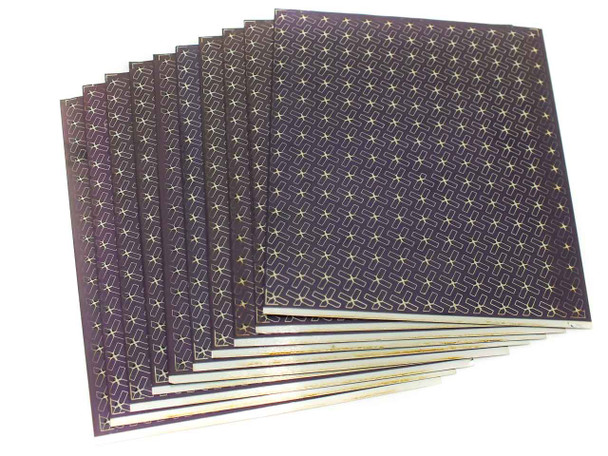

  • Nanosolar Nanocell flexible CIGS solar cells — lot of 10 fanned out, showing deep purple patterned CIGS active layer on front surface

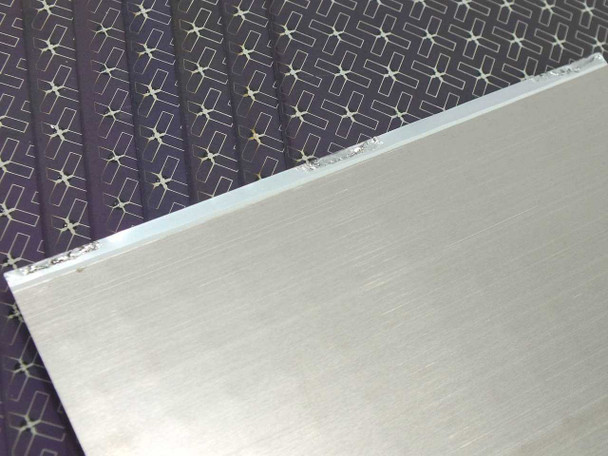

  • Close-up edge view of Nanosolar Nanocell CIGS solar cell showing thin aluminum base substrate and CIGS active layer thickness
$32.00
Was: $60.00
Current Stock: 1

Sold Out

Description

Nanosolar Nanocell 2.6W Flexible CIGS Solar Cell Raw Uncoated Aluminum Lot 10

This listing is for a lot of 10 Nanosolar Nanocell flexible CIGS (Copper Indium Gallium Selenide) thin-film solar cells totaling 26 watts of rated output. Each cell is built on a semi-rigid, semi-flexible nickel-coated aluminum substrate and is supplied raw and uncoated — no protective encapsulant has been applied. These cells came from Nanosolar's final experimental production runs at their California facility before the company was liquidated in September–October 2013, making them genuine new old stock that has not been commercially available.

Specifications & What's Included

  • Lot quantity: 10 cells
  • Total rated power: 26 Watts (10 × 2.6W per cell)
  • Rated power per cell: 2.6 Watts
  • Cell technology: CIGS thin-film (Copper Indium Gallium Selenide)
  • Vmpp (voltage at maximum power): 0.45 V
  • Impp (current at maximum power): 5.8 A
  • Voc (open circuit voltage): 0.61 V
  • Isc (short circuit current): 6.7 A
  • Cell length: 165 mm (6.5 in)
  • Cell width: 135 mm (5.3 in)
  • Cell thickness: 0.4 mm (0.02 in)
  • Substrate: nickel-coated aluminum — semi-rigid and semi-flexible
  • Surface finish: raw, uncoated — no encapsulant applied
  • Positive terminal: large nickel-coated aluminum back surface
  • Negative terminal: thin strip of uncoated aluminum on the front edge
  • Recommended connection method: conductive adhesive or conductive epoxy
  • Note: cells will degrade if exposed to moisture or UV without encapsulation

Applications

CIGS thin-film solar cells like the Nanosolar Nanocell are used in DIY solar panel construction, experimental photovoltaic research, off-grid power projects, and custom solar array builds. CIGS technology offers higher efficiency than amorphous silicon thin-film cells and performs well in low-light and diffuse-light conditions. The semi-flexible aluminum substrate makes these suitable for curved or non-planar mounting surfaces where rigid crystalline silicon cells cannot be used. Because these cells are supplied raw and uncoated, builders need to encapsulate them — typically using EVA film and a back sheet, or a suitable transparent resin — before outdoor deployment. Nanosolar was a Silicon Valley-based solar startup that developed a roll-to-roll printing process for CIGS cells and operated a large manufacturing facility in San Jose, California; the company ceased operations in 2013. These cells represent the last production output from that facility and are of interest to DIY builders, solar researchers, and collectors of photovoltaic technology.

Condition: New
These Nanosolar Nanocell 2.6W flexible CIGS solar cells are new old stock from Nanosolar's final production run at their California facility before the company was liquidated in 2013. The cells have never been used or installed. They are raw and uncoated — no encapsulant has been applied — so they will degrade if exposed to moisture or the elements without proper encapsulation. The cells appear in clean, undamaged condition consistent with new old stock storage. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Nanosolar
Model:
Nanocell
MPN:
Nanocell
Type:
CIGS Thin-Film Flexible Solar Cell
SKU:
52146
Lot Quantity:
10 cells
Total Power Output:
26 Watts (10 x 2.6W)
Power per Cell:
2.6 Watts
Vmpp (Maximum Power Voltage):
0.45 V
Impp (Maximum Power Current):
5.8 A
Voc (Open Circuit Voltage):
0.61 V
Isc (Short Circuit Current):
6.7 A
Cell Length:
165 mm (6.5 inches)
Cell Width:
135 mm (5.3 inches)
Cell Height / Thickness:
0.4 mm (0.02 inches)
Cell Technology:
CIGS (Copper Indium Gallium Selenide)
Substrate / Base Material:
Nickel-coated aluminum (semi-flexible)
Surface Finish:
Raw, uncoated — no encapsulant
Positive Terminal:
Large nickel-coated aluminum back surface
Negative Terminal:
Thin uncoated aluminum strip on front
Connection Method:
Conductive glue or conductive epoxy recommended
Flexibility:
Semi-flexible
Condition:
New — new old stock from Nanosolar facility
Country/Region of Manufacture:
United States
Application:
DIY solar panels, experimental, off-grid projects
Seller Notes:
Lot of 10 raw uncoated CIGS cells; encapsulation required for outdoor use
Condition Notes:
Nanosolar Nanocell 2.6W flexible CIGS solar cells — new old stock from Nanosolar's final production run (2013). Never used or installed. Raw/uncoated; encapsulation required for outdoor use. 10-cell lot, 26W total.
