Nagano Keiki Co

Nagano Keiki KH15-PT14-C-200-0.5 Pressure Transmitter 24V DC 1-5V DC 200 kgf/cm2

(No reviews yet) Write a Review
SKU:
45520
MPN:
KH15-PT14-C-200-0.5
Condition:
Used
Availability:
Usually ships within 1–2 business days.
Weight:
1.00 LBS
Shipping:
Calculated at Checkout
  • Nagano Keiki KH15-PT14-C-200-0.5 pressure transmitter side view showing label with 0–200 kgf/cm², 24V DC, 1–5V DC markings and threaded process port
  • Nagano Keiki KH15 pressure transmitter rear electrical end showing 6-pin circular connector mounted on body
  • Nagano Keiki KH15 pressure transmitter close-up of male threaded process connection port showing thread and sealing face
$120.00
Was: $250.00
Current Stock: 1

Sold Out

Description

Nagano Keiki KH15-PT14-C-200-0.5 Pressure Transmitter 24V DC 1-5V DC 200 kgf/cm2

Pressure transmitter that converts hydraulic, pneumatic, or fluid pressure measurements into a standardized 1–5V DC output signal. Designed for real-time monitoring in closed-loop control systems.

Specifications & What's Included

  • Supply Voltage: 24V DC
  • Output Signal: 1–5V DC
  • Pressure Range: 0–200 kgf/cm²
  • Process Connection: Male threaded fitting (NPT/PT style)
  • Electrical Connector: 6-pin circular mil-spec connector
  • Manufacturer: Nagano Keiki, Japan
  • Unit only; no accessories included

Applications

Commonly used in industrial hydraulic systems, pneumatic control circuits, and process automation where pressure feedback is required. Typical installations include injection molding equipment, hydraulic presses, compressor monitoring, and plant-level process control. The 1–5V output integrates with analog PLC inputs, pressure controllers, and gauge displays. Standard in manufacturing, automotive, and fluid power applications.

Condition: Used
This Nagano Keiki KH15-PT14-C-200-0.5 pressure transmitter has been inspected and appears to be in good used condition. The body is intact with light surface marks and minor soiling typical of industrial use — nothing structural or significant. The threaded process port and 6-pin electrical connector both appear clean and undamaged. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Nagano Keiki
Model:
KH15-PT14-C-200-0.5
MPN:
KH15-PT14-C-200-0.5
Type:
Pressure Transmitter
SKU:
45520
Supply Voltage:
24V DC
Output Signal:
1–5V DC
Pressure Range:
0–200 kgf/cm²
Electrical Connector:
6-pin circular mil-spec style connector
Process Connection:
Male threaded fitting (NPT/PT style, visible in photos)
Form Factor:
Inline / Threaded Body
Application:
Industrial process control, hydraulic, pneumatic systems
Country/Region of Manufacture:
Japan
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Unit only; no additional accessories included.
Condition Notes:
Nagano Keiki KH15-PT14-C-200-0.5 pressure transmitter. Inspected and in good used condition. Body intact, light surface marks from normal industrial use. Threaded port and 6-pin connector appear clean and undamaged.
View AllClose

Related Products

Related Products

Nagano Keiki KH15-PT14-C-200 pressure transmitter side view showing label with range, power, and output specs Nagano Keiki KH15-PT14-C-200 pressure transmitter label closeup showing 0-200 kgf/cm² range, 24V DC, 1-5V DC output
Add to Cart
Quick view

Nagano Keiki KH15-PT14-C-200 Pressure Transmitter 0-200 kgf/cm² 24V DC 1-5V

Nagano Keiki Co

$85.00
Was: $175.00
Nagano Keiki KH15-PT14-C-200 Pressure Transmitter 0-200 kgf/cm² 24V DC 1-5VThe Nagano Keiki KH15-PT14-C-200 is a compact inline pressure transmitter designed for industrial process measurement. It...
45521
SKU:
45521
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Brand:
Nagano Keiki
Model:
KH15-PT14-C-200
MPN:
KH15-PT14-C-200-0.25
Type:
Pressure Transmitter
SKU:
45521
Pressure Range:
0-200 kgf/cm²
Power Supply Voltage:
24V DC
Output Signal:
1-5V DC
Connector Type:
7-Pin Circular (MIL-style)
Process Connection:
Male threaded fitting (NPT/PT style)
Form Factor:
Inline / Inline Cylindrical
Condition:
Used – Inspected
Seller Notes:
Unit only; no cable or connector included.
Country/Region of Manufacture:
Japan
Condition Notes:
Nagano Keiki KH15-PT14-C-200 pressure transmitter. Inspected, good used condition. Body and label intact; some surface oxidation on the process fitting typical of used industrial hardware. 7-pin connector undamaged.

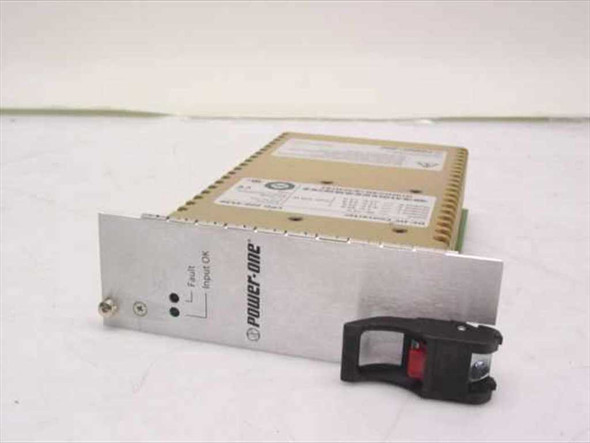

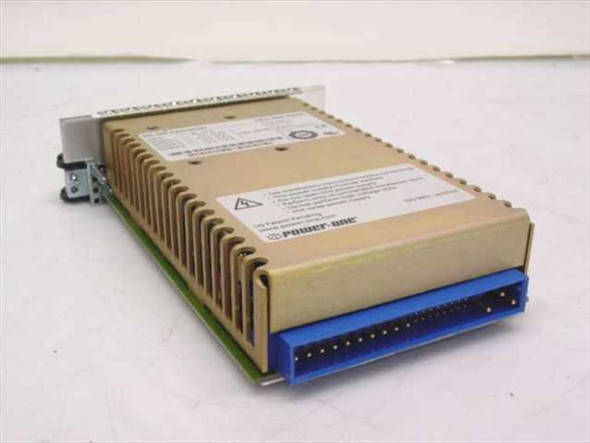

Power-One CPD 200-4530 DC-DC converter plug-in module — front panel view showing Fault and Input OK LED indicators and extraction handle Power-One CPD 200-4530 DC-DC converter — top and side view showing finned heatsink housing, blue output connector, and Power-One branding label
Add to Cart
Quick view

Power-One CPD 200-4530 DC-DC Converter 200W 36-75V In 5V 3.3V 12V Plug-In

Power One

$45.00
Was: $90.00
Power-One CPD 200-4530 DC-DC Converter 200W 36-75V In 5V 3.3V 12V Plug-InDC-DC converter module designed to regulate and convert high-voltage DC input to multiple stabilized lower-voltage outputs...
28824
SKU:
28824
Availability:
Usually ships within 1–2 business days.
Weight:
4.00 LBS
Brand:
Power-One
Model:
CPD 200-4530
MPN:
CPD 200-4530
Type:
DC-DC Converter Power Supply Module
SKU:
28824
Form Factor:
Plug-In Module
Input Voltage:
36–75V DC
Output 1:
5V DC, 40A
Output 2:
3.3V DC, 40A
Output 3:
12V DC, 5.5A
Output 4:
-12V DC, 1.5A
Number of Outputs:
4
Max Output Power:
200W
Enclosure Rating:
IP20
Certifications:
CE, TÜV
Country/Region of Manufacture:
Switzerland
Condition:
Used – Inspected and Tested
Seller Notes:
Plug-in module only; tested and in working order.
Condition Notes:
Power-One CPD 200-4530 DC-DC Converter tested and in working order. Good used condition with normal cosmetic wear. Output connector and extraction handle present and intact.

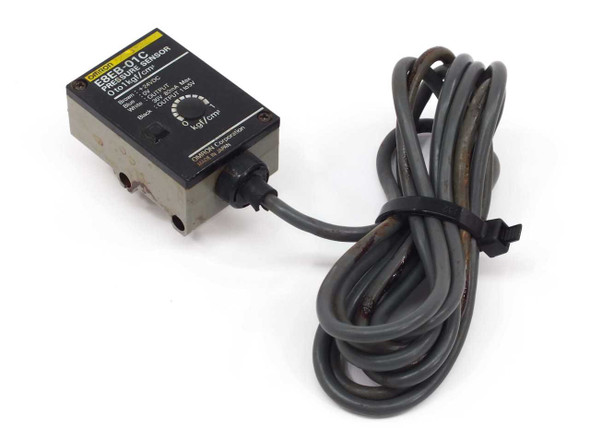

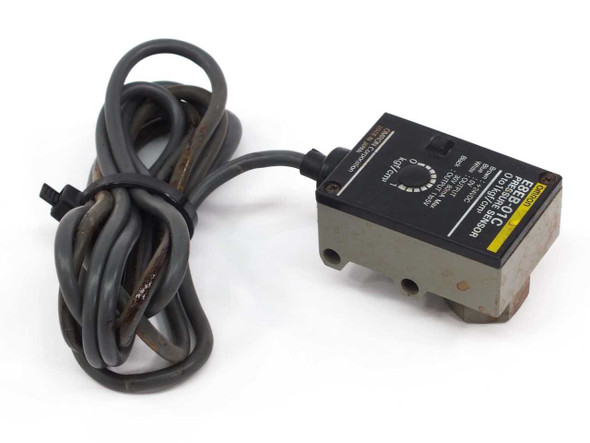

Omron E8EB-01C pressure sensor front-left view with attached multi-conductor cable coiled Omron E8EB-01C pressure sensor rear-left view showing label, rotary adjustment dial, and cable
