Nabertherm

Nabertherm NR 1000/11 Hot Wall Retort Vacuum Furnace 1100C 300kW 2000L

(No reviews yet) Write a Review
SKU:
52866
MPN:
NR 1000/11
Condition:
Used
Availability:
This is a large industrial furnace requiring freight shipping. Please contact us for shipping arrangements and a freight quote before purchasing.
Weight:
16,000.00 LBS
Shipping:
Calculated at Checkout

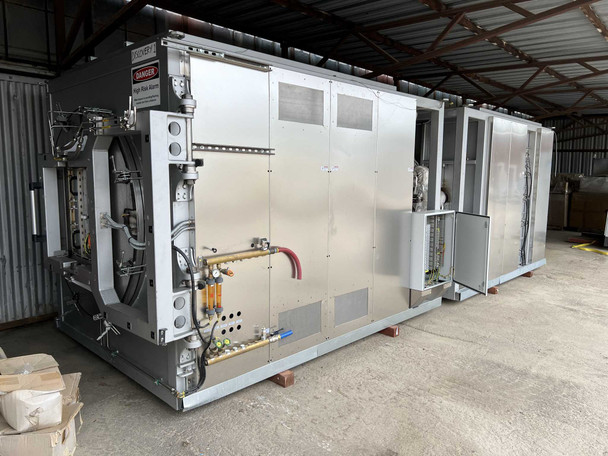

  • Nabertherm NR 1000/11 hot wall retort vacuum furnace full system view with gas manifold and control enclosures, indoor storage
  • Nabertherm NR 1000/11 nameplate showing model NR 1000/11, SN 346705, 1100°C, 300kW, 480V 3-Phase, 374A, manufactured 2018
  • Nabertherm NR 1000/11 nameplate showing model NR 1000/11, SN 351981, 1100°C, 300kW, 480V 3-Phase, 374A, 2018 with geprüft/checked sticker
  • Nabertherm NR 1000/11 vacuum retort furnace front view showing large circular vacuum door with high-pressure locking ring, danger high pressure label

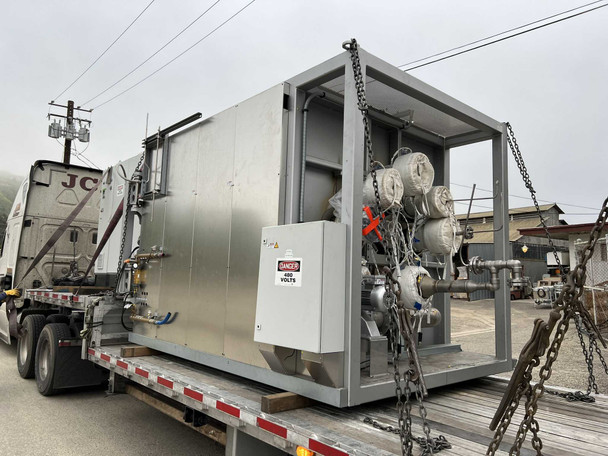

  • Nabertherm NR 1000/11 vacuum furnace loaded on flatbed truck, side view showing stainless steel exterior panels and vacuum pump connections
  • Nabertherm NR 1000/11 vacuum furnace on flatbed truck, opposite side view showing large circular door with locking hardware
  • Nabertherm NR 1000/11 vacuum furnace rear section on flatbed showing vacuum pump manifold, large flanged vacuum ports and associated plumbing
  • Nabertherm NR 1000/11 vacuum furnace rear end view on flatbed showing circular vacuum door with clamping ring and safety warning labels
  • Nabertherm NR 1000/11 associated controller cabinet with high voltage danger labels, analog meters, and main power disconnect switch
  • Nabertherm NR 1000/11 nameplate and Abstraction Engineering certification label #9263, NFPA 70 & 79, UL 508A & 61010, SN 346704, 2018, 305kW
  • Nabertherm NR 1000/11 nameplate and Abstraction Engineering certification label #9261 close-up view

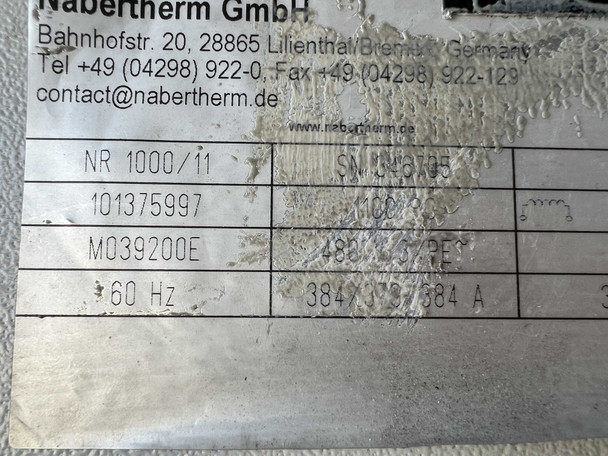

  • Nabertherm NR 1000/11 nameplate close-up showing model NR 1000/11, MPN 101375997, M039200E, 480V 3-Phase, 60Hz, 384A, 305kW
$100,000.00
Was: $500,000.00
Current Stock: 2

Sold Out

Description

Nabertherm NR 1000/11 Hot Wall Retort Vacuum Furnace 1100C 300kW 2000L

Hot wall retort vacuum furnace with 2000+ liter capacity and maximum operating temperature of 1100°C. Operates on 480V 3-phase 300kW power and features a round furnace opening of 4 ft diameter by 6 ft deep.

Specifications & What's Included

  • Model: NR 1000/11 (MPN: 101375997)
  • Power: 480V 3-Phase, 374A, 300kW, 60Hz
  • Max Temperature: 1100°C
  • Useful Volume: 2000+ Liters (75 Cu Ft)
  • Furnace Opening: Round – 4 ft diameter x 6 ft deep
  • Vacuum/Gas-Tight Retort with open cooling water system
  • Multiple vacuum ports for cold evacuation
  • Turbomolecular pump input option
  • Includes associated controller cabinet
  • Manufactured: Germany, 2018
  • Certifications: CE, NFPA 70 & 79, UL 508A & 61010

Applications

Suitable for vacuum heat treatment, sintering, annealing, and laboratory processes requiring controlled vacuum or inert atmosphere conditions.

Condition: Used
This Nabertherm NR 1000/11 Hot Wall Retort Vacuum Furnace was recently removed from service at a local high-tech manufacturing company that no longer needed it. It comes with the associated controller cabinet. The unit is large and heavy, requiring a large step deck flatbed truck for transport — please arrange freight logistics before purchasing. Please view our photo set and contact us with any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Nabertherm
Model:
NR 1000/11
MPN:
101375997
Secondary MPN:
M039200E
SKU:
52866
Condition:
Used – Pulled from Working Environment
Seller Notes:
Includes associated controller cabinet. Freight shipping required.
Country of Manufacture:
Germany
Form Factor:
Freestanding Industrial
Power Requirements:
480V 3-Phase, 374A, 300kW, 60Hz
Max Temperature:
1100°C
Power Rating:
300 kW
Voltage Rating:
480V
Current Rating:
374/374/374 A
Phase:
Three Phase
Frequency:
60 Hz
Useful Volume:
2000+ Liters (75 Cu Ft / 560+ Gallons)
Furnace Opening:
Round – 4 ft diameter x 6 ft deep
Furnace Type:
Hot Wall Retort Vacuum Furnace
Atmosphere:
Vacuum / Gas-Tight Retort
Cooling System:
Open cooling water system
Vacuum Ports:
Multiple ports for vacuum pumps (cold evacuation)
Turbomolecular Pump:
Turbomolecular pump input option
Controls:
Integrated controls and gas supply in furnace housing
Housing:
Compact housing with removable stainless steel sheets
Manufacture Year:
2018
Certifications:
CE; NFPA 70 & 79, UL 508A & 61010
Certified By:
Abstraction Engineering #9263
Condition Notes:
This Nabertherm NR 1000/11 Hot Wall Retort Vacuum Furnace was recently removed from service at a local high-tech manufacturing company that no longer needed it. It comes with the associated controller cabinet.
California Prop 65 Warning:
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
View AllClose
