Nabertherm

Nabertherm NR 1000/11 Hot Wall Retort Vacuum Furnace 1100C 300kW 2000L

Nabertherm

SKU:

52866

Availability:

This is a large industrial furnace requiring freight shipping. Please contact us for shipping arrangements and a freight quote before purchasing.

Weight:

16,000.00 LBS

Brand:

Nabertherm

Model:

NR 1000/11

MPN:

101375997

Secondary MPN:

M039200E

SKU:

52866

Condition:

Used – Pulled from Working Environment

Seller Notes:

Includes associated controller cabinet. Freight shipping required.

Country of Manufacture:

Germany

Form Factor:

Freestanding Industrial

Power Requirements:

480V 3-Phase, 374A, 300kW, 60Hz

Max Temperature:

1100°C

Power Rating:

300 kW

Voltage Rating:

480V

Current Rating:

374/374/374 A

Phase:

Three Phase

Frequency:

60 Hz

Useful Volume:

2000+ Liters (75 Cu Ft / 560+ Gallons)

Furnace Opening:

Round – 4 ft diameter x 6 ft deep

Furnace Type:

Hot Wall Retort Vacuum Furnace

Atmosphere:

Vacuum / Gas-Tight Retort

Cooling System:

Open cooling water system

Vacuum Ports:

Multiple ports for vacuum pumps (cold evacuation)

Turbomolecular Pump:

Turbomolecular pump input option

Controls:

Integrated controls and gas supply in furnace housing

Housing:

Compact housing with removable stainless steel sheets

Manufacture Year:

2018

Certifications:

CE; NFPA 70 & 79, UL 508A & 61010

Certified By:

Abstraction Engineering #9263

Condition Notes:

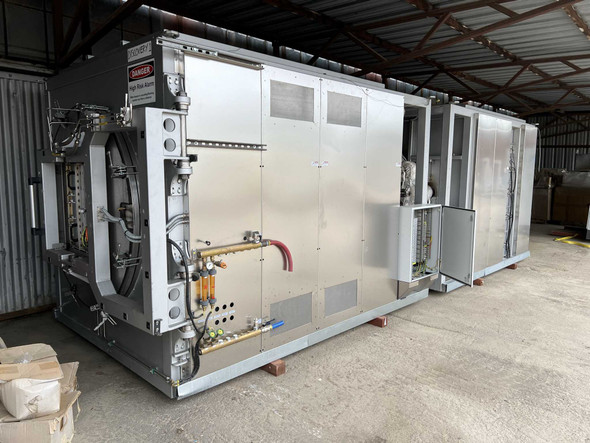

This Nabertherm NR 1000/11 Hot Wall Retort Vacuum Furnace was recently removed from service at a local high-tech manufacturing company that no longer needed it. It comes with the associated controller cabinet.
