Motorola FT100M Managed Fractional T1 DSU/CSU Dual DTE 1.544 Mbps RJ-48C w/Manual
Managed fractional T1 DSU/CSU (Data Service Unit/Channel Service Unit) for T1 carrier circuits and fractional T1 WAN networks. Provides up to 1.544 Mbps data rate with dual DTE ports and SNMP-based network management.
Specifications & What's Included
- Data rate: Up to 1.544 Mbps (Full T1) / Fractional T1
- Interfaces: Dual DB-25 DTE, DB-25 management port, RJ-48C network port, LAN RJ connector
- Protocols: T1 ESF, D4; FCC Part 68, UL Listed, ANSI T1.403, ITU G.703 compliant
- Power: 120VAC, 60Hz via included Ault Class 2 power supply
- Desktop/shelf mount form factor

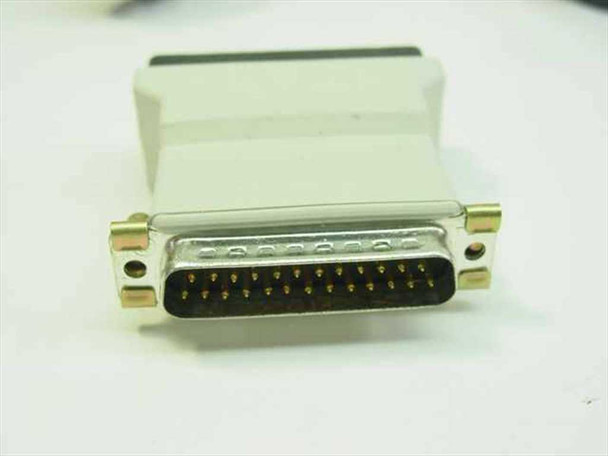

- Includes original Motorola User's Guide and DB-25 interface adapter
Applications
The FT100M was used to connect DTE equipment (routers, multiplexers, data terminals) to T1 carrier services and fractional T1 WAN networks. Typical deployment in enterprise networking, telecommunications infrastructure, and carrier access environments. Supports both full T1 and fractional T1 bandwidth allocation with out-of-band SNMP management for remote monitoring and configuration.
Condition: Used
This Motorola FT100M Managed Fractional T1 DSU/CSU was pulled from a working operational environment and has been visually inspected. The enclosure shows the minor scuffs and surface marks typical of used equipment of this age. All photos are of the actual unit. Includes the original Motorola FT100M User's Guide (spiral-bound), Ault Class 2 external power supply (model 7612-305-409E12), and a DB-25 interface adapter. Please view our photo set and contact us if you have any questions.
This Motorola FT100M Managed Fractional T1 DSU/CSU was pulled from a working operational environment and has been visually inspected. The enclosure shows the minor scuffs and surface marks typical of used equipment of this age. All photos are of the actual unit. Includes the original Motorola FT100M User's Guide (spiral-bound), Ault Class 2 external power supply (model 7612-305-409E12), and a DB-25 interface adapter. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Motorola |
Model: |
FT100M |
Secondary Model: |
6104506100010 |
MPN: |
6104506100010 |
SKU: |
34153 |
Seller Notes: |
Includes original Motorola FT100M User's Guide, Ault Class 2 power supply, and DB-25 interface adapter |
Form Factor: |
Desktop / Shelf Mount |
Country of Manufacture: |
United States |
Power Requirements: |

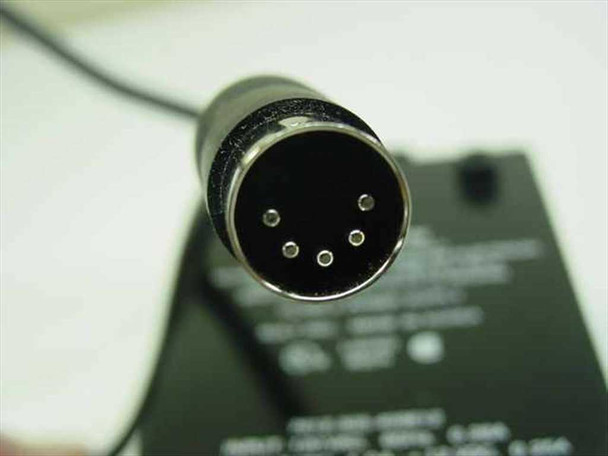

120VAC, 60Hz, 0.28A input; +5VDC/1.0A, ±12VDC/0.25A output via Ault Class 2 PSU |
Interface Type: |
T1 ESF / D4, RJ-48C (NWK), Dual DB-25 DTE, DB-25 MGT, LAN NWK RJ |
Data Rate: |
1.544 Mbps |
Protocol: |
T1 ESF |
Management Type: |
Managed – SNMP, out-of-band management port (DB-25 MGT) |
Number of Ports: |
2 DTE (DB-25), 1 MGT (DB-25), 1 NWK RJ-48C, 1 LAN NWK RJ |
Connector Type: |
RJ-48C (NWK), DB-25 (DTE x2, MGT), Terminal block (ALARM/SENSE), DIN power |
Standards Compliance: |
FCC Part 68, UL Listed, Canadian ICES, ANSI T1.403, ITU G.703 |
Compatible With: |
Legacy T1 WAN networks, fractional T1 circuits, point-to-point data links |
Condition Notes: |
Motorola FT100M Managed Fractional T1 DSU/CSU pulled from a working environment; visually inspected. Shows minor cosmetic scuffs typical of used equipment. Includes original User's Guide, Ault power supply, and DB-25 adapter. |
Seller Notes: |
Includes original Motorola FT100M User's Guide, Ault external power supply, and DB-25 interface adapter |
Form Factor: |
Desktop |
Power Requirements: |
120VAC, 60Hz, 0.28A input via Ault Class 2 external power supply; +5VDC/1.0A, ±12VDC/0.25A output |
Compatible With: |
T1 carrier circuits; DTE equipment with DB-25 V.35 or RS-232 interfaces; SNMP network management systems |
Interface Type: |
T1 ESF / D4, RJ-48C (network), Dual DB-25 DTE, DB-25 MGT, LAN NWK RJ, ALARM/SENSE terminal block |
Data Rate: |
Up to 1.544 Mbps (Full T1) / Fractional T1 |
Protocol: |
T1 ESF, D4 |
Standards Compliance: |
FCC Part 68, UL Listed, Canadian ICES |
Number of Ports: |
2 DTE ports (DB-25), 1 MGT port (DB-25), 1 NWK RJ-48C, 1 LAN NWK RJ |
Management Type: |
Managed – SNMP, out-of-band management port |
Connector Type: |
RJ-48C (network/NWK), DB-25 (DTE Port 1, Port 2, MGT), terminal block (ALARM/SENSE), DIN power |
Condition Notes: |
This Motorola FT100M was pulled from an operational environment where it was in active service. The unit has been visually inspected and all product photos were taken of the actual unit in inventory. Cosmetic wear including minor scuffs or surface ma |

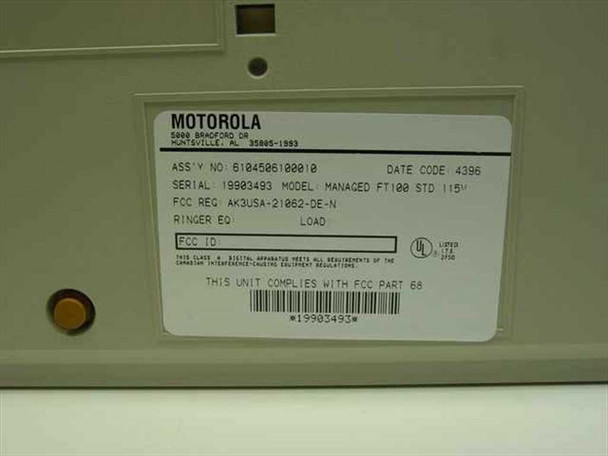

[INTERNAL] Serial Number: |
19903493 |
[INTERNAL] Assembly Number: |
6104506100010 |
[INTERNAL] Manufacture Date Code: |
4396 (Q4 1996) |
[INTERNAL] FCC Registration: |
AK3USA-21062-DE-N |
[INTERNAL] Power Supply Model: |
Ault 7612-305-409E12 |
[INTERNAL] Power Supply Asset Code: |
9436-A (visible on power supply top) |
Type: |
Managed Fractional T1 DSU/CSU |
Country/Region of Manufacture: |
United States |
Compatible With 1: |
T1 carrier circuits; fractional T1 WAN networks |
Compatible With 2: |
DTE equipment with DB-25 V.35 or RS-232 interfaces |
Compatible With 3: |
SNMP network management systems |
Date Code: |
4396 |
