ADC Kentrox DataSmart Max 771 T1 4-Port Add/Drop Mux 1.544 Mbps RJ-48C

(No reviews yet) Write a Review
SKU:
45317
MPN:
72771
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
8.00 LBS
Shipping:
Calculated at Checkout

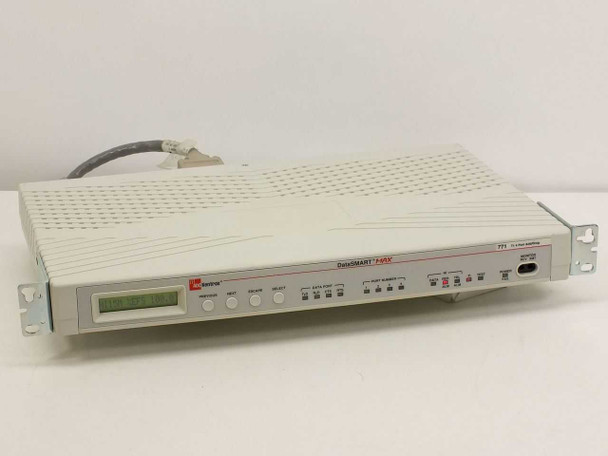

  • ADC Kentrox DataSmart Max 771 T1 4-Port Add/Drop Multiplexer — front 3/4 view showing 1U rackmount chassis with LCD display and included cable
  • ADC Kentrox logo close-up on DataSmart Max 771 front panel with PREVIOUS and NEXT navigation buttons visible
  • DataSMART MAX product name label close-up on Kentrox 771 front panel showing port number markings
  • Kentrox 771 T1 4 Port Add/Drop model designation label on front panel

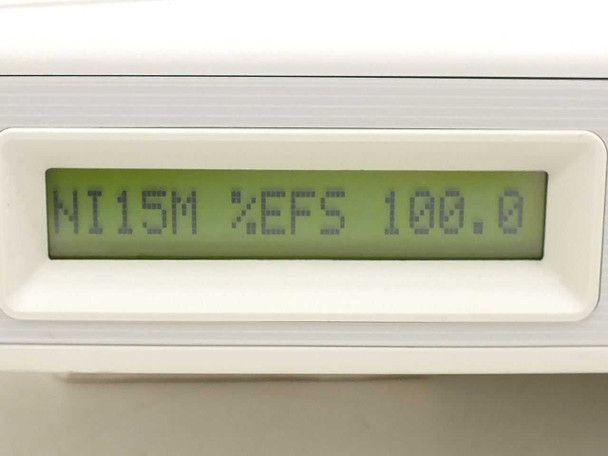

  • DataSmart Max 771 front-panel LCD display showing NI15M %EFS 100.0 status reading

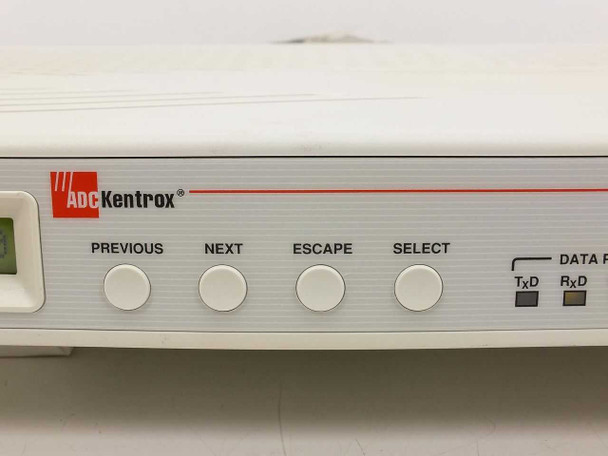

  • ADC Kentrox DataSmart Max 771 front panel — PREVIOUS, NEXT, ESCAPE, SELECT buttons and DATA PORT TxD/RxD indicators

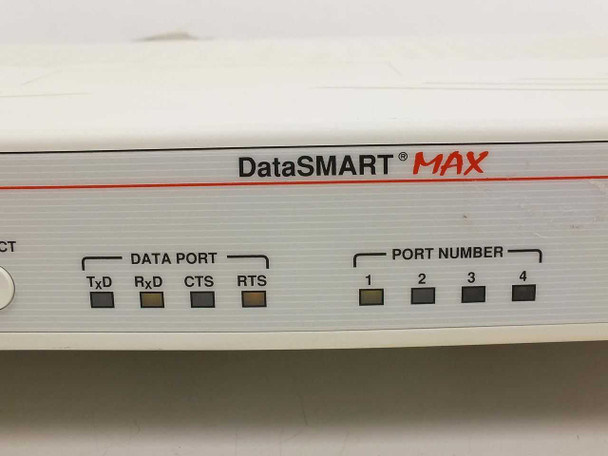

  • DataSMART MAX 771 front panel close-up showing DATA PORT indicators (TxD, RxD, CTS, RTS) and PORT NUMBER 1–4 LEDs

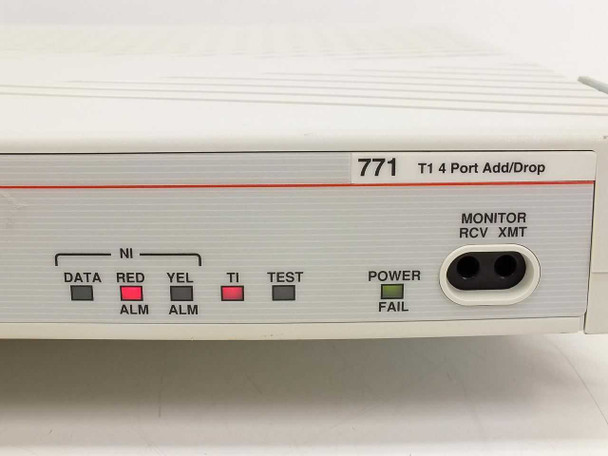

  • ADC Kentrox 771 T1 4-Port Add/Drop right-side front panel showing NI alarms (DATA, RED ALM, YEL ALM, TI, TEST), POWER/FAIL LED, and MONITOR RCV/XMT ports

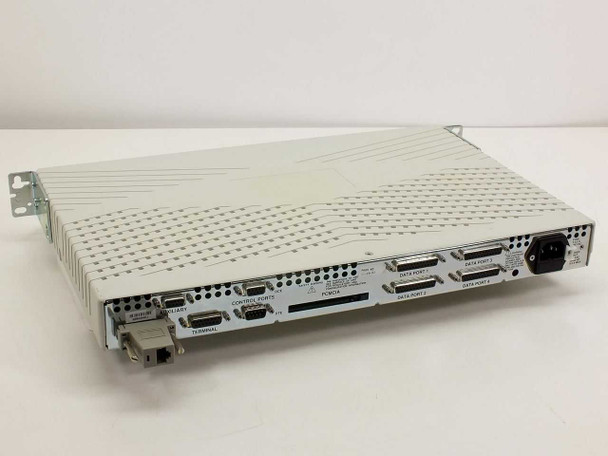

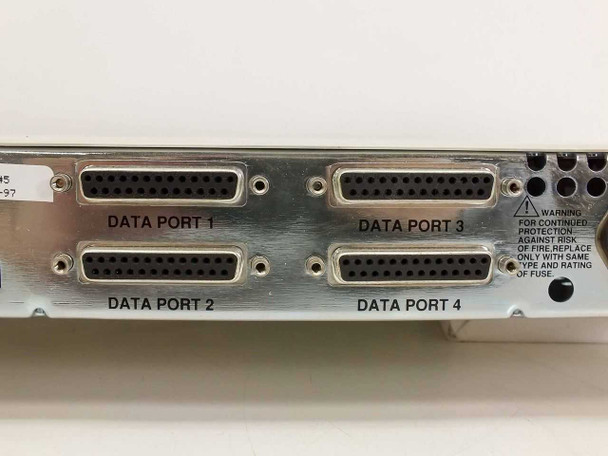

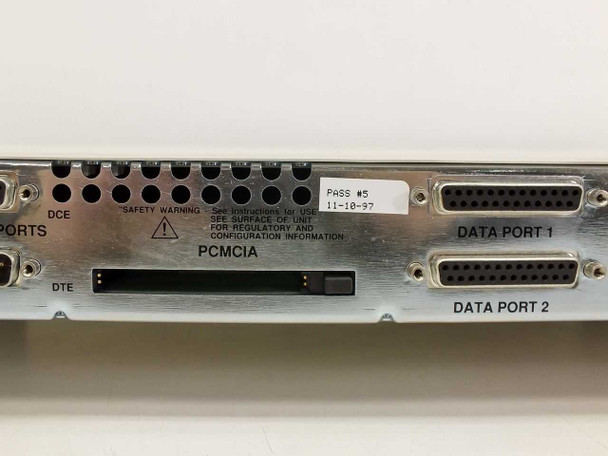

  • ADC Kentrox DataSmart Max 771 rear panel view showing AUXILIARY, TERMINAL, CONTROL PORTS (DCE/DTE), and DATA PORT connectors plus IEC AC inlet

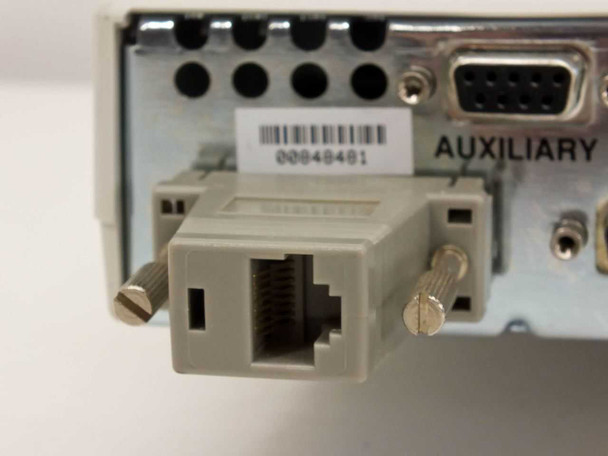

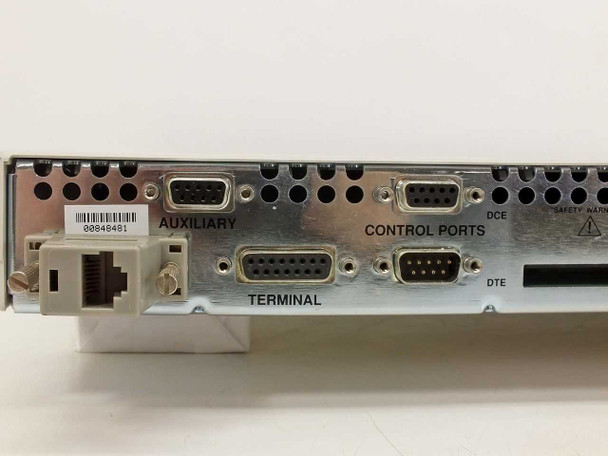

  • DataSmart Max 771 rear panel close-up showing AUXILIARY (DB-9), TERMINAL (RJ-11), CONTROL PORTS DCE and DTE (DB-25/DB-15), and asset tag label
  • ADC Kentrox DataSmart Max 771 T1 4 Port Adapter with 01-95001074 Cable 72771
  • ADC Kentrox DataSmart Max 771 T1 4 Port Adapter with 01-95001074 Cable 72771
  • ADC Kentrox DataSmart Max 771 T1 4 Port Adapter with 01-95001074 Cable 72771
  • ADC Kentrox DataSmart Max 771 T1 4 Port Adapter with 01-95001074 Cable 72771
  • ADC Kentrox DataSmart Max 771 T1 4 Port Adapter with 01-95001074 Cable 72771
  • ADC Kentrox DataSmart Max 771 T1 4 Port Adapter with 01-95001074 Cable 72771
  • ADC Kentrox DataSmart Max 771 T1 4 Port Adapter with 01-95001074 Cable 72771
$75.00
Was: $150.00
Current Stock: 1

Sold Out

Description

ADC Kentrox DataSmart Max 771 T1 4-Port Add/Drop Mux 1.544 Mbps RJ-48C

1U rackmount T1 add/drop multiplexer for managing T1 circuits at 1.544 Mbps. Supports four data ports with add/drop functionality, enabling selective routing and monitoring of T1 traffic across telecom networks.

Specifications & What's Included

  • Model: ADC Kentrox DataSmart Max 771 (MPN 72771)
  • 4 Data Ports + Control, Terminal, and Auxiliary ports
  • Interface: T1 RJ-48C, RS-232 (DCE/DTE), V.35
  • Framing: ESF (Extended Superframe)
  • Management: Front-panel LCD display with navigation buttons, RS-232 terminal access
  • Status indicators: DATA, RED ALM, YEL ALM, TI, TEST, POWER/FAIL, Monitor RCV/XMT

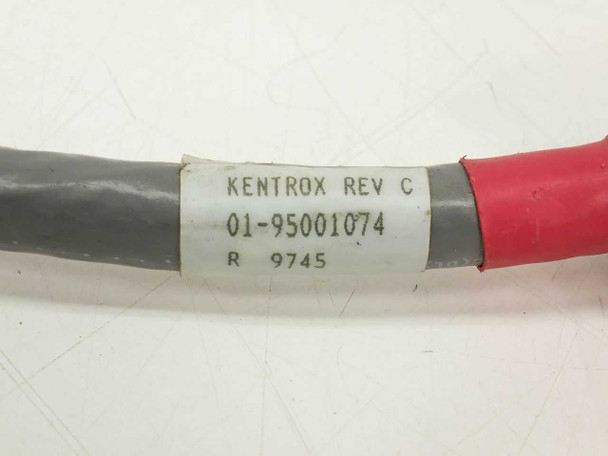

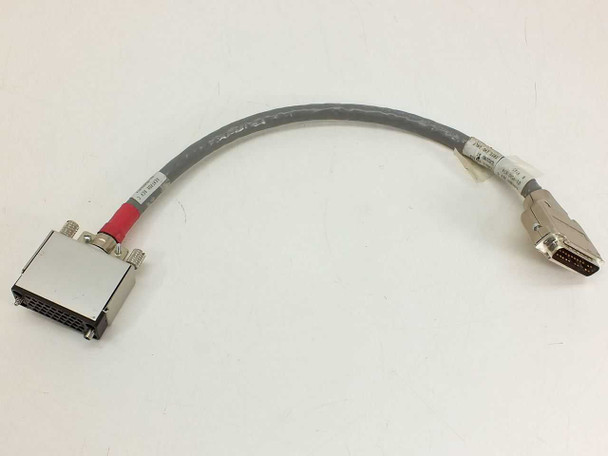

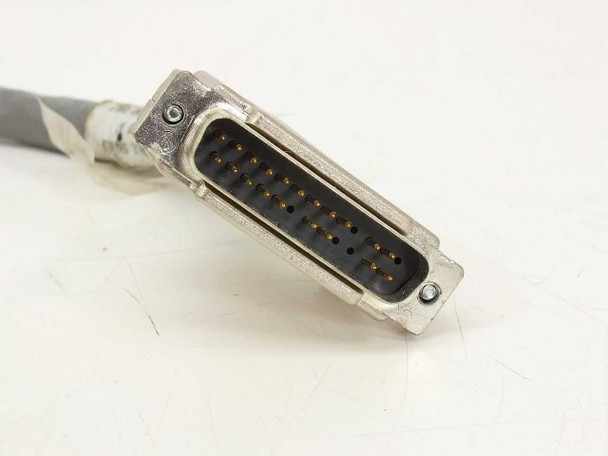

  • Includes Kentrox 01-95001074 cable

Applications

T1 add/drop multiplexers are used in telecom carrier networks to insert and extract T1 channels without disrupting the main T1 line. This unit was deployed in service provider environments and private network backbones for circuit management, channel grooming, and monitoring. Compatible with standard T1 infrastructure and management systems using RS-232 terminal interfaces.

Condition: Used
This ADC Kentrox DataSmart Max 771 T1 4-Port Add/Drop Multiplexer has been inspected and appears to be in good condition. The chassis is clean with only minor cosmetic wear typical of lightly used rack equipment. Front-panel LEDs and the LCD display are intact, and all buttons and port connectors appear undamaged. The included Kentrox 01-95001074 cable is present. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
ADC Kentrox
Model:
DataSmart Max 771
MPN:
72771
Secondary Model:
72771
Type:
T1 4-Port Add/Drop Multiplexer
SKU:
45317
Seller Notes:
Includes Kentrox 01-95001074 cable
Country/Region of Manufacture:
United States
Form Factor:
1U Rackmount
Interface Type:
T1, RJ-48C, RS-232 (DCE/DTE), V.35
Data Rate:
1.544 Mbps
Number of Ports:
4 Data Ports + Control Port + Terminal + Auxiliary
Framing Format:
ESF (Extended Superframe)
Protocol:
T1 ESF
Management Type:
Managed — front-panel LCD + RS-232 terminal port
Connector Type:
RJ-48C (NI/T1), DB-25/DB-15 (data ports), RJ-11 (terminal)
Included Accessories:
Kentrox 01-95001074 cable
Front Panel Indicators:
DATA, RED ALM, YEL ALM, TI, TEST, POWER/FAIL, Monitor RCV/XMT
Front Panel Controls:
PREVIOUS, NEXT, ESCAPE, SELECT buttons; LCD display
Condition:
Used – Inspected and in good condition
Condition Notes:
ADC Kentrox DataSmart Max 771 T1 4-Port Add/Drop Mux inspected and in good condition. Minor cosmetic wear only. Includes Kentrox 01-95001074 cable. Please view photos and contact us with questions.
