Montalvo X-3400Pce-RW-DN Tension Controller PDB Board System 3000 115/230VAC
The Montalvo X-3400Pce-RW-DN is a tension controller PDB (Power Distribution Board) for the Montalvo System 3000 Series web tension control platform. The board integrates the CB64 controller module — featuring an LCD display and front-panel navigation buttons — alongside an onboard power transformer, relay, and multiple green screw terminal block connectors for field wiring. It serves as the core control and power interface board within a System 3000 tension control installation.
Specifications & What's Included
- Manufacturer: Montalvo
- Model / Type: X-3400Pce-RW-DN
- Series: System 3000

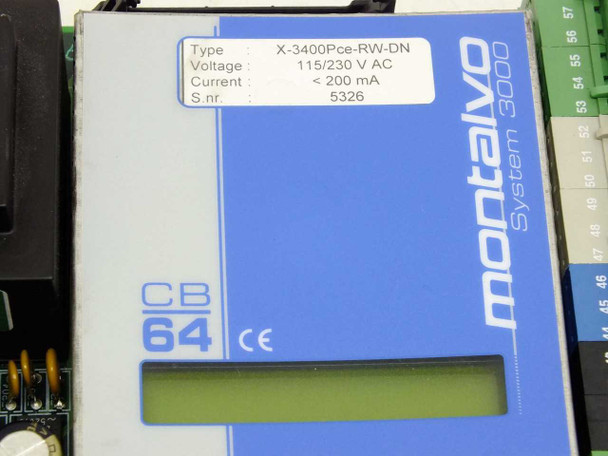

- Controller Module: CB64 (LCD display with navigation buttons)
- Input Voltage: 115/230 V AC (dual voltage)
- Current: < 200 mA
- CE marked
- Onboard components: power transformer, relay, electrolytic capacitors, screw terminal blocks (multiple green Phoenix-style connectors), ribbon cable IDC connector
- Form factor: standalone PCB / board module
- Board only — no enclosure, cables, or mounting hardware included
Applications
Montalvo's System 3000 is a web tension control platform used in converting, printing, slitting, laminating, and winding/unwinding machinery — industries where consistent material web tension is critical to product quality and process efficiency. The X-3400Pce-RW-DN PDB board acts as the central interface between the tension transducers, dancer controls, brake/clutch actuators, and the system's CB64 controller module. Montalvo tension control systems are found throughout paper, film, foil, textile, and label converting operations. Replacement PDB boards like this one are commonly needed for field repairs and machine refurbishment when the original board fails or is damaged, making this a directly usable spare or repair part for System 3000-equipped machinery.
This Montalvo X-3400Pce-RW-DN Tension Controller PDB Board for the System 3000 Series has been inspected and is in good used condition. It was pulled from a working environment where it was in use and functional. The board shows normal handling wear consistent with prior installation but no visible damage — the CB64 LCD module, terminal blocks, transformer, and relay all appear intact and undamaged. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Montalvo |
Model: |
X-3400Pce-RW-DN |
MPN: |
X-3400Pce-RW-DN |
Type: |
Tension Controller PDB Board |
SKU: |
46953 |
Series: |
System 3000 |
Module: |
CB64 |
Voltage: |
115/230 V AC |
Current: |
< 200 mA |
Form Factor: |
PCB / Board Module |
Interface: |
Green screw terminal blocks, ribbon cable connector |
Display: |
LCD display (CB64 module) |
Application: |
Web tension control for converting/printing/winding |
Seller Notes: |
Board only — no enclosure, cables, or mounting hardware included. |
Country/Region of Manufacture: |
United States |
Condition Notes: |
This Montalvo X-3400Pce-RW-DN Tension Controller PDB Board has been inspected and is in good used condition. Pulled from a working environment where it was in use and functional. Normal handling wear; no visible damage. |
