Montalvo 350 Type FN Load Cell Transducer 50 LB Web Tension Roller 13.5"

Montalvo 350 Type FN Load Cell Transducer 50 LB Web Tension Roller 13.5"

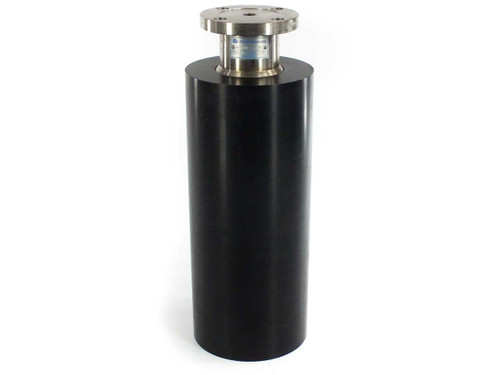

The Montalvo 350 is a Type FN load cell transducer designed for web tension measurement in converting, printing, and coating line applications. It combines the load-sensing element and roller into a single integrated assembly, mounting via a four-hole stainless steel flange to a machine frame while the roller rides directly against the web material to measure tension in real time.

Specifications & What's Included

• Brand: Montalvo
• Model: 350
• MPN / Label Number: 679B-350
• Transducer Type: FN
• Load / Tension Capacity: 50 LB
• Roller Length: 13.5 in
• Roller Diameter: 3.5 in
• Roller Color: Black
• Overall Dimensions: 16 in x 5 in x 5 in
• Mounting: Four-hole bolt pattern stainless steel flange
• Output Connection: Integral multi-pin cable (cable exits from flange body)
• Housing: Stainless steel upper flange / sensing section; black roller body
• Country of Manufacture: United States

Applications

Montalvo load cell transducers are standard components in web tension control systems used throughout the converting, printing, laminating, and coating industries. The Type FN series is a roller-type transducer: the roller itself spans the web and transmits tension forces directly to the internal strain gauge element, providing a continuous electrical signal proportional to web tension. This signal feeds a tension controller or display, allowing operators to maintain precise, consistent tension across materials such as paper, film, foil, fabric, and nonwovens. Montalvo is a well-established U.S. manufacturer of tension control equipment, and their load cells are commonly integrated with Montalvo controllers and amplifiers as well as third-party tension control systems that accept standard millivolt/volt load cell outputs. These transducers are used in production environments ranging from narrow web label presses to wide-format film lines and industrial coaters.
