Description
Mitsubishi NF125-CW No Fuse Circuit Breaker 75A 3-Pole AC220V 30kA 50/60Hz
Molded case circuit breaker (MCCB) rated for 75A at AC 220V three-phase operation. Provides overcurrent and short-circuit protection for industrial control systems and distribution panels without requiring replaceable fuses.
Specifications & What's Included
- Brand: Mitsubishi Electric
- Model: NF125-CW
- Type: No Fuse Circuit Breaker (MCCB)
- Current Rating: 75A
- Voltage: AC 220V
- Poles: 3-Pole (Three Phase)
- Interrupting Capacity: 30kA
- Frequency: 50/60Hz
- Frame Size: NF125
- Mounting: DIN Rail / Panel Mount
- Certification: CE
- Includes: Three color-coded lead wires
Applications
NF-series MCCBs are commonly used in industrial power distribution, manufacturing equipment control panels, and large machinery systems requiring reliable circuit protection. These breakers are standard components in three-phase industrial installations across Europe, Asia, and regions using 220V systems. The 75A rating accommodates mid-range motor loads and mixed industrial circuits.
Condition: Used

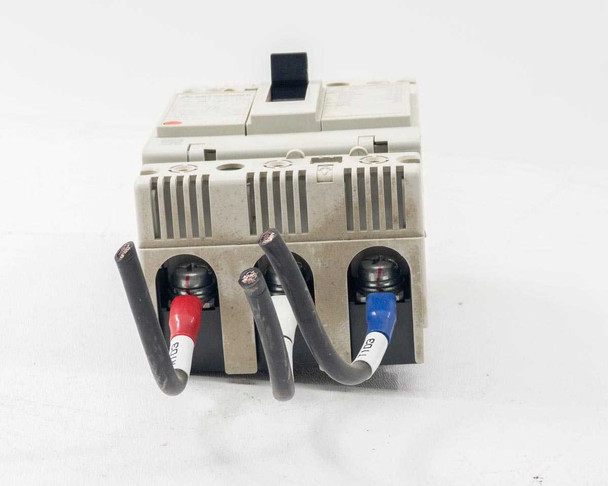

This Mitsubishi NF125-CW No Fuse Circuit Breaker was removed from a large industrial controller system and is in good used condition. The breaker body is clean and intact with only minor surface wear consistent with normal service use. The toggle mechanism moves freely between ON and OFF positions. Three color-coded lead wires (red, white/gray, blue) remain attached to the line-side terminals. No cracks, chips, or damage to the housing are observed. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
This Mitsubishi NF125-CW No Fuse Circuit Breaker was removed from a large industrial controller system and is in good used condition. The breaker body is clean and intact with only minor surface wear consistent with normal service use. The toggle mechanism moves freely between ON and OFF positions. Three color-coded lead wires (red, white/gray, blue) remain attached to the line-side terminals. No cracks, chips, or damage to the housing are observed. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Mitsubishi Electric |
Model: |
NF125-CW |
MPN: |
NF125-CW |
Type: |
No Fuse Circuit Breaker (MCCB) |
SKU: |
53206 |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Pulled from a large industrial controller system; three color-coded lead wires attached |
Country/Region of Manufacture: |
Japan |
Current Rating: |
75A |
Voltage Rating: |
AC 220V |
Number of Poles: |
3-Pole |
Interrupting Capacity: |
30kA |
Frequency: |
50/60Hz |
Frame Size: |
NF125 |
Phase: |
Three Phase |
Certifications: |
CE |
Form Factor: |
DIN Rail / Panel Mount |
Condition Notes: |
This Mitsubishi NF125-CW No Fuse Circuit Breaker was removed from a large industrial controller system and is in good used condition. The breaker body is clean and intact with only minor surface wear consistent with normal service use. |
