Description
Mitsubishi MR-J10A MELSERVO-J AC Servo Drive 100W 200-230VAC 3Ph 1.1A 50/60Hz
The Mitsubishi MR-J10A is a compact AC servo amplifier from the MELSERVO-J series, designed to drive and precisely control AC servo motors in industrial motion-control applications. It accepts a 3-phase AC input and delivers closed-loop position, speed, and torque control through its CN1 and CN2 connector interfaces. Made in Japan by Mitsubishi Electric Corporation.
Specifications & What's Included
- Model: MR-J10A
- Series: MELSERVO-J
- Power Rating: 100W
- AC Input Voltage: 200–230VAC, 3-Phase, 50/60Hz
- Output Current: 1.1A

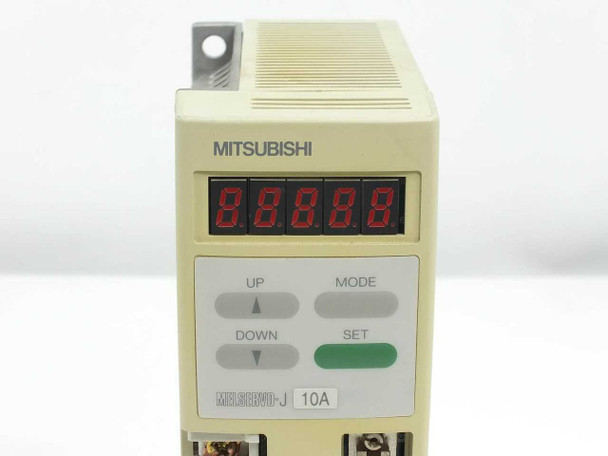

- Display: 5-digit red 7-segment LED (front panel)
- Front-panel controls: UP, DOWN, MODE, SET buttons

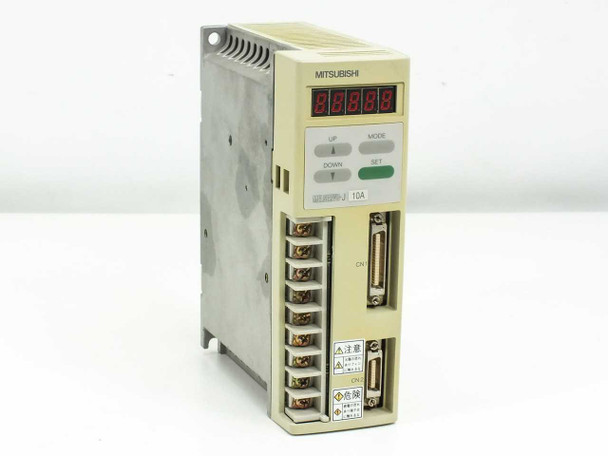

- Connectors: CN1 D-sub (upper), CN2 D-sub (lower), 8-position screw terminal block
- Mounting: DIN rail / panel mount
- Country of Manufacture: Japan (Mitsubishi Electric Corporation)
- Includes: servo amplifier unit only — no servo motor, cables, or mounting hardware
Applications
The Mitsubishi MELSERVO-J series servo amplifiers are used in industrial automation systems requiring precise motion control — including CNC machine tools, robotic arms, pick-and-place equipment, semiconductor handling, and automated assembly lines. The MR-J series communicates with a host controller (typically a Mitsubishi Motion controller or compatible PLC) via the CN1 connector for command input and encoder feedback, and CN2 for I/O signals. The 100W rating of the MR-J10A makes it suited to small-axis applications where compact size and accurate low-power servo control are needed. The MELSERVO-J line was a widely deployed generation of Mitsubishi servo products from the mid-to-late 1990s, designed to pair with Mitsubishi HC and HA series servo motors and Mitsubishi Motion/MELSEC controllers. These drives remain in use in legacy factory automation systems and are actively sought for maintenance and replacement of installed equipment.
This Mitsubishi MR-J10A MELSERVO-J AC Servo Drive has been inspected and appears to be in good used condition. The unit shows normal wear consistent with prior industrial use — the metal top plate has some surface oxidation and light discoloration, while the plastic housing and front panel are clean and intact. The LED display, pushbuttons, screw terminals, and CN1/CN2 D-sub connectors all appear undamaged. The rating label is clear and fully legible, with a 'PASSED' stamp visible. This unit has not been powered up or tested at our facility, but was pulled from a working environment where it was previously in service. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Mitsubishi Electric |
Model: |
MR-J10A |
MPN: |
MR-J10A |
Type: |
AC Servo Drive / Servo Amplifier |
SKU: |
46718 |
Series: |
MELSERVO-J |
Power Rating: |
100W |
AC Input Voltage: |
200-230VAC |
Input Phase: |
3-Phase |
Input Frequency: |
50/60Hz |
Output Current: |
1.1A |
Interface / Connectors: |
CN1 (D-sub), CN2 (D-sub), screw terminal block |
Display: |
5-digit red 7-segment LED |
Country/Region of Manufacture: |
Japan |
Form Factor: |
DIN Rail / Panel Mount |
Seller Notes: |
Unit only — no motor, cables, or mounting hardware included. |
Condition Notes: |
This Mitsubishi MR-J10A MELSERVO-J AC Servo Drive is in good used condition with normal wear. The top plate shows surface oxidation; housing, front panel, LED display, terminals, and D-sub connectors appear undamaged. |
