Description
Mitsubishi MD-60TE Line Cool Spot Air Conditioner 3-Phase 200V 50/60Hz 5.6kW
Portable spot cooling unit designed for targeted temperature control in industrial and commercial environments. Operates on 3-phase 200V power with cooling capacity of 5.6kW at 50Hz and 6.3kW at 60Hz.
Specifications & What's Included
- Model: MD-60TE-L
- Cooling Capacity: 5.6/6.3 kW (50/60 Hz)
- Power Requirements: 3-Phase 200V, 50/60 Hz
- Power Consumption: 2.00/2.70 kW
- Running Current: 7.2/8.7 A
- Refrigerant: R22, 1.25 kg

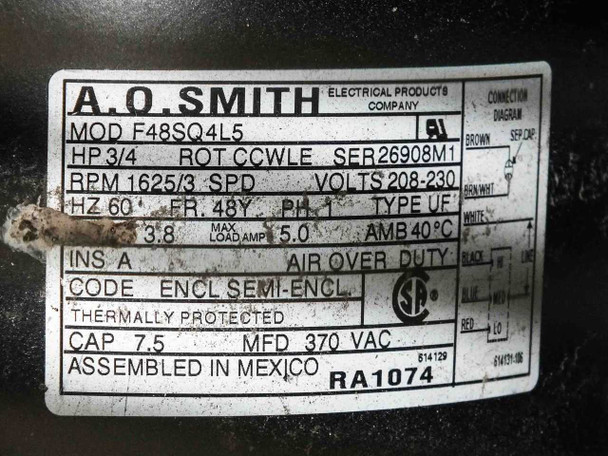

- Fan Motor: A.O. Smith F48SQ4L5, 3/4 HP, 1625 RPM
- Mobile wheeled cart included
Applications

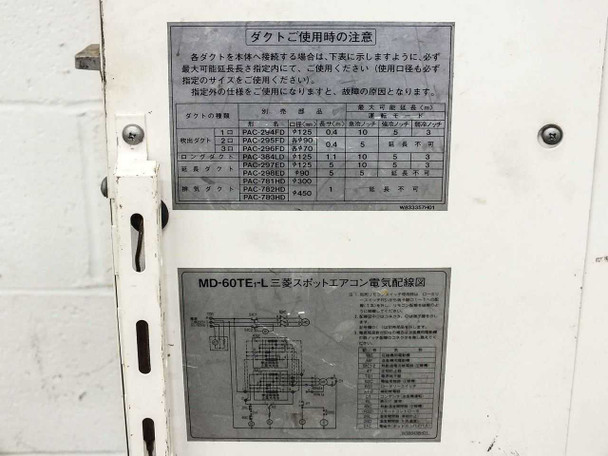

Spot air conditioners are used for localized cooling in warehouses, manufacturing facilities, data centers, and telecom equipment rooms. The portable cart design allows flexible positioning. Compatible with PAC-series duct accessories including PAC-294FD, PAC-064LD, and PAC-296LD for extended ducting configurations.
Condition: Used

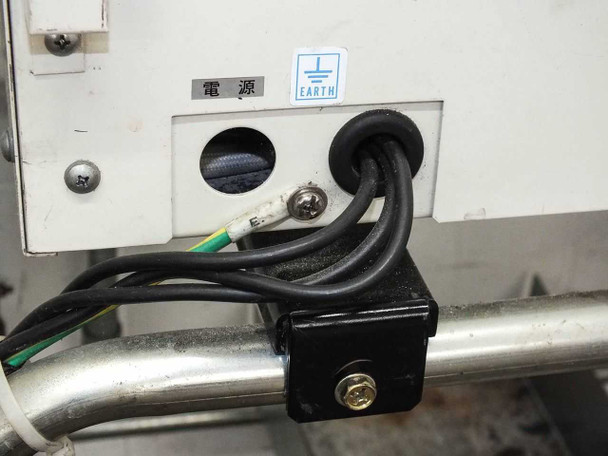

This Mitsubishi MD-60TE Line Cool spot air conditioner has been inspected and is in good overall condition, with one important note: the power cables have been cut at the unit's electrical inlet. The cabinet and chassis show normal wear consistent with industrial use — some scuffing and light surface oxidation are visible on the mobile cart frame and drain tray. The condenser coil on the rear appears intact and undamaged. The unit was pulled from a working environment where it was in active service. A new power connection will need to be made before operation (this is a 3-phase 200V unit — please ensure your facility has compatible service). The wheeled cart is included. Please view our photo set and contact us if you have any questions.
This Mitsubishi MD-60TE Line Cool spot air conditioner has been inspected and is in good overall condition, with one important note: the power cables have been cut at the unit's electrical inlet. The cabinet and chassis show normal wear consistent with industrial use — some scuffing and light surface oxidation are visible on the mobile cart frame and drain tray. The condenser coil on the rear appears intact and undamaged. The unit was pulled from a working environment where it was in active service. A new power connection will need to be made before operation (this is a 3-phase 200V unit — please ensure your facility has compatible service). The wheeled cart is included. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Mitsubishi |
Model: |
MD-60TE |
MPN: |
MD-60TE-L |
Secondary Model: |
MD-60 |
Type: |
Portable Spot Air Conditioner |
SKU: |
45564 |
Seller Notes: |
Includes mobile wheeled cart. Power cables are cut at the unit. |
Country/Region of Manufacture: |
Japan |
Power Requirements: |
3-Phase, 200V, 50/60 Hz |
Voltage: |
200V |
Phase: |
Three Phase |
Frequency: |
50/60 Hz |
Cooling Capacity: |
5.6/6.3 kW (50/60 Hz) |
Power Consumption: |
2.00/2.70 kW (50/60 Hz) |
Running Current: |
7.2/8.7 A (50/60 Hz) |
Power Factor: |
80/90% |
Refrigerant: |
R22, 1.25 kg |
Compressor Output: |
1.3 kW |
Fan Motor Output: |
0.35 kW |
Fan Motor Model: |
A.O. Smith F48SQ4L5 |
Fan Motor HP: |
3/4 HP |
Fan Motor RPM: |
1625/3 SPD |
Fan Motor Voltage: |
208-230V |
Fan Motor Frequency: |
60 Hz |
Fan Motor Frame: |
48Y |
Form Factor: |
Portable / Mobile Cart |
Condition: |
Used – Pulled from Working Environment, Power Cables Cut |
Compatible Duct Accessories: |
PAC-294FD, PAC-064LD, PAC-296LD and others (see side label) |
Condition Notes: |
Mitsubishi MD-60TE Line Cool spot air conditioner in good used condition; pulled from working environment. Power cables are cut at the inlet — requires rewiring before use. 3-phase 200V. Mobile cart included. |
