Miteq U/D-9502-61289 C-Band Up/Downconverter RF Unit 70 MHz-6.13 GHz Satcom

(No reviews yet) Write a Review
SKU:
49656
MPN:
U/D-9502-61289
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
42.00 LBS
Shipping:
Calculated at Checkout
  • Miteq U/D-9502-61289 C-Band Up/Downconverter RF Unit – front view of closed outdoor enclosure with Miteq Inc. Hauppauge NY label and CONVERTER RF UNIT designation
  • Miteq U/D-9502-61289 C-Band Up/Downconverter – rear/side view showing large aluminum finned heat sink spanning full width of enclosure

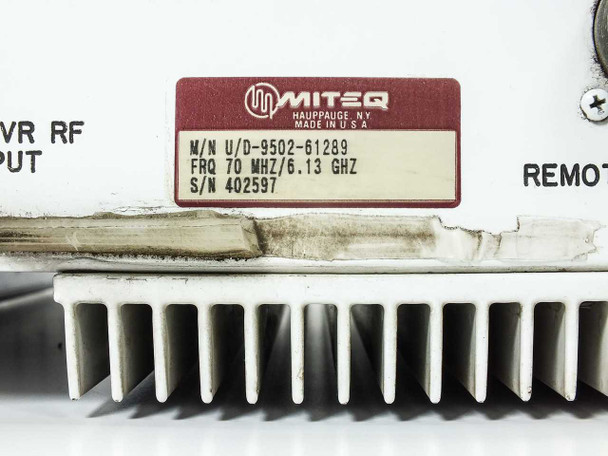

  • Miteq U/D-9502-61289 rating label closeup – shows M/N U/D-9502-61289, FRQ 70 MHZ/6.13 GHZ, S/N 402597, Made in USA, Hauppauge NY
  • Miteq U/D-9502-61289 – rear connector panel overview showing all circular multi-pin RF and control connectors, J1 through J18 labeled
  • Miteq U/D-9502-61289 – rear panel left half closeup showing DNCONV ATTEN, J15 XCVR RF OUTPUT, J16 INPUT, J17 OUTPUT, U-LINK, J2 IF OUTPUT, J1 XCVR RF INPUT, J6 REMOTE INTERFACE, STATUS/REDUNDANCY ALARM connectors
  • Miteq U/D-9502-61289 – rear panel right half closeup showing J18 INPUT, J17 OUTPUT, J10 DC POWER INPUT, UPCONV ATTEN, J3 IF INPUT, J4 RF OUTPUT, J6 REMOTE INTERFACE, STATUS/REDUNDANCY ALARM connectors with Miteq label

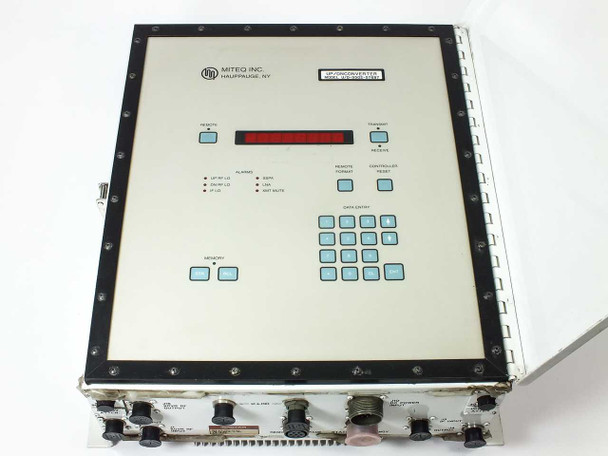

  • Miteq U/D-9502-61289 – front panel of controller/display unit showing LED alphanumeric display, alarm indicators (UP RF LO, DN RF LO, IF LO, SSPA, LNA, XMT MUTE), REMOTE FORMAT, CONTROLLER RESET buttons, and DATA ENTRY keypad
  • Miteq U/D-9502-61289 front panel closeup – UP/DNCONVERTER MODEL U/D-9502-57687 label, LED display bar, REMOTE and TRANSMIT/RECEIVE buttons visible
  • Miteq U/D-9502-61289 front panel keypad closeup – numeric DATA ENTRY keypad (0-9, CL, ENT), MEMORY STR/RCL buttons, REMOTE FORMAT and CONTROLLER RESET buttons, alarm LED indicators

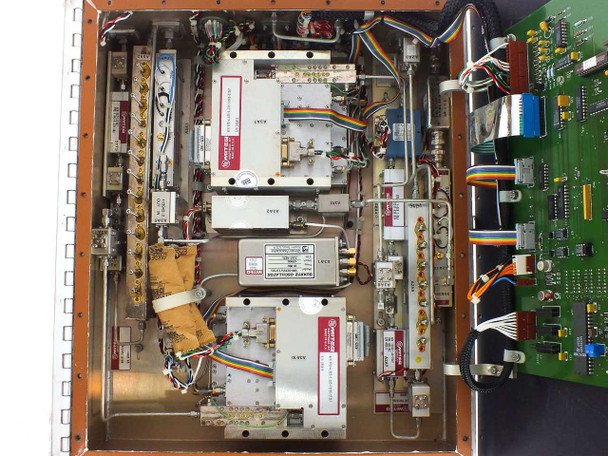

  • Miteq U/D-9502-61289 – internal view with enclosure lid open showing multiple RF module assemblies, bandpass filter cans, SMA interconnect cables, Wenzel oscillator, and wiring harnesses mounted to chassis
  • Miteq U/D-9502-61289 – control board M/N 117908 removed and photographed separately, showing full green PCB with ICs, connectors, and ribbon cable harnesses
$1,100.00
Was: $2,200.00
Current Stock: 1

Sold Out

Description

Miteq U/D-9502-61289 C-Band Up/Downconverter RF Unit 70 MHz-6.13 GHz Satcom

C-Band up/downconverter RF unit for satellite ground station applications. Converts between 70 MHz intermediate frequency and C-Band RF frequencies for uplink (5.845–6.425 GHz) and downlink (3.625–4.2 GHz) operations in an outdoor weatherproof enclosure.

Specifications & What's Included

  • Frequency Range: 70 MHz IF to 6.13 GHz RF
  • C-Band TX: 5.845–6.425 GHz; C-Band RX: 3.625–4.2 GHz
  • Enclosure: 19" x 17" x 6.5" outdoor wall-mount weatherproof
  • Internal modules: Control board, IF/upconverter, C-Band filters, NFS converters, LO modules, 10 MHz reference oscillator, RF tray
  • Interfaces: Remote control, U-Link, status/redundancy alarm outputs, DC power input
  • Front panel: LED display, numeric keypad, mode buttons

Applications

Used in satellite ground stations, VSAT networks, teleports, and carrier facilities for C-Band single-channel-per-carrier (SCPC) and time-division multiple access (TDMA) communications. Typical of equipment deployed at regional teleports and private earth stations for satellite transponder access during the 1990s through 2010s.

Condition: Used
This Miteq U/D-9502-61289 C-Band Up/Downconverter RF Unit has been inspected and is in good condition. It was pulled from a working satellite ground station environment where it was in active use and functional. The outdoor enclosure shows normal wear consistent with field installation — some paint scuffing and minor surface soiling on the enclosure exterior and heat sink fins, and paint loss at several connector panel edges as visible in the photos. The internal RF modules, filter assemblies, control board, and wiring harnesses appear intact and complete. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Miteq
Model:
U/D-9502-61289
Secondary Model:
U/D-9502-57687
MPN:
U/D-9502-61289
SKU:
49656
Type:
C-Band Up/Downconverter RF Unit
Condition:
Used – Pulled from Working Environment
Frequency Range:
70 MHz – 6.13 GHz
IF Frequency:
70 MHz
RF Frequency (Uplink):
5.845–6.425 GHz (C-Band TX)
RF Frequency (Downlink):
3.625–4.2 GHz (C-Band RX)
Enclosure Type:
Outdoor Weatherproof Enclosure
Form Factor:
Outdoor Enclosure / Wall-Mount
Dimensions:
19" x 17" x 6.5"
Connector Types:
Multi-pin circular (J1–J18), SMA/coax RF ports
Interfaces:
Remote Interface, Status/Redundancy Alarm, U-Link, DC Power Input
Control Interface:
Remote Interface (J6), U-Link (J16/J17)
Alarm Outputs:
Status/Redundancy Alarm; UP RF LO, DN RF LO, IF LO, SSPA, LNA, XMT MUTE
Front Panel:
LED display, numeric keypad, REMOTE/TRANSMIT/RECEIVE/MEMORY buttons
Country/Region of Manufacture:
United States
Included: Control Board:
Miteq M/N 117908 (Qty 1)
Included: IF/Upconverter Module:
Miteq M/N UDM9550-57687, 70 MHz (Qty 1)
Included: BPF C-Band RX:
Miteq M/N FLT-112385, 3.625–4.2 GHz (Qty 1)
Included: BPF C-Band TX:
Miteq M/N FLT-112387, 5.845–6.425 GHz (Qty 1)
Included: NFS Converter Module:
Miteq M/N NFS 4.625-5.205-100KS-57687 (Qty 2)
Included: 1080 MHz LO Module:
Miteq M/N 113938-1.08-57687, 1080 MHz (Qty 1)
Included: 1150 MHz LO Module:
Miteq M/N 117503-1150, 1150 MHz (Qty 1)
Included: Quartz Oscillator:
Wenzel Associates 500-02755/117321, 10 MHz (Qty 1)
Included: RF Tray:
Miteq M/N RF TRAY / 57687 (Qty 1)
Application:
Satellite Ground Station, VSAT, Teleport, C-Band SCPC/TDMA
Seller Notes:
Complete RF unit in outdoor enclosure with full internal module set as listed.
Condition Notes:
Miteq U/D-9502-61289 C-Band Up/Downconverter RF Unit pulled from a working satellite ground station environment, in use and functional. Inspected; good condition with normal field wear on enclosure exterior.
