Miteq DN8000/10268 RF Satcom Downconverter 2.2-2.3 GHz 70MHz IF w/ LPNF-20

(No reviews yet) Write a Review
SKU:
39412
MPN:
DN8000/10268
Condition:
Used
Availability:
Usually ships within 1–2 business days.
Weight:
25.00 LBS
Shipping:
Calculated at Checkout

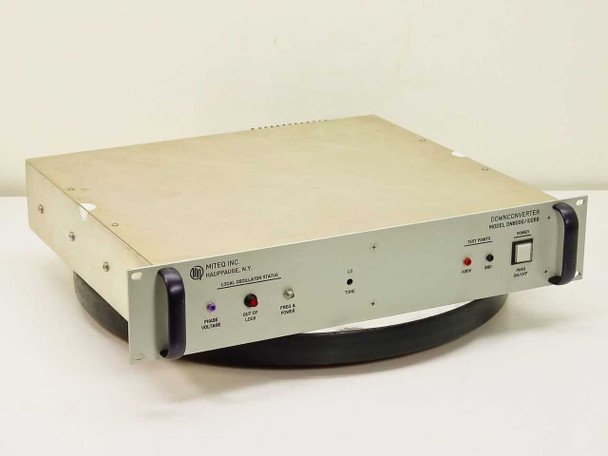

  • Miteq DN8000/10268 RF Satcom Downconverter – front panel three-quarter view showing Local Oscillator Status indicators and POWER button
  • Miteq DN8000/10268 Downconverter – front panel close-up showing MITEQ INC. Hauppauge N.Y. logo and Local Oscillator Status panel with Phase Voltage, Out of Lock, and Freq & Power indicators

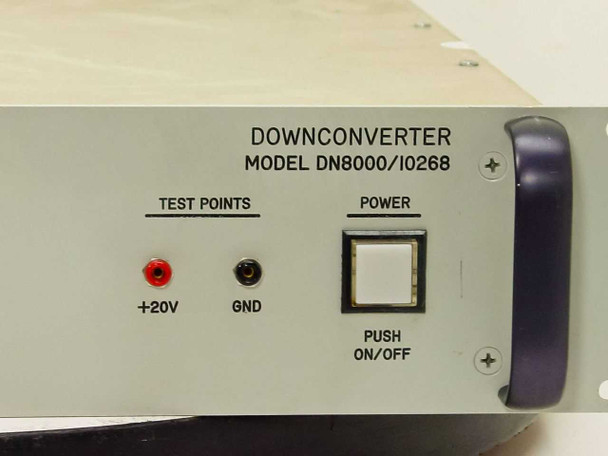

  • Miteq DN8000/10268 Downconverter – right-side front panel showing model label, TEST POINTS (+20V, GND), and POWER push on/off button

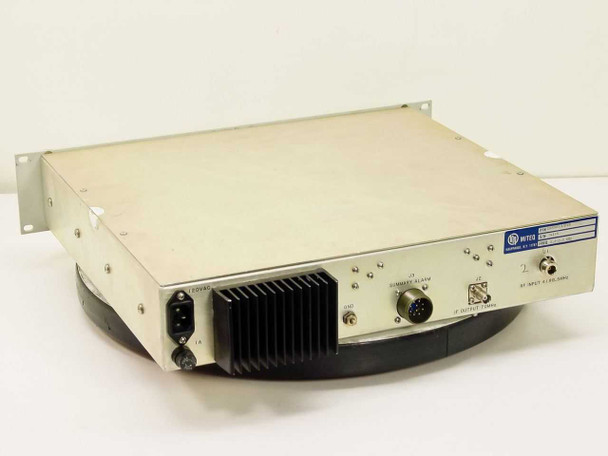

  • Miteq DN8000/10268 Downconverter – rear three-quarter view showing J1 RF input, J2 IF output, J3 Summary Alarm connector, power inlet, and heatsink

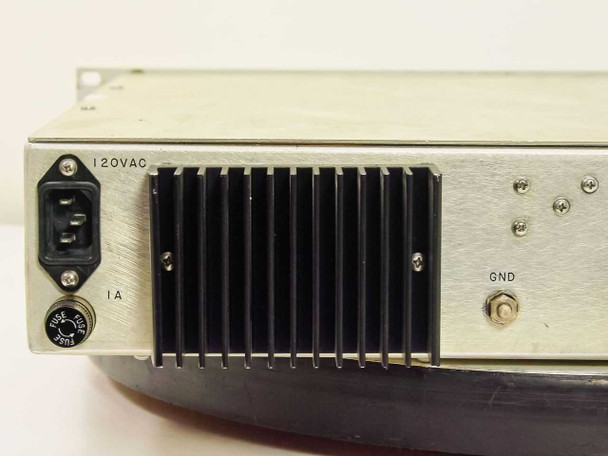

  • Miteq DN8000/10268 Downconverter – rear left panel close-up showing 120VAC IEC power inlet, 1A fuse holder, heatsink fins, and GND terminal
  • Miteq DN8000/10268 Downconverter – rear panel close-up showing blue Miteq label (P/N DN8000/10268, S/N 74169, FREQ 2.2–2.3 GHz), J3 Summary Alarm multi-pin connector, J2 IF Output 70 MHz BNC, and J1 RF Input 4198.5 MHz SMA
  • Miteq DN8000/10268 label close-up – P/N DN8000/10268, S/N 74169, FREQ 2.2–2.3 GHz, Miteq Hauppauge N.Y. 11787, with J1 RF Input connector visible below
  • Miteq DN8000/10268 Downconverter – top cover removed showing internal modules including Miteq power supply, circuit boards, XTO oscillator module, LPNF filter, and SMA-interconnected RF assembly

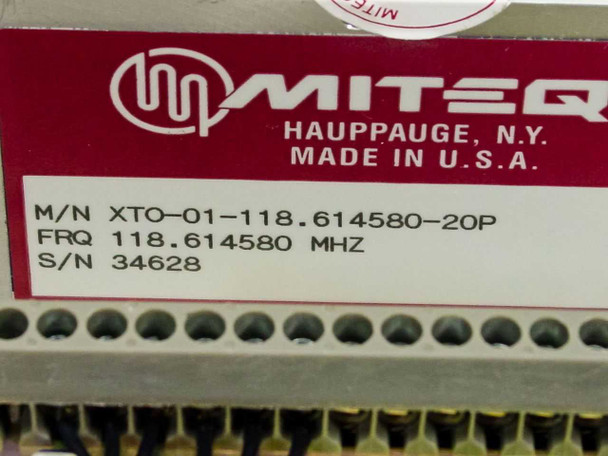

  • Miteq XTO-01-118.614580-20P internal oscillator module label – M/N XTO-01-118.614580-20P, FRQ 118.614580 MHz, S/N 34628, Made in U.S.A.

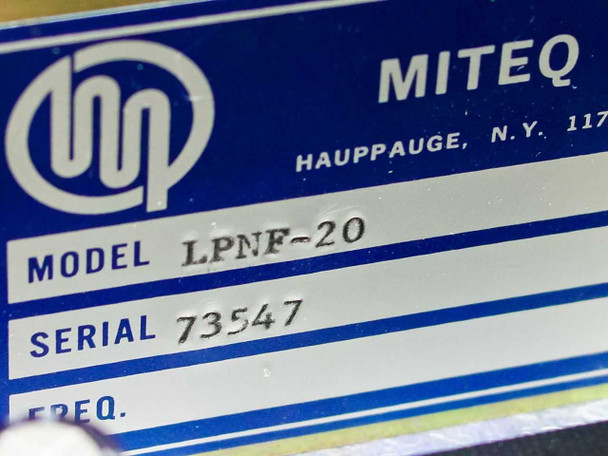

  • Miteq LPNF-20 internal module label – Model LPNF-20, Serial 73547, Miteq Hauppauge N.Y.
  • Miteq DN8000/10268 RF Satcom Downconverter 2.2~2.3GHz with LPNF-20 ZTO PLM Parts
  • Miteq DN8000/10268 RF Satcom Downconverter 2.2~2.3GHz with LPNF-20 ZTO PLM Parts
  • Miteq DN8000/10268 RF Satcom Downconverter 2.2~2.3GHz with LPNF-20 ZTO PLM Parts
  • Miteq DN8000/10268 RF Satcom Downconverter 2.2~2.3GHz with LPNF-20 ZTO PLM Parts
$175.00
Was: $350.00
Current Stock: 3

Sold Out

Description

Miteq DN8000/10268 RF Satcom Downconverter 2.2-2.3 GHz 70MHz IF w/ LPNF-20

Satellite communication downconverter that converts RF signals in the 2.2–2.3 GHz band to a 70 MHz intermediate frequency output. Mounts in standard 19-inch rack configuration.

Specifications & What's Included

  • RF Input Frequency: 2.2–2.3 GHz (SMA connector)
  • IF Output Frequency: 70 MHz (BNC connector)
  • LO Reference: 118.614580 MHz
  • Power Requirements: 120 VAC, 1A
  • Includes all internal modules: LPNF-20 low-noise filter, XTO-01 local oscillator, PLM-4269.625A phase lock module, AM-1039M amplifier, and PS-120-HC24 power supply
  • Front panel controls: TUNE adjust, POWER switch; indicators for phase voltage, lock status, and LO status

Applications

Downconverters of this type are used in satellite earth stations and telecom receive systems to process C-band and Ku-band satellite downlink signals. The DN8000 series supported S-band and C-band satellite communications ground equipment. These units are commonly found in fixed satellite service (FSS) installations, broadcast contribution networks, and data receiving terminals where signal frequency translation and amplification are required before intermediate frequency processing.

Condition: Used
This Miteq DN8000/10268 RF Satcom Downconverter has been inspected and is in good condition. It was pulled from a working environment where it was actively in use. The chassis is clean with only minor cosmetic wear typical of rackmount equipment. Internal modules — including the LPNF-20, XTO oscillator, PLM phase lock module, and power supply — are all present and intact as visible in the photos. The rear connectors (J1 RF input, J2 IF output, J3 alarm) and front-panel controls show no significant damage. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Miteq
Model:
DN8000/10268
MPN:
DN8000/10268
Secondary Model:
LPNF-20
SKU:
39412
Type:
RF Satellite Downconverter
RF Input Frequency:
2.2–2.3 GHz
IF Output Frequency:
70 MHz
LO Reference Frequency:
118.614580 MHz
RF Input Port:
J1 – RF Input 4198.5 MHz (SMA connector)
IF Output Port:
J2 – IF Output 70 MHz (BNC connector)
Alarm/Control Port:
J3 – Summary Alarm (multi-pin circular)
Power Requirements:
120 VAC, 1A
Local Oscillator Module:
Miteq XTO-01-118.614580-20P, 118.614580 MHz
Low Noise Filter Module:
Miteq LPNF-20
Phase Lock Module:
Miteq PLM-4269.625A-20P-5942
Amplifier Module:
Miteq AM-1039M-7924
Power Supply Module:
Miteq PS-120-HC24-2.4-10268
Additional Module:
Miteq M45-2A-0150M-20P
Front Panel Indicators:
Phase Voltage, Out of Lock, Freq & Power (LO Status)
Front Panel Controls:
TUNE adjust; POWER push on/off; test points +20V, GND
Form Factor:
Rackmount
Country/Region of Manufacture:
United States
Condition:
Used – Pulled from Working Environment
Seller Notes:
Includes internal Miteq modules: LPNF-20, XTO-01-118.614580-20P, PLM-4269.625A-20P-5942, AM-1039M-7924, PS-120-HC24-2.4-10268
Condition Notes:
Miteq DN8000/10268 RF Satcom Downconverter inspected and in good condition. Pulled from a working environment where it was actively in use. All internal Miteq modules present. Minor cosmetic wear only.
View AllClose
