Misumi ME33L3 Solid State Sensor MSCCA Pneumatic Compact Air Cylinder 28VDC
This listing is for a pair (qty 2) of Misumi ME33L3 solid state sensors designed for use with MSCCA series pneumatic compact air cylinders. The ME33L3 is a groove-mount position sensor that detects the piston position within the cylinder body, providing a reliable switching signal to a control system when the actuator reaches the target stroke position.
Specifications & What's Included
- Manufacturer: Misumi
- Model: ME33L3
- Sensor Type: Solid State (NPN output)
- Compatible Cylinder Series: MSCCA Pneumatic Compact Air Cylinder
- Operating Voltage: DC 10–28V
- Operating Current: 0.1–40mA
- Circuit Wiring: Brown (+), Black (OUT), Blue (–)

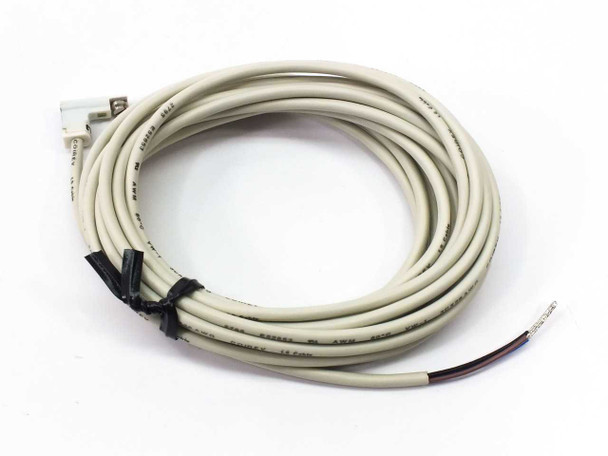

- Connection: Pre-wired with long cable, bare wire leads
- Mounting: Side-mount / cylinder groove style

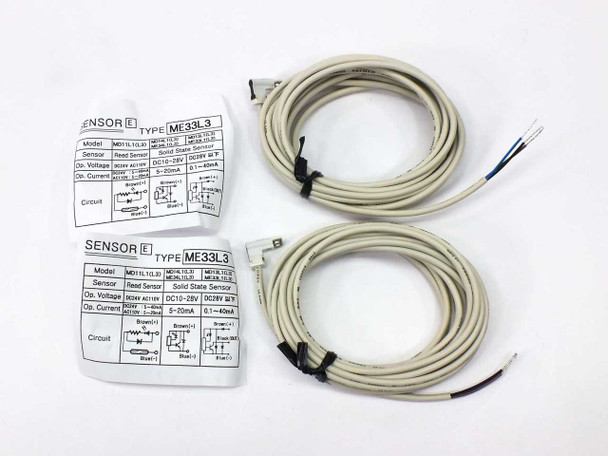

- Quantity: 2 sensors (pair)
- Spec label cards included with each sensor
Applications
Pneumatic cylinder sensors like the ME33L3 are standard components in factory automation and industrial motion control systems. They mount directly into the slot or groove on the outside of a compact air cylinder and detect the magnetic field of the piston's built-in magnet as it travels through the bore, signaling end-of-stroke or intermediate positions to a PLC or control system. The solid state NPN output type is widely used in Japanese and international automation equipment — common in pick-and-place machinery, assembly lines, pneumatic clamping fixtures, robotic tooling, and general factory automation cells. The MSCCA series is a compact, space-saving cylinder format from Misumi commonly used where installation space is limited. These sensors are current, actively used components in modern industrial automation environments.
This pair of Misumi ME33L3 Solid State Sensors is new but may be out of the original packaging. The sensors appear unused and are in clean, uninstalled condition. Both units and their pre-wired cables show no signs of use or wear. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Misumi |
Model: |
ME33L3 |
MPN: |
ME33L3 |
Type: |
Solid State Pneumatic Cylinder Sensor |
SKU: |
49099 |
Sensor Type: |
Solid State |
Compatible With: |
MSCCA Pneumatic Compact Air Cylinder |
Circuit Output: |
NPN (Brown+, Black OUT, Blue-) |
Quantity: |
2 (Pair) |
Cable Type: |
Pre-wired, bare wire leads |
Mounting Style: |
Side-mount / cylinder groove |
Seller Notes: |
Sold as a pair (qty 2). New but may be out of original packaging. |
Country/Region of Manufacture: |
Japan |
Condition Notes: |
Misumi ME33L3 Solid State Sensors (Qty 2) are new but may be out of original packaging. Unused and in clean condition. Please contact us with any questions. |
