Midwestern Instruments MCR308BTD0X Chart Recorder A95X41072-01 105-125V 150W

(No reviews yet) Write a Review
SKU:
47186
MPN:
A95X41072-01
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
40.00 LBS
Shipping:
Calculated at Checkout

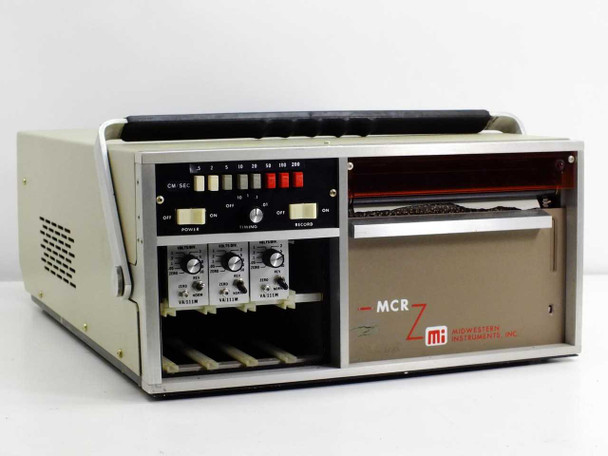

  • Midwestern Instruments MCR308BTD0X chart recorder front panel — three VA/111M channel modules, power and record switches, CM/SEC chart speed selector, MCR branding

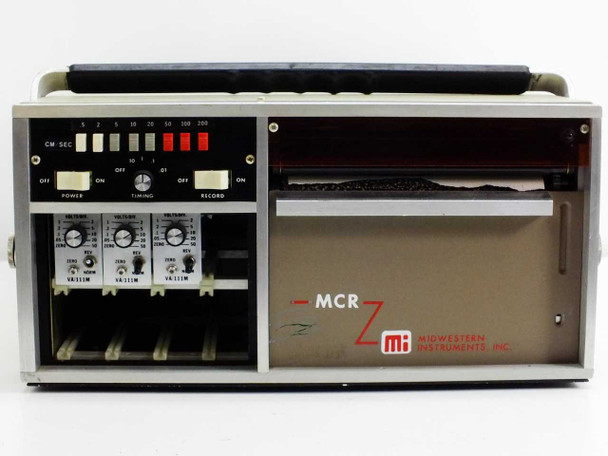

  • Midwestern Instruments MCR308BTD0X front panel and paper chart drive section — CM/SEC speed indicator lights, power/timing/record controls, three VA/111M galvo modules visible

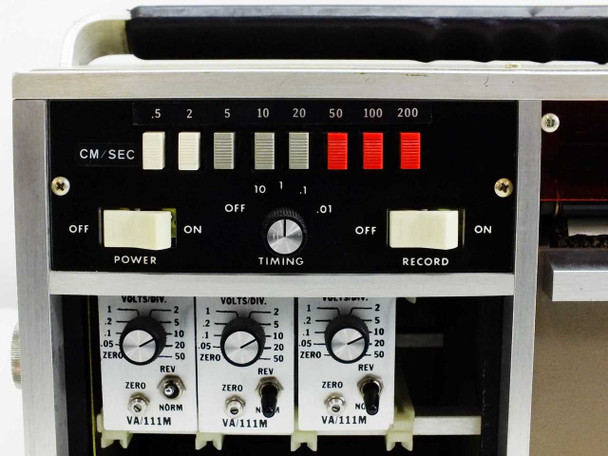

  • MCR308BTD0X front panel close-up — CM/SEC speed selector with indicator lights (0.5 through 200), power switch, timing rotary knob, record switch, and three VA/111M Volts/Div modules

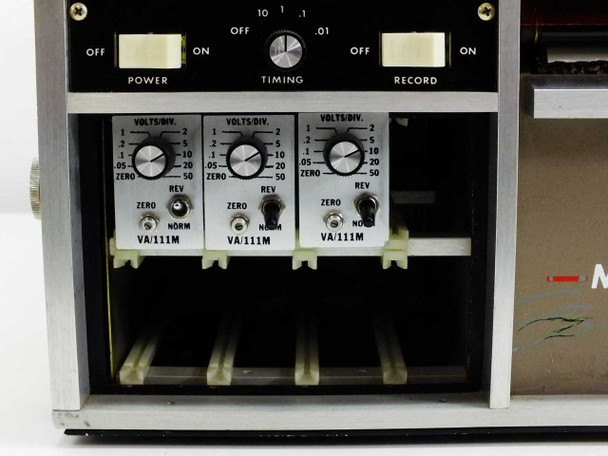

  • MCR308BTD0X channel module close-up — three VA/111M modules each with Volts/Div selector, Zero knob, REV toggle, and NORM/ZERO switch; power and timing controls above

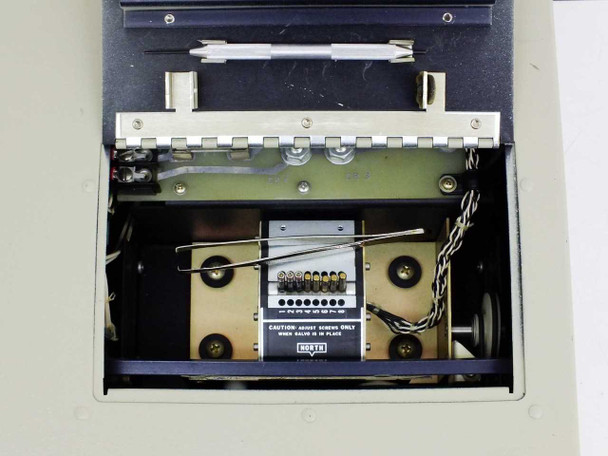

  • MCR308BTD0X interior top view with lid open — paper drive mechanism, galvo pen carriage, and Nutek pen calibration/adjustment block visible

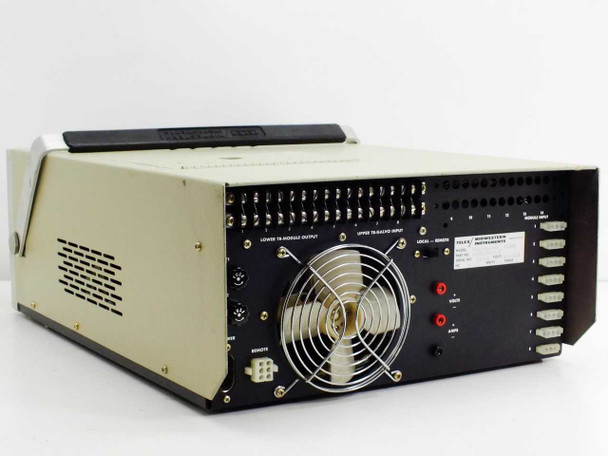

  • Midwestern Instruments MCR308BTD0X rear panel — large cooling fan, TB-Module Output and TB-Galvo Input terminal strips, Remote connector, Volts/Amps banana jacks, ventilation louvers

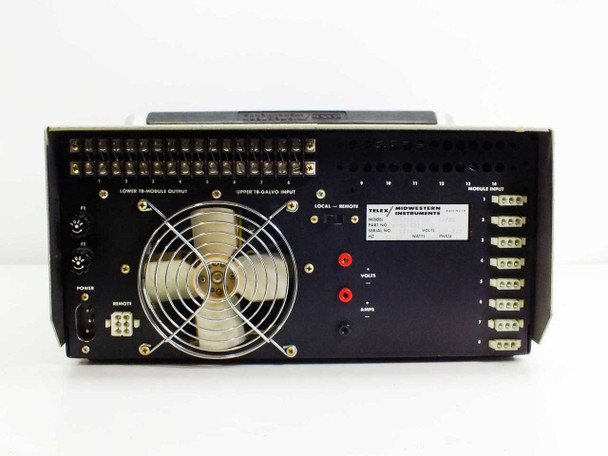

  • MCR308BTD0X rear panel close-up — Lower TB-Module Output and Upper TB-Galvo Input terminal blocks, large cooling fan, Local/Remote switch, F1/F2 fuse holders, Power and Remote connectors
  • Telex / Midwestern Instruments rating plate — Model MCR308BTD0X, Part No. A95X41072-01, Serial No. 11492, Volts 105-125, Hz 50-60, Watts 150, Phase 1, Made in USA, dated 11/82

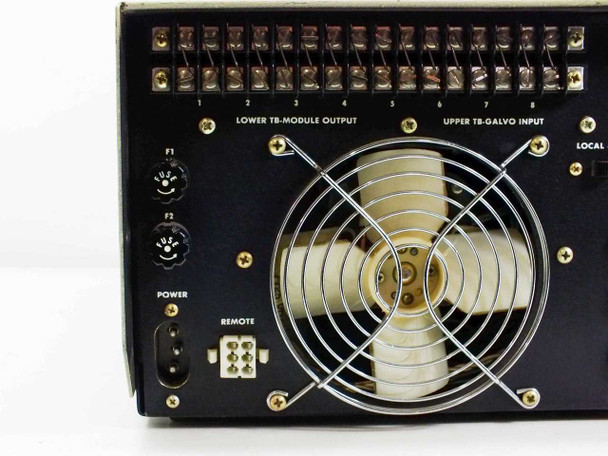

  • MCR308BTD0X rear panel left section — F1/F2 fuse holders, Power IEC connector, Remote multi-pin connector, Lower TB-Module Output terminal strip, large rear cooling fan with wire guard
  • MCR308BTD0X rear panel right section — Telex/Midwestern Instruments rating label, Local/Remote toggle switch, Volts and Amps banana jacks, Module Input numbered terminal blocks 1-8
$75.00
Was: $150.00
Current Stock: 1

Sold Out

Description

Midwestern Instruments MCR308BTD0X Chart Recorder A95X41072-01 105-125V 150W

Galvanometric strip chart recorder with three input channels for simultaneous data logging. Records analog signals onto paper strip at selectable speeds and voltage scales.

Specifications & What's Included

  • Model: MCR308BTD0X | MPN: A95X41072-01
  • Three VA/111M channel modules installed
  • Voltage: 105-125V, 150W, 50-60Hz single phase
  • Chart speeds: 0.5 to 200 cm/sec (8 settings)
  • Input range: 0.05 to 50 Volts/Div per channel
  • Timing control: 10, 1, 0.1, 0.01 settings
  • Local/Remote operation via rear panel switch
  • Banana jack inputs/outputs, terminal block connections
  • Manufactured November 1982

Applications

Strip chart recorders were used extensively in industrial monitoring, test labs, and telecommunications for continuous analog signal documentation. This three-channel unit could record voltage, current, or sensor outputs simultaneously. Common applications included process monitoring, equipment diagnostics, and data acquisition in control systems before digital recording became standard.

Condition: For Parts or Not Working
This Midwestern Instruments MCR308BTD0X Chart Recorder (part no. A95X41072-01) is being sold as-is for parts or repair. We are not able to confirm working order and it is not guaranteed functional. The unit shows general wear consistent with its age — cosmetic scuffs and discoloration on the outer case are visible in the photos. All three VA/111M channel modules are present and installed. The rear terminal strips, cooling fan, fuse holders, and banana jacks appear intact. Please view our photo set and contact us if you have any questions.
