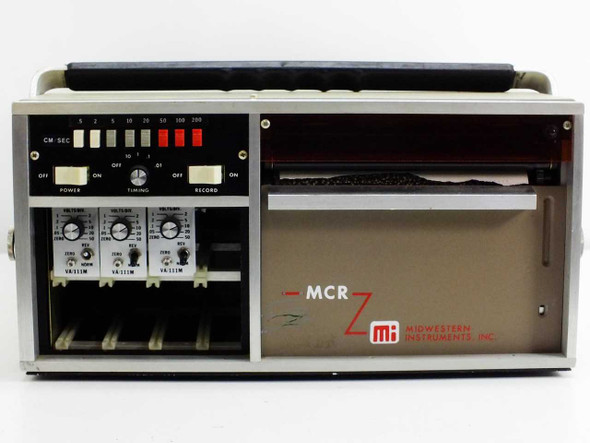

Midwestern Instruments MCR308BTD0X Chart Recorder A95X41072-01 105-125V 150W

Midwestern Instruments

SKU:

47186

Availability:

Usually ships within 1-2 business days.

Weight:

40.00 LBS

Brand:

Midwestern Instruments

Model:

MCR308BTD0X

MPN:

A95X41072-01

Secondary Model:

MCR308BTD0X

Type:

Galvanometric Strip Chart Recorder

SKU:

47186

Manufacturer / Brand Family:

Telex / Midwestern Instruments, Inc.

Country/Region of Manufacture:

United States

Voltage:

105-125V

Power:

150W

Frequency:

50-60Hz

Phase:

Single Phase (1PH)

Number of Channels:

3

Channel Module Type:

VA/111M (3 modules installed)

Chart Speed Range:

0.5, 2, 5, 10, 20, 50, 100, 200 cm/sec

Timing Control:

10, 1, 0.1, 0.01 settings via rotary switch

Volts/Div Range (per channel):

0.05, 1, 2, 5, 10, 20, 50 Volts/Div

Rear Connections:

TB-Module Output, TB-Galvo Input, Module Input terminals

Rear I/O:

Volts and Amps banana jacks, Power, Remote connectors

Local/Remote Switch:

Yes — Local/Remote toggle on rear panel

Form Factor:

Benchtop / Portable with carry handle

Date of Manufacture:

11/82 (November 1982)

Condition:

As-Is / For Parts or Not Working

Seller Notes:

Sold as-is for parts or repair. Three VA/111M channel modules installed.

Condition Notes:

Midwestern Instruments MCR308BTD0X Chart Recorder sold as-is for parts or repair. Not tested or guaranteed functional. Three VA/111M modules installed. General cosmetic wear. Please contact us with questions.
