Description
Pasternack PE3455-60 RG-142B/U N-Male to N-Male RF Microwave Coax 5ft 150cm
The Pasternack PE3455-60 is an RG-142B/U coaxial cable assembly fitted with crimped N-Male connectors on both ends. RG-142B/U is a double-shielded, 50-ohm coaxial cable with a silver-plated copper-clad steel center conductor and a PTFE (Teflon) dielectric, giving it good performance at microwave frequencies and broad temperature tolerance. The jacket on this cable is marked PIW-STYLE RG142-B/U, confirming the high-grade construction. At approximately 150 cm (5 ft) in length and 0.193 inches in diameter, it is a practical mid-length jumper for bench and rack applications.
Specifications & What's Included
- Manufacturer: Pasternack (Pasternack Enterprises)
- Part Number: PE3455-60
- Cable Type: RG-142B/U (double-shielded)
- Jacket Marking: PIW-STYLE RG142-B/U 160-224-00
- Impedance: 50 Ohm
- Connector Type: N-Male (N-Type Male) on both ends
- Termination: Crimped connectors
- Cable Length: Approximately 150 cm (~5 ft)
- Cable Diameter: 0.193 in (~5 mm)
- Dielectric: PTFE (Teflon) — standard for RG-142B/U
- Center Conductor: Silver-plated copper-clad steel — standard for RG-142B/U
- Includes: Cable assembly only
Applications
RG-142B/U is widely used in RF and microwave test and measurement setups, connecting instruments such as spectrum analyzers, signal generators, vector network analyzers, and power meters. N-type connectors are a standard interface in RF lab and field environments, commonly found on instruments and components operating from DC through several GHz. The double-shielding and PTFE construction of RG-142B/U make it a go-to cable for applications where low loss, phase stability, and resistance to wide temperature swings matter — including avionics, military/mil-spec environments, and high-frequency benchtop work. This type of cable assembly is still in active everyday use across RF labs, telecommunications test stations, and microwave R&D environments.

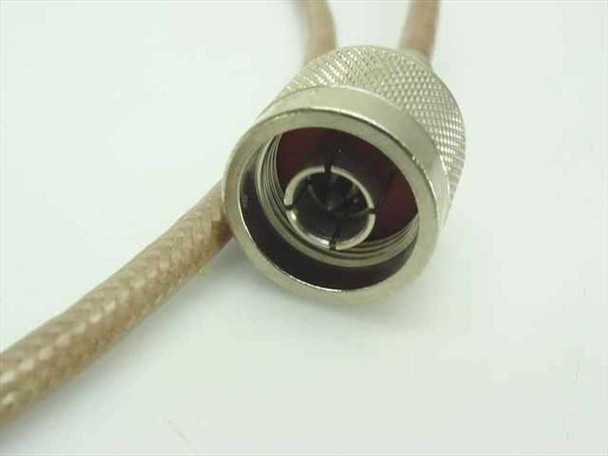

This Pasternack PE3455-60 RG-142B/U RF coaxial cable is in good used condition. Both N-Male connectors appear clean and intact with no visible damage to the pins or mating surfaces. The braided jacket shows normal handling wear with no cuts, kinks, or exposed shielding. Length is approximately 150 cm (5 ft). Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Pasternack |
Model: |
PE3455-60 |
MPN: |
PE3455-60 |
Type: |
RF Coaxial Cable Assembly |
SKU: |
24752 |
Cable Type: |
RG-142B/U |
Cable Jacket Marking: |
PIW-STYLE RG142-B/U 160-224-00 |
Connector Type: |
N-Male (N-Type Male) |
Connector Configuration: |
N-Male to N-Male |
Number of Connectors: |
2 |
Connector Termination: |
Crimped |
Cable Length: |
Approx. 150 cm (5 ft) |
Cable Diameter: |
0.193 in (~5 mm) |
Application: |
RF, Microwave, Test & Measurement |
Shielding: |
Double-shielded (RG-142B/U standard) |
Impedance: |
50 Ohm |
Seller Notes: |
Cable only — no accessories included. |
Country/Region of Manufacture: |
United States |
Condition Notes: |
This Pasternack PE3455-60 RG-142B/U N-Male coaxial cable is in good used condition. Both crimped N-Male connectors are clean and intact. Jacket shows normal handling wear — no cuts or damage. ~150 cm (5 ft) long. |
