Microdyne 1400-MR Telemetry Receiver 50-90 MHz w/ 1420-I & 1411-VT(70) Plug-Ins

Microdyne 1400-MR Telemetry Receiver 50-90 MHz w/ 1420-I & 1411-VT(70) Plug-Ins

The Microdyne 1400-MR is a modular FM/PM telemetry receiver designed for professional ground-station data acquisition. Built around a plug-in architecture, the 1400-MR accepts interchangeable RF tuner and IF filter modules, allowing the receiver to be configured for different frequency bands and bandwidths. This unit is equipped with two plug-in modules and has one empty slot (Slot A).

Specifications & What's Included

• Manufacturer: Microdyne Corporation, Ocala, Florida — Made in USA
• Model: 1400-MR (Part No. 105-316-81)
• Type: Modular FM/PM Telemetry Receiver
• Power Input: 120VAC, 50–400Hz, 1.5A (rear connector J1)
• Plug-In Module 1: 1420-I IF Filter Amplifier Series — 100 kHz bandwidth

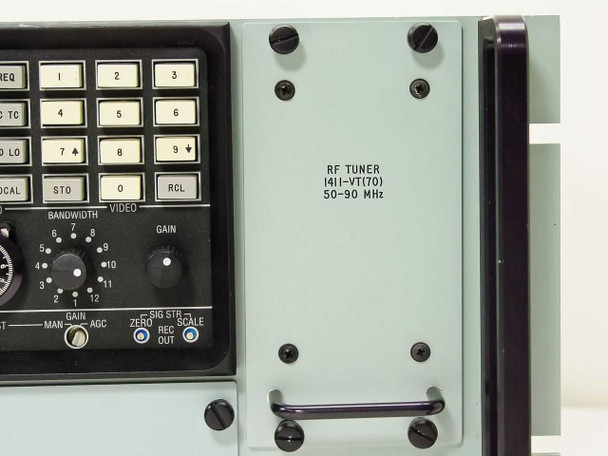

• Plug-In Module 2: 1411-VT(70) RF Tuner — 50–90 MHz frequency range
• Slot A: Empty (no module installed)
• Front panel: Center frequency display, RF frequency (MHz/kHz), demodulator section (DEG, MHz, kHz deviation), Video VP-P, Carrier level, Video Bandwidth (MHz/kHz), AGC (ms) scale
• 2nd LO modes: XTAL, VFO, APC, AFC, EXT
• Front panel controls: Power ON, Mode (REC/PBK/CAL), Audio Gain, Bandwidth, Video Gain, 2nd LO Tune
• Numeric keypad: FREQ, AGC TC, 2nd LO, STO, RCL; CARRIER IND and THRESHOLD indicators

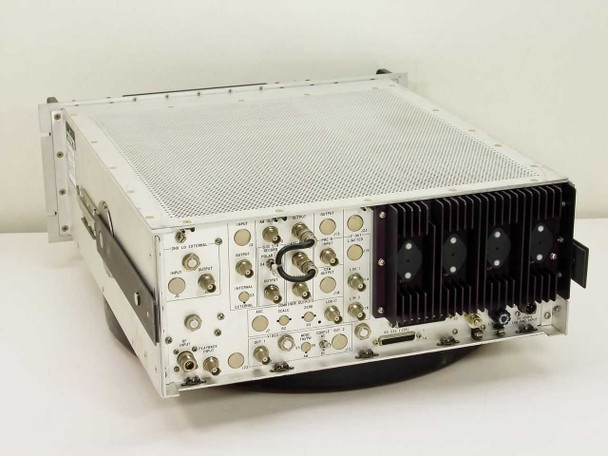

• Rear connector field: REF OSC Input (J3), AM Output, SDU Output (J17), Record Output (J13), IF Out Limited (J15/J23), Pre-D Output (J25), CFM Output (J18), LIN 1 (J14), LIN 2 (J16), AGC (J7), Combiner Outputs (Scale R2, Zero R3, Logic J9)
• Rear: Video outputs (OUT 1 J11, OUT 2 J12), MODE FM/PM switch (S5/S6), COUPLE AC/DC switch
• Rear: 2nd LO External Input/Output (J5/J6), RF Input (J2), Playback Input (J24)
• Rear: RS-232 Interface (J26, 14–20 pin), Accessory Connector (J20)
• MPU PCB: A23-U1, P/N 105-939-051
• PROM Configuration Date: 11/95
• Form Factor: Rackmount

Applications
