Microdyne

Microdyne 1151-D(B)(B) Anti-Sideband Wide Angle PM Demodulator Satcom RF

(No reviews yet) Write a Review
SKU:
39322
MPN:
1151-D B
Condition:
Used
Availability:
Usually ships within 1–2 business days.
Weight:
5.00 LBS
Shipping:
Calculated at Checkout
  • Microdyne 1151-D(B)(B) Wide Angle PM Demodulator – three-quarter front-right view showing aluminum enclosure and front panel controls
  • Microdyne 1151-D(B)(B) PM Demodulator – rear/side view showing D-Sub 25-pin P3 connector and PI and TI connector cutouts
  • Microdyne Corporation nameplate label showing model 1N51D(B)(B)D Wide Angle/Wide Band PM Demodulator, serial number 702, DEV 8465
  • Microdyne 1151-D(B)(B) front panel close-up showing Loop Bandwidth switch, Fine Tune dial, Loop Lock, Auto/Manual Search, PM Output, and indicator lights
  • Microdyne 1151-D(B)(B) rear panel close-up showing D-Sub 25-pin P3 gold connector and PI and TI mounting cutouts

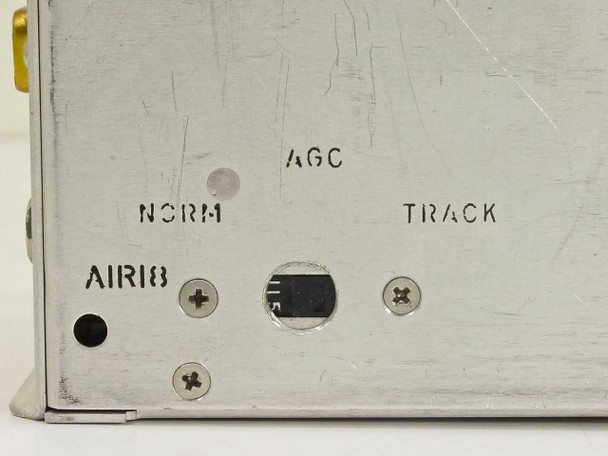

  • Microdyne 1151-D(B)(B) side panel showing AGC NORM/TRACK switch positions and AIRI8 marking
$200.00
Was: $400.00
Current Stock: 1

Sold Out

Description

Microdyne 1151-D(B)(B) Anti-Sideband Wide Angle PM Demodulator Satcom RF

Phase modulation demodulator module designed for satellite communications earth station systems. Recovers phase-modulated signals using wide-angle anti-sideband demodulation techniques with switchable loop bandwidth and dual-mode operation.

Specifications & What's Included

  • Model: 1151-D(B)(B); MPN: 1N51D(B)(B)D
  • Modulation: Phase Modulation (PM) anti-sideband wide angle demodulator
  • Loop Bandwidth: 10, 30, 100, 300, 1000 Hz (switchable)
  • Loop Modes: Open Loop / Closed Loop with Auto/Manual Search
  • AGC Modes: NORM / TRACK
  • Connector: D-Sub 25-pin rear panel with PI and TI connectors
  • Form Factor: Modular plug-in module
  • Unit only; no accessories included

Applications

Deployed in RF satcom earth station systems for signal demodulation and recovery. Commonly used in satellite ground terminals and telecom infrastructure where phase-modulated signals require demodulation across variable bandwidth conditions. The switchable loop bandwidth accommodates different satellite transponder configurations and link conditions.

Condition: Used
This Microdyne 1151-D(B)(B) Anti-Sideband Wide Angle PM Demodulator has been inspected and is in good used condition. It was pulled from a working satcom environment where it was in active use. The aluminum enclosure shows surface scratches and scuffing consistent with field service use, visible on the top and side panels. The front panel controls — including the Loop Bandwidth switch, Fine Tune dial, Loop Lock toggle, and Auto/Manual Search switch — are all present and appear intact. The rear D-Sub 25-pin (P3) connector is present and appears undamaged. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Microdyne
Model:
1151-D(B)(B)
MPN:
1N51D(B)(B)D
Type:
Wide Angle Anti-Sideband PM Demodulator
SKU:
39322
Condition:
Used – Pulled from Working Environment
Seller Notes:
Unit only; no accessories observed. Photos show unit as-received.
Country/Region of Manufacture:
United States
Form Factor:
Modular / Plug-In Module
Modulation Type:
Phase Modulation (PM)
Demodulator Mode:
Anti-Sideband Wide Angle / Wide Band
Loop Bandwidth Range:
10, 30, 100, 300, 1000 Hz (switchable)
Loop Modes:
Open Loop / Closed Loop
Search Mode:
Auto / Manual Search
AGC Modes:
NORM / TRACK
Output Type:
PM Output
Rear Connector:
D-Sub 25-pin (P3); PI and TI connectors
Front Controls:
Loop Bandwidth switch, Fine Tune dial, Loop Lock, Noise, BAL, Lock indicators
Application:
RF Satcom Earth Station Systems
Manufacturer Location:
Microdyne Corporation, Rockville, MD 20850
Condition Notes:
Microdyne 1151-D(B)(B) Wide Angle PM Demodulator. Inspected, in good used condition. Pulled from a working satcom environment. Surface scratches on enclosure; front-panel controls and rear D-Sub connector intact.
