The Microcom AX/9600 Plus is a 9600 baud external dial-up modem supporting MNP Class 6 error correction and data compression. It connects to a host computer via a DB-25 RS-232 serial port and to a standard telephone line via RJ-11 jacks. Manufactured by Microcom Inc. of Norwood, Massachusetts — the company that developed the MNP (Microcom Networking Protocol) standard — this modem predates the V.32 and V.34 ITU standards that later became universal.

Specifications & What's Included

• Manufacturer: Microcom Inc., Norwood, MA USA
• Model: AX/9600 Plus (Model AX)
• Data Rate: 9600 baud (9600 bps)
• Error Correction / Compression Protocol: MNP Class 6
• Host Interface: DB-25 RS-232 serial port (rear panel)
• Telephone Interface: 2x RJ-11 jacks (line in / phone pass-through)
• Power Requirement: 19 VAC, 0.80A, 60 Hz — proprietary power connector
• Front-Panel LEDs: PWR, TST, OH, HS, DTR, TXD, RXD
• Front-Panel Switch: T/D toggle

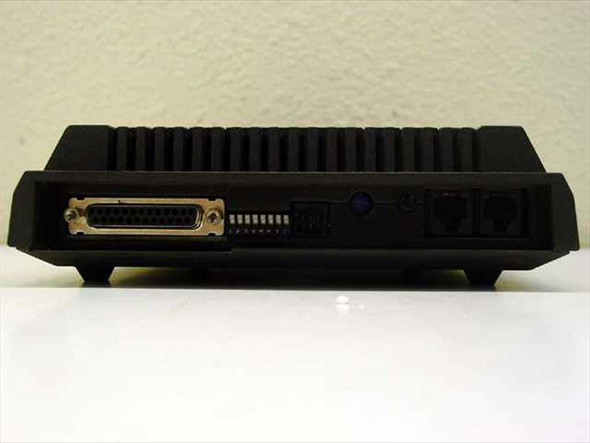

• Rear Panel: DB-25 serial port, DIP switch block, power jack, reset button, 2x RJ-11
• Form Factor: Desktop external unit, ribbed black plastic enclosure
• FCC Compliance: Part 15 Class A computing device
• Included: Modem unit only — power adapter NOT included (requires 19VAC 0.80A proprietary 6-pin adapter)
