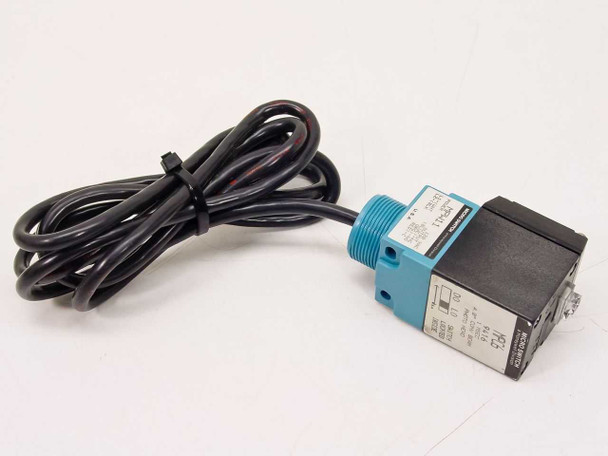

Honeywell Micro Switch MPC6 MPW11 Infrared Photoelectric Sensor 120VAC Relay
The Micro Switch MPC6 is a self-contained infrared photoelectric photo head that integrates both the transmitter and receiver in a single compact block-body housing. Paired with the MPW11 120 VAC power module, this assembly operates as a complete convergent-beam detection system. When the infrared beam is interrupted, the relay output switches — making it straightforward to detect the presence or passage of an object without a separate reflector target. An indicator light on the unit shows beam reflection status, simplifying alignment and setup in the field.
Specifications & What's Included
- Photo Head Model: MPC6 (Micro Switch / Honeywell)
- Power Module Model: MPW11
- Beam Type: 4.0-inch convergent infrared beam
- Response Time: 1 msec
- Supply Voltage: 120 VAC (L1 = White, L2 = Black)
- Output Type: Relay — NC / COM / NO
- Output Wiring: Blue = NC, Orange = NO, Red = Common
- Indicator: Top-mounted light shows when beam is reflected/aligned
- Configuration: Transmitter and receiver combined in one unit
- Date Code: 9416
- Country of Manufacture: USA
- Includes: MPC6 photo head and MPW11 power module with attached multi-conductor cable (black, blue, red, white, red leads)
Applications
Micro Switch photoelectric sensors like the MPC6/MPW11 are used throughout industrial automation for presence detection, counting, positioning, and access control on production lines, conveyors, and machine guarding systems. The convergent-beam design focuses the infrared beam at a fixed distance, making it well-suited for detecting small or low-reflectivity targets and for applications where background suppression matters — such as detecting parts on a moving conveyor without false triggers from the belt or background. The relay output (NC/COM/NO) connects directly to PLCs, relay logic panels, and control circuits without additional signal conditioning. Micro Switch, a Honeywell division, produced this series primarily for factory automation, material handling, and vehicle detection applications — this particular series dates from the mid-to-late 1990s era of discrete industrial photoelectric sensing before widespread migration to IO-Link and fieldbus-integrated sensors.
This Honeywell Micro Switch MPC6 MPW11 infrared photoelectric sensor has been tested and is in good working condition. The unit powers on, the beam alignment indicator functions, and the relay output operates correctly. The housing shows normal wear consistent with prior industrial use — light scuffing on the black body and teal power module — with no cracks or damage to the optical window or connectors. The cable and leads are intact. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Honeywell / Micro Switch |
Model: |
MPC6 |
Secondary Model: |
MPW11 |
MPN: |
MPC6 |
SKU: |
39811 |
Type: |
Infrared Photoelectric Beam Sensor |
Sensor Technology: |
Infrared Convergent Beam |
Beam Type: |
4.0 inch Convergent Beam |
Response Time: |
1 msec |
Supply Voltage: |
120 VAC |
Output Type: |
Relay — NC, NO, Common |
Output Wiring: |
Blue=NC, Orange=NO, Red=Common |
Power Input Wiring: |
L1=White, L2=Black |
Configuration: |
Integrated transmitter and receiver (self-contained) |
Indicator: |
Indicator light shows beam reflected/aligned |
Photo Head Model: |
MPC6 |
Power Module Model: |
MPW11 |
Date Code: |
9416 |
Country/Region of Manufacture: |
United States |
Form Factor: |
Block-body sensor with threaded barrel lens |
Seller Notes: |
Includes MPC6 photo head and MPW11 power module with attached cable. No mounting hardware included. |
Condition Notes: |
Honeywell Micro Switch MPC6 MPW11 infrared photoelectric sensor has been tested and is in good working condition. Shows normal industrial wear — light scuffing on housing. Optical window and connectors intact. |
