Micro Switch

Micro Switch Honeywell MHP-TLR31Q Miniature Photoelectric Sensor 10-30VDC NPN

(No reviews yet) Write a Review
SKU:
26589
MPN:
MHP-TLR31Q MHP-LR31Q
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Shipping:
Calculated at Checkout

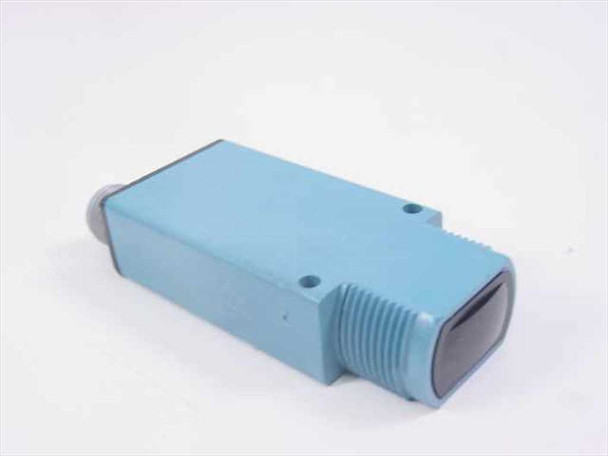

  • Micro Switch Honeywell MHP-TLR31Q miniature photoelectric sensor – front and side view showing blue housing and lens window

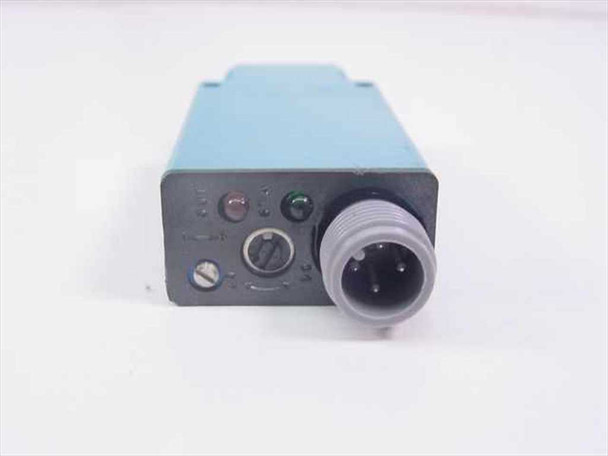

  • Micro Switch MHP-TLR31Q photoelectric sensor – rear end view showing indicator LEDs, sensitivity adjustment, and 4-pin male connector

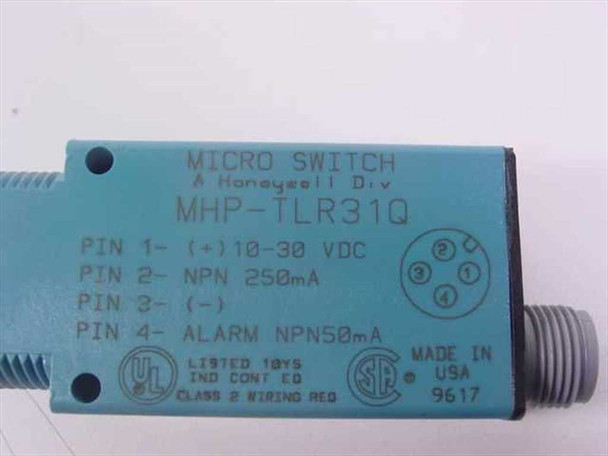

  • Micro Switch MHP-TLR31Q label showing model number, 10-30VDC, NPN 250mA pinout, UL and CSA certifications, Made in USA
$20.00
Was: $40.00
Current Stock: 1

Sold Out

Description

Micro Switch Honeywell MHP-TLR31Q Miniature Photoelectric Sensor 10-30VDC NPN

Miniature photoelectric sensor designed for object detection and positioning in industrial and telecom applications. Operates on 10-30V DC supply with NPN output configuration.

Specifications & What's Included

  • Supply Voltage: 10-30V DC
  • Output Type: NPN (250mA main, 50mA alarm)
  • Connector: 4-Pin Circular Male
  • Housing Color: Blue
  • Certifications: UL Listed, CSA
  • Manufactured in United States
  • Sensor only; no accessories included

Applications

Photoelectric sensors of this type are used in manufacturing assembly lines, packaging equipment, and telecom infrastructure for presence detection and object counting. The NPN output configuration allows integration with PLC systems, relay logic, and industrial control platforms. Commonly deployed in conveyor systems, material handling, and machinery monitoring where reliable switching performance is required.

Condition: Used
This Micro Switch Honeywell MHP-TLR31Q Miniature Photoelectric Sensor has been inspected and is in good condition. The blue housing is intact with minor surface wear consistent with prior industrial use. The lens window, 4-pin connector, and indicator LEDs are all present and appear undamaged. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Micro Switch (Honeywell)
Model:
MHP-TLR31Q
MPN:
MHP-TLR31Q
Secondary Model:
MHP-LR31Q
Type:
Miniature Photoelectric Sensor
SKU:
26589
Supply Voltage:
10-30V DC
Output Type:
NPN
Output Current:
250mA
Alarm Output:
NPN 50mA
Connector Type:
4-Pin Circular (Male)
Pin 1:
(+) 10-30 VDC
Pin 2:
NPN 250mA
Pin 3:
(-)
Pin 4:
Alarm NPN 50mA
Housing Color:
Blue
Certifications:
UL Listed, CSA
Country/Region of Manufacture:
United States
Seller Notes:
Sensor only; no additional accessories included.
Condition:
Used – Inspected
Condition Notes:
Micro Switch Honeywell MHP-TLR31Q Photoelectric Sensor. Inspected, in good used condition. Minor surface wear; housing, lens, connector, and indicators intact. Please contact us with any questions.
View AllClose

Related Products

Related Products

Banner QS30D sensor emitter face and side view showing red infrared LED lens, mounting studs, and output indicator symbols Banner QS30D sensor front view with QS30D and 10-30V DC label visible on yellow housing
Add to Cart
Quick view

Banner QS30D Diffuse Mode Photoelectric Sensor 10-30VDC 1M NPN PNP IP67

Banner

$50.00
Was: $100.00
Banner QS30D Diffuse Mode Photoelectric Sensor 10-30VDC 1M NPN PNP IP67 The Banner QS30D is a rectangular diffuse-mode photoelectric proximity sensor from Banner Engineering's QS30 series. It...
53292
SKU:
53292
Availability:
Usually ships within 1-2 business days.
Weight:
2.00 LBS
Brand:
Banner Engineering
Model:
QS30D
MPN:
QS30D
SKU:
53292
Condition:
As-Is / For Parts or Not Working
Seller Notes:
Includes attached cable. Sold AS-IS, not tested.
Product Series:
QS30
Sensing Mode:
Diffuse (Proximity)
Sensing Range:
1.0 m (1000 mm)
Power Requirements:
10-30V DC
Output Type:
Bipolar NPN and PNP discrete outputs
LED Type:
Infrared LED
Enclosure Rating:
IP67, NEMA 4X
Housing Material:
Rectangular thermoplastic
Mounting:
M30 threaded barrel
Response Time:
2 ms
Repeatability:
50 µs
Operating Temperature:
-20°C to +70°C
Humidity Rating:
Up to 95% relative humidity
Cable Length:
2 m (6.5 ft) integral cable
Adjustment:
Potentiometer sensitivity adjustment
Indicators:
Integrated LED output indicators
Form Factor:
Rectangular block sensor
Country of Manufacture:
USA
Compatible With:
Banner QS30 series mounting brackets and accessories
Condition Notes:
Banner QS30D Diffuse Mode Photoelectric Sensor (10-30VDC, 1M, NPN/PNP, IP67) in used condition. The unit has been visually inspected and shows normal cosmetic wear consistent with industrial use.

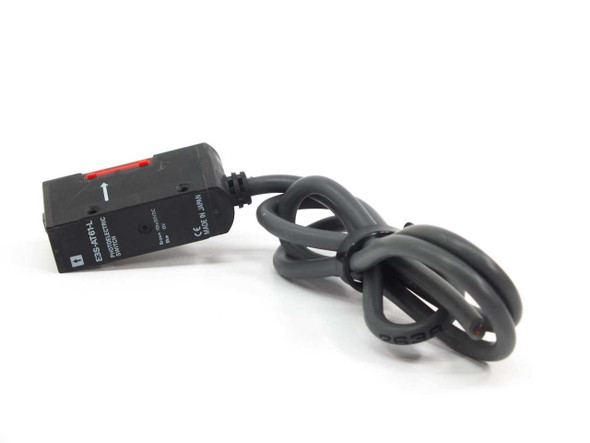

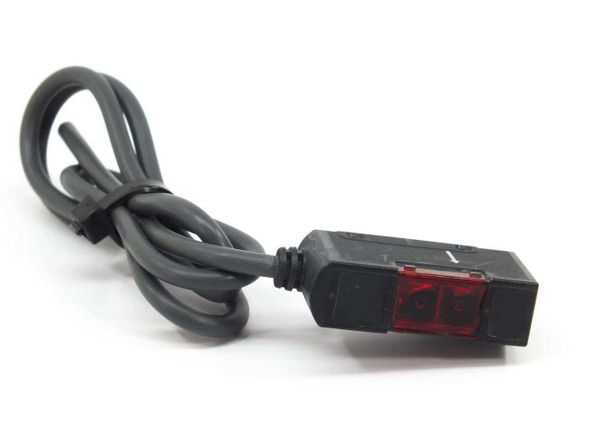

Omron E3S-AT61-L photoelectric through-beam emitter – side profile view with cable Omron E3S-AT61-L emitter – angled front view showing red lens and cable
