Micom 478LR Instamux 470LR Local Multiplexer T1 Data Communications

Micom 478LR Instamux 470LR Local Multiplexer T1 Data Communications

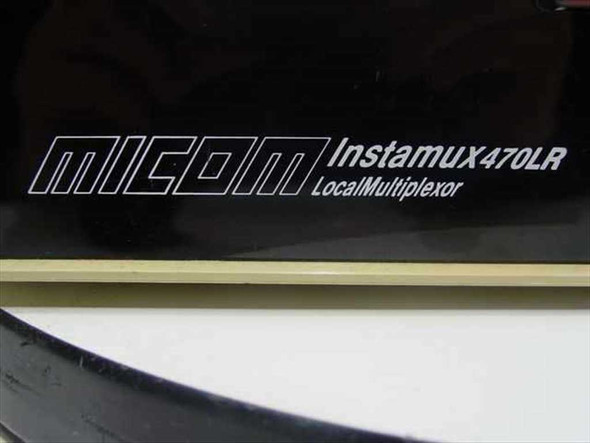

The Micom 478LR, also known as the Instamux 470LR, is a local data multiplexer designed for T1-level telecommunications and data communications networks. This device multiplexes lower-speed data channels onto a single T1 line operating at 1.544 Mbps, using standard T1 ESF (Extended Super Frame) framing. It functions as a concentration point for multiple data streams in telecom infrastructure, commonly deployed in carrier networks, enterprise telecommunications systems, and legacy data communications environments.

Specifications & What's Included

• Manufacturer: Micom
• Model: 478LR (Instamux 470LR)
• Type: Local Data Multiplexer
• Data Rate: 1.544 Mbps T1
• Protocol: T1 ESF (Extended Super Frame)
• Interface: T1 RJ-48C connector
• Function: Multiplexes and demultiplexes data channels on T1 lines
• Origin: Pulled from a working telecommunications environment

Applications

Local multiplexers of this type are core components in T1-based telecommunications networks. The Micom 478LR era equipment (1980s–1990s) was standard in enterprise telecom systems, carrier point-of-presence installations, and data centers where multiple lower-speed channels needed to be aggregated onto a single high-speed T1 trunk. These devices typically connect to channel service units (CSUs), data service units (DSUs), and other T1 endpoint equipment. Although newer technologies (Frame Relay, ATM, and IP-based systems) have largely superseded traditional T1 multiplexing, legacy Micom multiplexer equipment remains in service in many older networks and is valued by system integrators maintaining or restoring vintage telecommunications infrastructure. The 470LR/478LR is particularly useful for environments still running T1-based WAN links or point-to-point data circuits.
