MaxSys

Maxsys VSX 465 Satellite Test Station Load Bank Interface Adapter Satcom Set

(No reviews yet) Write a Review
SKU:
36022
MPN:
VSX
Condition:
Used
Availability:
Usually ships within 3-5 business days due to size and complexity of this multi-component set.
Weight:
1,000.00 LBS
Shipping:
Calculated at Checkout
  • Maxsys VSX 465 satellite test station full set — large cable chassis on cart, VSX interface adapter unit, and cable harness spread on floor

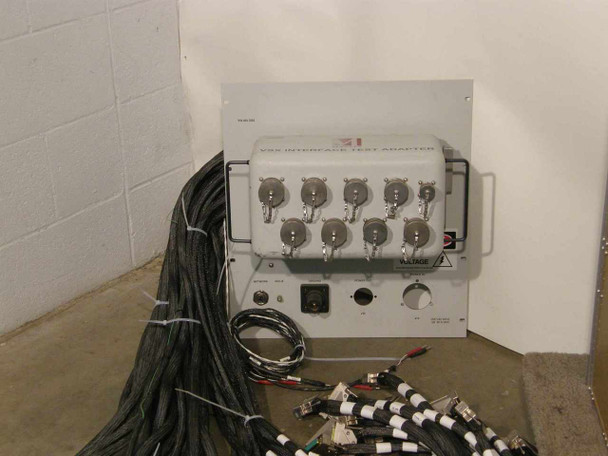

  • Maxsys VSX Interface Test Adapter P/N 465-1040 front panel — 10 rotary high-voltage connectors, NETWORK, IRIG-B, GROUND, POWER OUT controls, DANGER HIGH VOLTAGE label

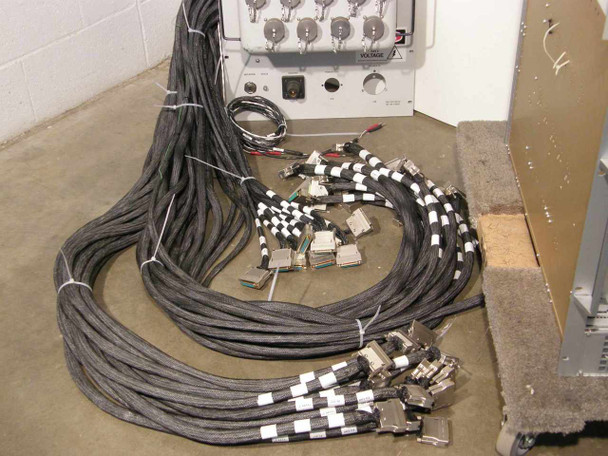

  • Maxsys VSX 465 cable harness — large braided multi-conductor cables with D-sub connectors laid out on floor
  • Maxsys VSX 465 power inlet detail — IEC C14 inlet labeled J214, AC PRIME POWER 115 VAC NOMINAL 60 HZ, TYPE 314 SLOW BLOW fuse, HIGH VOLTAGE warning label

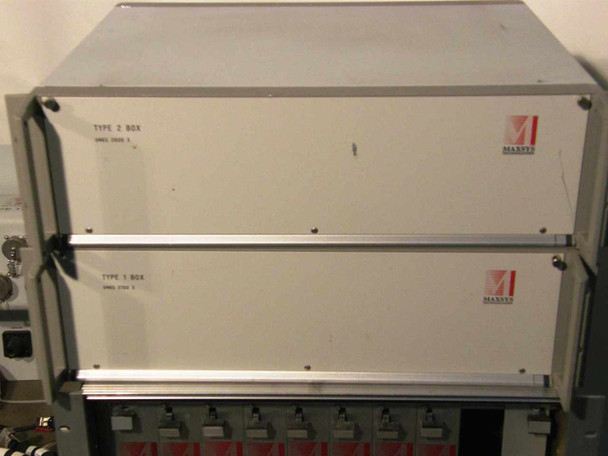

  • Maxsys Technologies Type 2 Box and Type 1 Box rackmount units stacked in cabinet — Maxsys logo visible on both faceplates

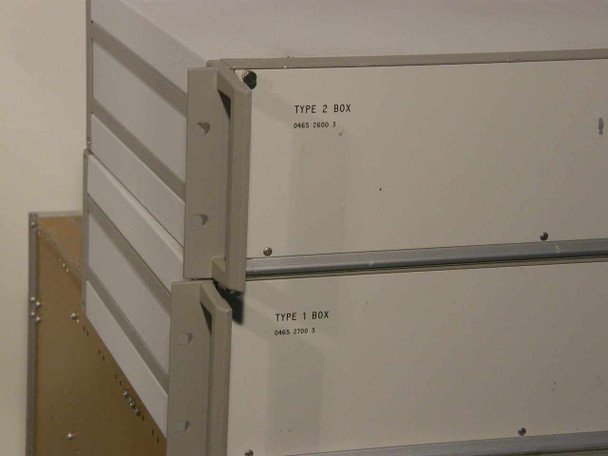

  • Close-up of Type 2 Box label P/N 0465 2600 3 and Type 1 Box label P/N 0465 2700 3 on front panels

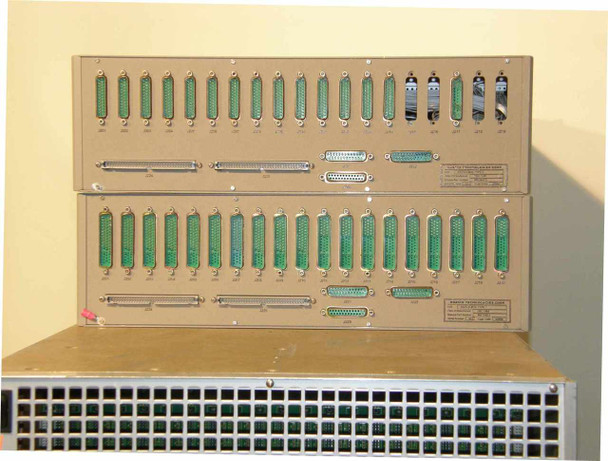

  • Rear view of Maxsys VSX 465 Type 2 and Type 1 switch boxes — rows of D-sub connectors (approximately 25+ connectors per unit), D-25 and D-37 style, plus connector banks on far right

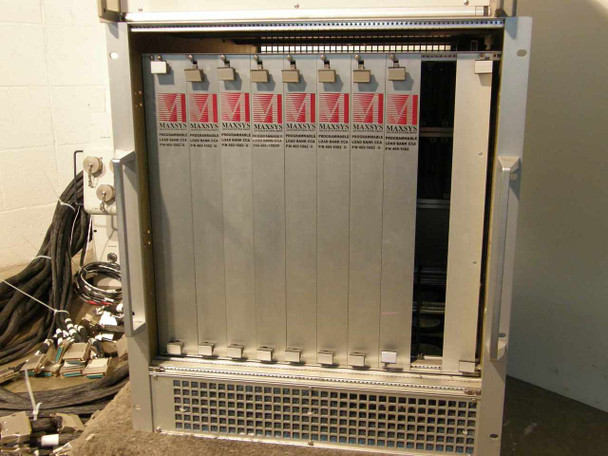

  • Maxsys VSX 465 main chassis — open cabinet showing eight Maxsys Programmable Load Bank CCA P/N 465-1082 modules inserted in card cage, Maxsys Advanced Systems Group labels visible

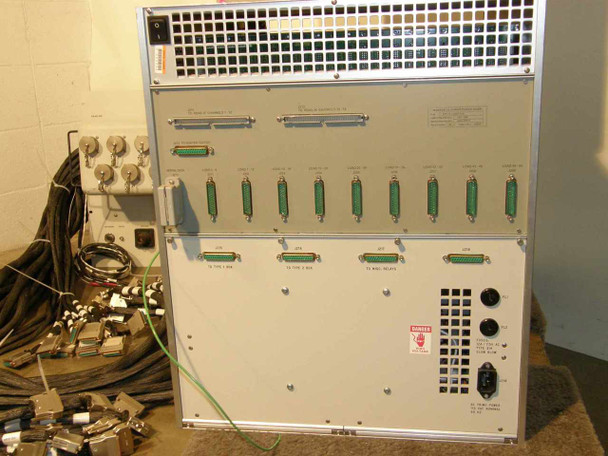

  • Rear of Maxsys VSX 465 system — upper unit showing D-sub connector rows and relay board, lower unit showing additional D-sub connector rows, IEC power inlet, and HIGH VOLTAGE warning

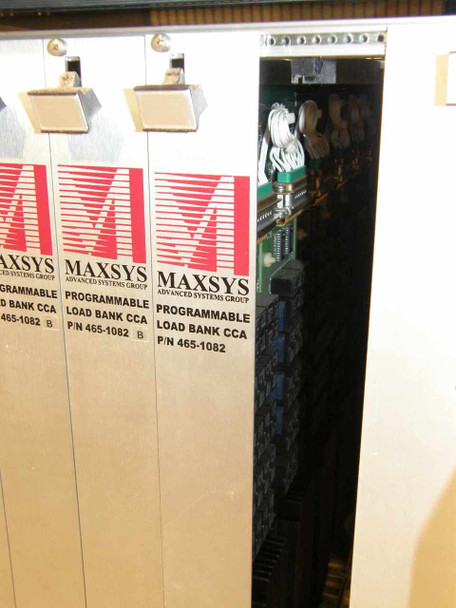

  • Close-up of Maxsys Programmable Load Bank CCA P/N 465-1082 B module labels — three modules visible with Maxsys Advanced Systems Group branding, one module partially withdrawn showing PCB with relay arrays
  • Interior detail of Maxsys 465-1082 Programmable Load Bank CCA — rows of blue relays on green PCB, edge connector card guides visible
  • Maxsys VSX Interface Test Adapter — side/rear view showing NETWORK, IRIG-B, GROUND (E1), POWER OUT (J12) connectors on lower panel

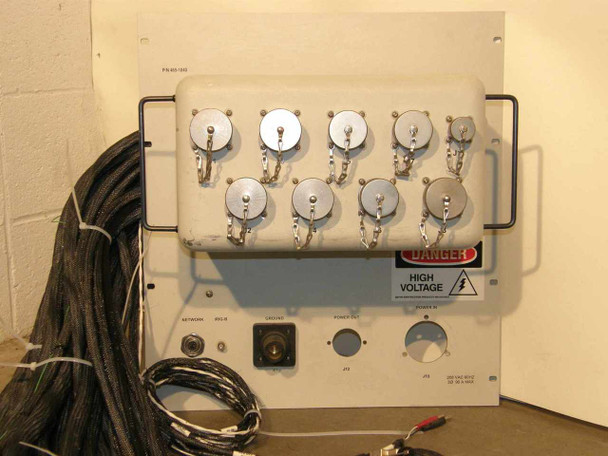

  • Maxsys VSX Interface Test Adapter P/N 465-1040 front panel — 10 high-voltage rotary connectors in two rows, NETWORK and IRIG-B ports at bottom, DANGER HIGH VOLTAGE warning sticker, voltage control knob

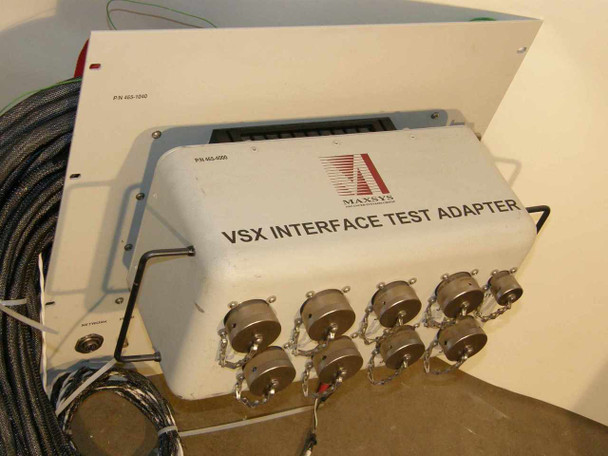

  • Maxsys VSX Interface Test Adapter — P/N 465-1040 and P/N 465-4000 labels visible on top of unit, Maxsys branding, VSX INTERFACE TEST ADAPTER nameplate, 8 rotary connectors on front
  • Maxsys VSX Interface Test Adapter — left side showing P/N 465-1040 label and partial view of front panel rotary connectors and HIGH VOLTAGE label
  • Maxsys VSX 465 cable harness — detail of braided cables showing white label tags and gold-plated D-sub female connectors (D-25 style) at cable ends

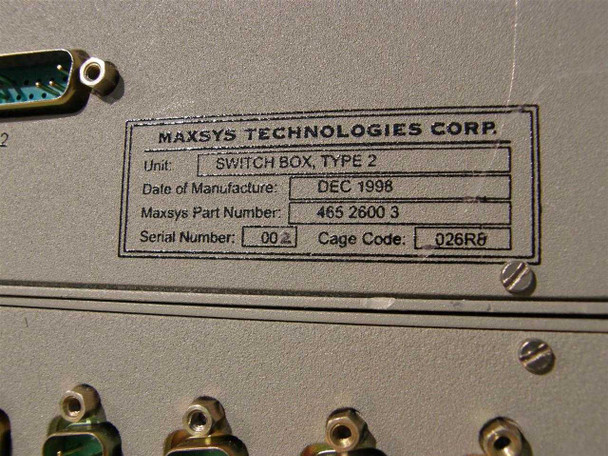

  • Maxsys Technologies Corp. data plate — SWITCH BOX TYPE 2, Date of Manufacture DEC 1998, Maxsys Part Number 465 2600 3, Serial Number 001, Cage Code 026R8

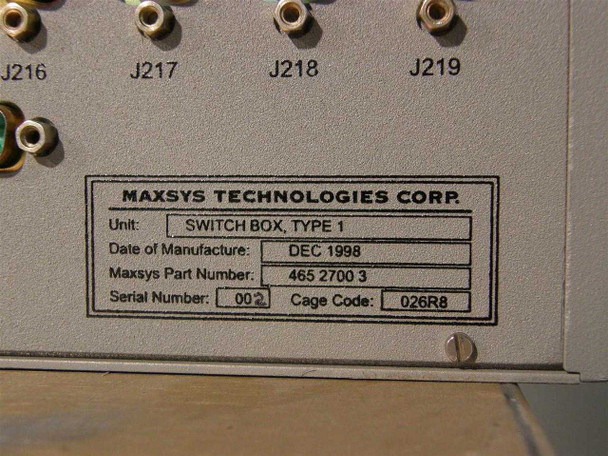

  • Maxsys Technologies Corp. data plate — SWITCH BOX TYPE 1, Date of Manufacture DEC 1998, Maxsys Part Number 465 2700 3, Serial Number 002, Cage Code 026R8

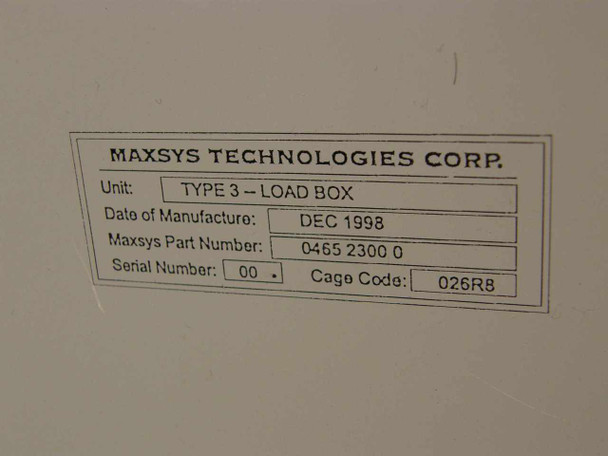

  • Maxsys Technologies Corp. data plate — TYPE 3 LOAD BOX, Date of Manufacture DEC 1998, Maxsys Part Number 0465 2300 0, Serial Number 001, Cage Code 026R8

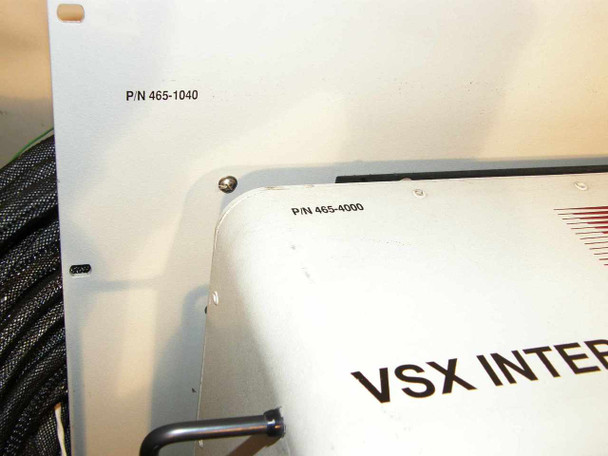

  • Maxsys VSX 465 Interface Test Adapter — top corner showing P/N 465-1040 and P/N 465-4000 labels, partial VSX INTERFACE TEST ADAPTER nameplate visible
$4,500.00
Was: $9,000.00
Current Stock: 1

Sold Out

Description

Maxsys VSX 465 Satellite Test Station Load Bank Interface Adapter Satcom Set

Used satellite communications test equipment from Maxsys Technologies. This load bank interface adapter set was pulled from a working environment and functions as a test station for VSX satellite communication systems.

Specifications & What's Included

  • Model VSX 465 / SKU 36022
  • Multiple Load Bank CCAs (P/N 465-1082)
  • VSX Interface Test Adapter (P/N 465-1040 / 465-4000)
  • Switch Box Type 1 & Type 2 (P/N 465-2700-3, 465-2600-3)
  • Type 3 Load Box (P/N 0465-2300-0)
  • Multi-conductor braided cable harness with D-Sub and military-style connectors
  • Power: 115 VAC, 60 Hz; IEC C14 inlet
  • Interfaces: IRIG-B, Network, Ground (E1), Power Out
  • Manufactured December 1998

Applications

Used in satellite communications test environments for load bank testing and interface verification of VSX satellite systems. The VSX 465 supports system validation and troubleshooting during maintenance and commissioning of satcom equipment. Compatible with VSX Satellite Communication Test Systems.

Condition: Used
This Maxsys VSX Model 465 Satellite Test Station set has been inspected and is in good used condition. It was pulled from a working environment where it was in active use. The set includes the VSX Interface Test Adapter (P/N 465-1040), multiple Programmable Load Bank CCAs (P/N 465-1082), Switch Box Type 2 (P/N 465-2600-3), Switch Box Type 1 (P/N 465-2700-3), the Type 3 Load Box (P/N 0465-2300-0), and a large cable harness with braided multi-conductor cables and D-sub connectors. All components show normal wear consistent with professional use — the interface adapter shows some surface scuffing and the cables show typical age-related wear on the braiding. All major components appear complete and intact. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Maxsys Technologies Corp.
Model:
VSX 465
MPN:
465-1082 / 465-1040 / 465-2600 / 465-2700 / 0465-2300-0
Type:
Satellite Test Station / Satcom Load Bank & Interface Adapter Set
SKU:
36022
Condition:
Used – Pulled from Working Environment
Seller Notes:
Complete set: load bank CCAs, VSX interface adapter, switch boxes, load box, cables
Country/Region of Manufacture:
United States
Form Factor:
Rackmount / Floor Cabinet System with Portable Units
Power Requirements:
115 VAC Nominal, 60 Hz
Date of Manufacture:
December 1998
Cage Code:
026R8
Application / Use Case:
Satellite / SATCOM system interface and load testing
Includes – Load Bank CCA:
Maxsys Programmable Load Bank CCA P/N 465-1082 (multiple)
Includes – Interface Adapter:
Maxsys VSX Interface Test Adapter P/N 465-1040 / 465-4000
Includes – Switch Box Type 2:
Maxsys Switch Box Type 2 P/N 465-2600-3
Includes – Switch Box Type 1:
Maxsys Switch Box Type 1 P/N 465-2700-3
Includes – Load Box:
Maxsys Type 3 Load Box P/N 0465-2300-0
Includes – Cable Harness:
Large set of multi-conductor braided harness cables with D-sub connectors
Connector Types:
D-Sub (various), circular military-style, IRIG-B, Network, Power Out
Interface:
IRIG-B, Network, Ground (E1), Power Out (J12)
Fuse Type:
Type 314 Slow Blow
Connector – Power Input:
IEC C14 inlet (J214)
Compatible With:
VSX Satellite Communication Test Systems
Condition Notes:
Maxsys VSX 465 Satellite Test Station set inspected and in good used condition. Pulled from a working environment. Includes VSX interface adapter, load bank CCAs, two switch boxes, Type 3 load box, and cable harness. Please contact us with questions.
