Maxsys Technologies VSX MUX Card 465-3100-3-001 Rev C Multiplexer Module

(No reviews yet) Write a Review
SKU:
19521
MPN:
465-3100-3-001
Condition:
Used
Availability:
Usually ships within 1–2 business days.
Weight:
18.00 LBS
Shipping:
Calculated at Checkout
  • Maxsys Technologies VSX MUX Card 465-3100-3-001 Rev C – top component side view showing populated PCB with rows of connectors and edge connectors
  • Maxsys Technologies VSX MUX Card 465-3100-3-001 Rev C – angled top view showing full PCB layout with dual edge connector fingers at bottom
  • Maxsys Technologies VSX MUX Card 465-3100-3-001 Rev C – close-up of PCB label showing manufacturer name, Santa Ana CA address, part number ASSY 0465-3100-3-001 Rev C, and serial number
$100.00
Was: $200.00
Current Stock: 2

Sold Out

Description

Maxsys Technologies VSX MUX Card 465-3100-3-001 Rev C Multiplexer Module

Multiplexer card module for the Maxsys Technologies VSX telecom system. Handles signal routing and multiplexing functions within the VSX platform.

Specifications & What's Included

  • Brand: Maxsys Technologies Corp
  • Model: VSX MUX
  • Part Number: 465-3100-3-001 / 0465-3100-3-001
  • Revision: Rev C
  • Form Factor: PCB Card Module
  • Compatible With: Maxsys Technologies VSX System
  • Card only — no chassis or accessories included
  • Manufactured in United States

Applications

Multiplexer cards were standard components in telecom and industrial switching systems for signal consolidation and routing. The VSX system utilized these modules as part of its multiplexing infrastructure for telecommunications equipment. This card type is typically installed in compatible VSX chassis as part of larger telecom or data switching deployments.

Condition: Used
This Maxsys Technologies VSX MUX Card (465-3100-3-001, Rev C) has been inspected and is in good used condition. The PCB presents cleanly with no visible component damage, broken traces, or bent pins noted across the card surface. The edge connector fingers at the bottom of the board appear intact. Normal light handling wear consistent with a pulled surplus card is present. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Maxsys Technologies Corp
Model:
VSX MUX
MPN:
465-3100-3-001
Secondary Model:
0465-3100-3-001
Type:
Multiplexer Card / Module
SKU:
19521
Revision:
Rev C
Form Factor:
Card / PCB Module
Seller Notes:
Card only. No chassis or additional accessories included.
Country/Region of Manufacture:
United States
Compatible With:
Maxsys Technologies VSX System
Condition:
Used – Inspected
Condition Notes:
This Maxsys Technologies VSX MUX Card (465-3100-3-001, Rev C) has been inspected and is in good used condition. The PCB presents cleanly with no visible component damage, broken traces, or bent pins noted across the card surface.
View AllClose

Related Products

Related Products

Maxsys Technologies 0465-3700-3-001 relay board PCB — top-side view showing multiple rows of black relay components and edge connector Maxsys Technologies 0465-3700-3-001 relay board — angled rear view showing card edge connector, blue jumpers, and dense relay array
Add to Cart
Quick view

Maxsys Technologies 0465-3700-3-001 Relay Board Card Module PCB

$60.00
Was: $125.00
Maxsys Technologies 0465-3700-3-001 Relay Board Card Module PCB Multi-relay PCB board module designed for industrial and telecommunications switching applications. Functions as a control interface...
24032
SKU:
24032
Availability:
Usually ships within 1-2 business days.
Weight:
5.00 LBS
Brand:
Maxsys Technologies
Model:
0465-3700-3-001
MPN:
0465-3700-3-001
Type:
Relay Board / PCB Module
SKU:
24032
Seller Notes:
Board only; no enclosure or chassis included.
Form Factor:
Card / Module (PCB)
Component Type:
Multi-Relay PCB Board
Condition:
Used – Inspected
Condition Notes:
This Maxsys Technologies 0465-3700-3-001 Relay Board has been inspected and appears to be in good used condition. The PCB shows normal handling wear consistent with prior installation and removal from a system.

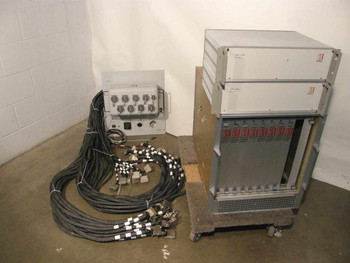

Maxsys VSX 465 satellite test station full set — large cable chassis on cart, VSX interface adapter unit, and cable harness spread on floor Maxsys VSX Interface Test Adapter P/N 465-1040 front panel — 10 rotary high-voltage connectors, NETWORK, IRIG-B, GROUND, POWER OUT controls, DANGER HIGH VOLTAGE label
