Magnetic Elektromotoren

Magnetic Elektromotoren THC 8AWDK-006 Linear Actuator 500W 1800N 600mm 12mm/s

(No reviews yet) Write a Review
SKU:
44249
MPN:
THC 8AWDK-008
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
56.00 LBS
Shipping:
Calculated at Checkout
  • Magnetic Elektromotoren THC 8AWDK-006 linear actuator – left-side view showing cylindrical column, arm bracket, and square base
  • Magnetic Elektromotoren THC 8AWDK-006 rating plate showing model, 230V 50Hz 2.2A 500W, 1800N thrust, 600mm stroke, 12mm/s, IP30, Swiss made
  • THC 8AWDK-006 linear actuator – close-up of electrical connector port showing multi-pin GST18 socket on base
  • Magnetic Elektromotoren THC 8AWDK-006 linear actuator – rear view showing cylindrical housing, arm bracket, base flange, and coiled power cable
  • THC 8AWDK-006 linear actuator – included European Schuko power cable with GST18 multi-pin connector
  • THC 8AWDK-006 linear actuator power cable – close-up of GST18 multi-pin device-end connector
  • THC 8AWDK-006 power cable – close-up of angled European Schuko plug end

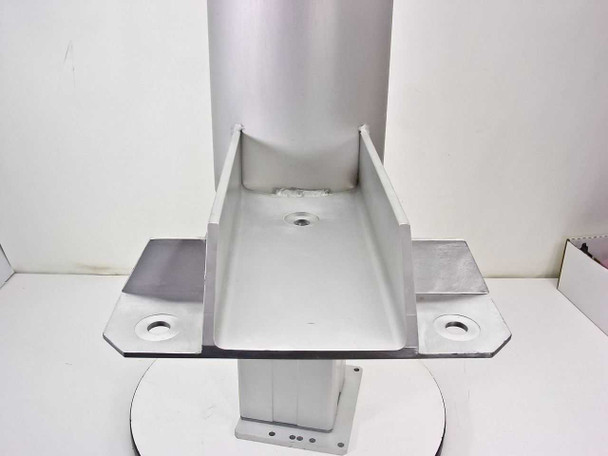

  • Magnetic Elektromotoren THC 8AWDK-006 linear actuator – underside of base showing flange mounting holes and column base detail
  • Magnetic Elektromotoren THC 8AWDK-006 linear actuator – top view of output shaft showing three-arm hub and center coupling
$175.00
Was: $350.00
Current Stock: 1

Sold Out

Description

Magnetic Elektromotoren THC 8AWDK-006 Linear Actuator 500W 1800N 600mm 12mm/s

Electric linear actuator manufactured by Swiss company Magnetic Elektromotoren AG. Converts rotational motor power into controlled linear motion for industrial and telecom equipment requiring precise positioning or actuation.

Specifications & What's Included

  • Power Rating: 500 W
  • Thrust Force: 1800 N
  • Stroke Length: 600 mm
  • Speed: 12 mm/s
  • Input Voltage: 230 V AC, 50 Hz
  • Current Rating: 2.2 A
  • Enclosure Rating: IP30
  • Duty Cycle: KB 2 min; Int. 1 min/27 min
  • Mounting: Base flange with bolt holes
  • Includes Schuko power cable with GST18 connector

Applications

Linear actuators of this type are used in industrial automation, machinery positioning, and telecom infrastructure for valve control, gate operation, and equipment adjustment. The 1800 N force and 600 mm stroke support heavy-duty repetitive motion tasks. Base-mount design suits stationary installation in larger systems requiring controlled linear extension and retraction.

Condition: Used
This Magnetic Elektromotoren THC 8AWDK-006 linear actuator has been inspected and appears to be in good condition. The cylindrical aluminum housing and square column show light scuffing and surface marks consistent with prior use, most visible on the upper cylinder body. The base flange, mounting holes, and output shaft hub all appear intact and undamaged. The unit comes with its European Schuko power cable (with GST18 multi-pin connector) as seen in the photos. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Magnetic Elektromotoren AG
Model:
THC 8AWDK-006
MPN:
THC 8AWDK-006
Type:
Electric Linear Actuator
SKU:
44249
Power Rating:
500 W
Thrust Force:
1800 N
Stroke Length:
600 mm
Speed:
12 mm/s
Input Voltage:
230 V AC
Frequency:
50 Hz
Current Rating:
2.2 A
Enclosure Rating:
IP30
Duty Cycle:
KB 2 min; Int. 1 min/27 min
Country/Region of Manufacture:
Switzerland
Condition:
Used – Inspected
Seller Notes:
Includes attached European Schuko power cable with GST18 connector
Form Factor:
Column / Floor-Mount
Mounting:
Base flange with bolt holes
Condition Notes:
Magnetic Elektromotoren THC 8AWDK-006 linear actuator inspected and in good used condition. Light scuffing on cylinder housing. Base, output hub, and connectors appear intact. Includes Schuko power cable. Please contact us with any questions.
