Madico InsulPatch W/W 4980440/30 Solar Backsheet Roll 30"x500' EVA/PET/EVA

(No reviews yet) Write a Review
SKU:
49670
MPN:
4980440/30
Condition:
New
Availability:
Usually ships within 1-2 business days.
Weight:
85.00 LBS
Shipping:
Calculated at Checkout

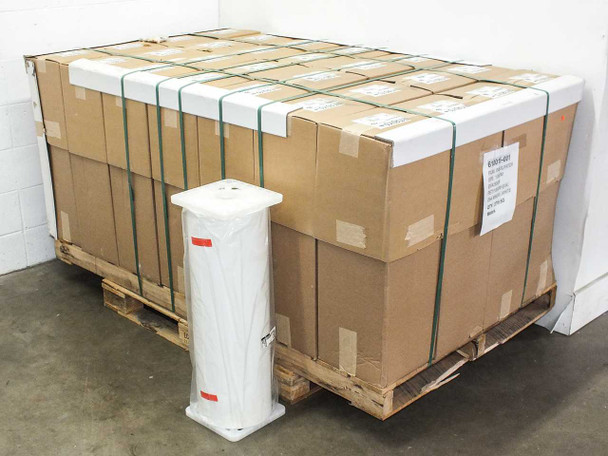

  • Madico InsulPatch W/W 4980440/30 solar backsheet rolls stacked on pallet in warehouse with individual boxed rolls visible

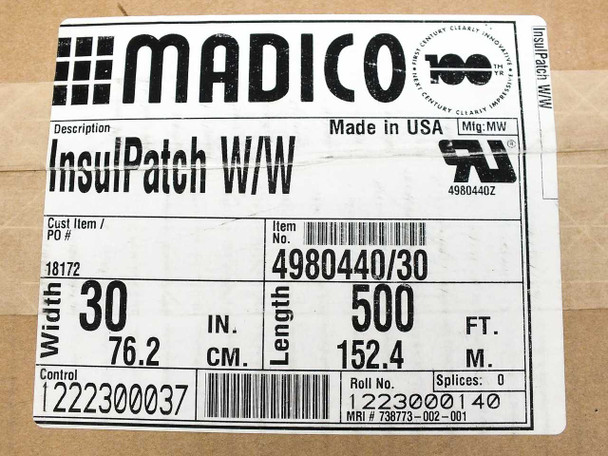

  • Madico InsulPatch W/W 4980440/30 box label showing item number, 30-inch width, 500-foot length, and roll number 1223000140

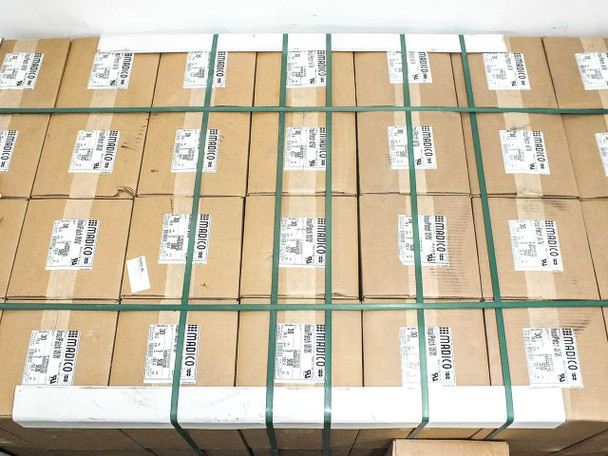

  • Top-down view of Madico InsulPatch W/W 4980440/30 pallet showing multiple boxed rolls strapped with green banding
  • Single Madico InsulPatch W/W 4980440/30 roll standing upright in plastic wrap with red tamper labels, pallet of boxes in background

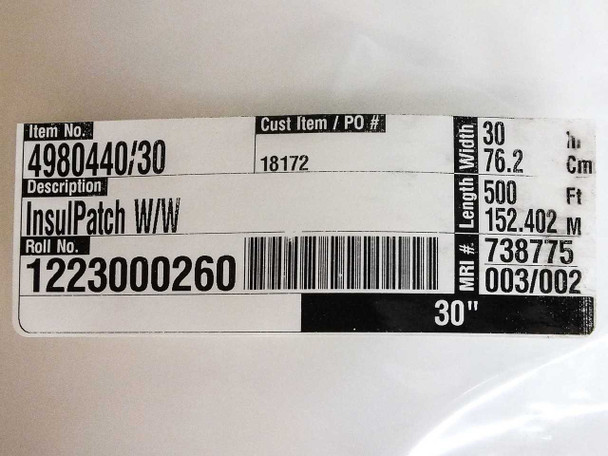

  • Madico InsulPatch W/W 4980440/30 roll end label showing item number, 30-inch width, 500-foot length, and roll number 1223000260
$113.00
Was: $300.00
Current Stock: 8

Sold Out

Description

Madico InsulPatch W/W 4980440/30 Solar Backsheet Roll 30"x500' EVA/PET/EVA

Solar panel backsheet material used in photovoltaic module manufacturing. This EVA/PET/EVA laminate serves as an electrical insulator and physical spacer layer in solar panel construction.

Specifications & What's Included

  • Width: 30 inches (76.2 cm)
  • Length: 500 feet (152.4 m)
  • Material: EVA/PET/EVA laminate
  • Thickness: 265 ± 27 µm
  • Dielectric Strength: 18 kV (UL 746A)
  • Surface Density: 285 g/m²
  • Manufactured in the United States

Applications

Backsheet material is used in crystalline silicon and thin-film solar module assembly as the outermost protective layer. It provides electrical insulation between the solar cells and external environment while functioning as a structural spacer. This material type is compatible with standard solar panel manufacturing processes and equipment used in commercial and utility-scale photovoltaic production.

Condition: New
This Madico InsulPatch W/W 4980440/30 Solar Panel Insulating Backsheet Roll is new and unused. Rolls are individually boxed and arrive in original factory packaging. Photos show multiple rolls on the pallet; the roll received will be in new condition equivalent to those shown. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Datasheet:
Madico InsulPatch Information Datasheet
Brand:
Madico
Model:
InsulPatch W/W
MPN:
4980440/30
Type:
Solar Panel Insulating Backsheet Roll
SKU:
49670
Material Composition:
EVA / PET / EVA
Width:
30 Inches (76.2 cm)
Length:
500 Feet (152.4 m)
Thickness:
265 ± 27 µm
Dielectric Strength:
18 kV (UL 746A)
Density:
1.1–1.2 g/cm³
Surface Density:
285 g/m²
Application:
Solar Panel Manufacturing, Electronic Device Insulation
Function:
Electrical Insulator and Physical Spacer
Splices:
0
Country/Region of Manufacture:
United States
Condition:
New
Seller Notes:
Price is for 1 roll. Datasheet available — see product downloads tab.
Condition Notes:
Madico InsulPatch W/W 4980440/30 solar backsheet roll is new and unused, individually boxed in original factory packaging. Please view our photos and contact us with any questions.
