Lumenis LightSheer XC 10-04169-01.AA Diode Laser Hair Removal System Parts
The Lumenis LightSheer XC is a 808nm-range diode laser platform designed for permanent hair reduction in clinical and aesthetic settings. This listing is for the system console sold as-is for parts or repair. The chassis is open and multiple components are missing, as clearly visible in the photo set. The unit is not complete and is not being sold as a functional system. It is intended for technicians, biomedical engineers, or buyers sourcing specific sub-assemblies, boards, or mechanical components from the LightSheer XC platform.
Specifications & What's Included
- Manufacturer: Lumenis Inc., Pleasanton, CA USA
- Model: LightSheer XC (LightSheer System)
- MPN / PIN: 10-04169-01.AA
- Laser Wavelength: 790–830 nm
- Laser Class: Class IV (Class 4) Laser Product
- Maximum Output Energy: 145 J
- Pulse Duration: 5–400 ms
- Pulse Repetition Rate: 3 Hz max
- Input Power: 100–240V AC, 50–60Hz, 16A max
- Certifications: RW/TUV, IEC 601-1, IEC 601-1-4, IEC 601-2-22, CE 0044

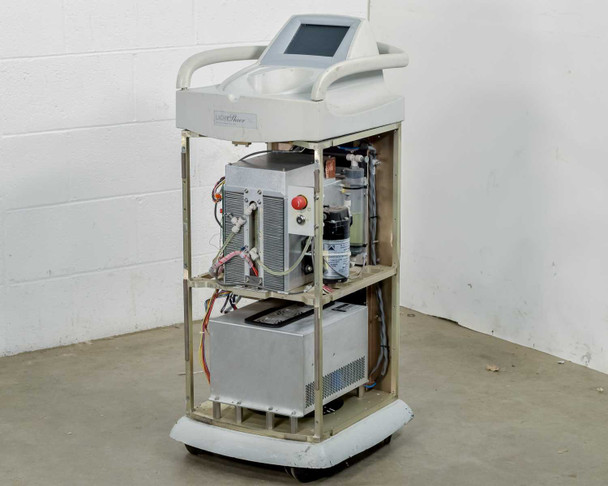

- Form Factor: Mobile cart / wheeled console with handle

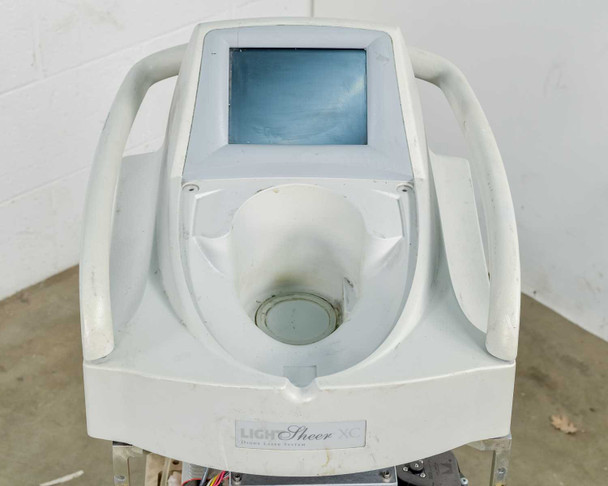

- Touchscreen display present on upper console housing

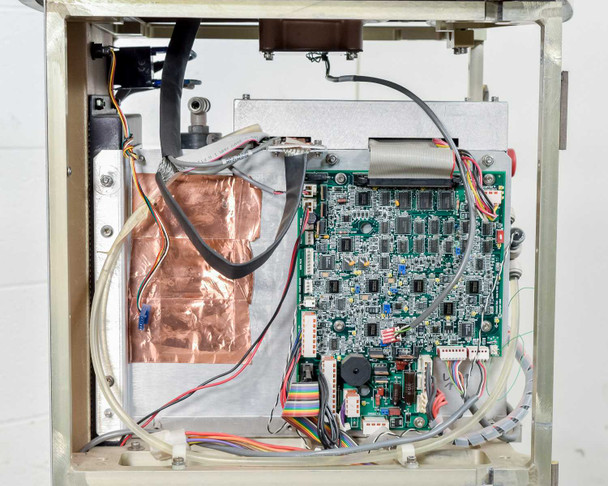

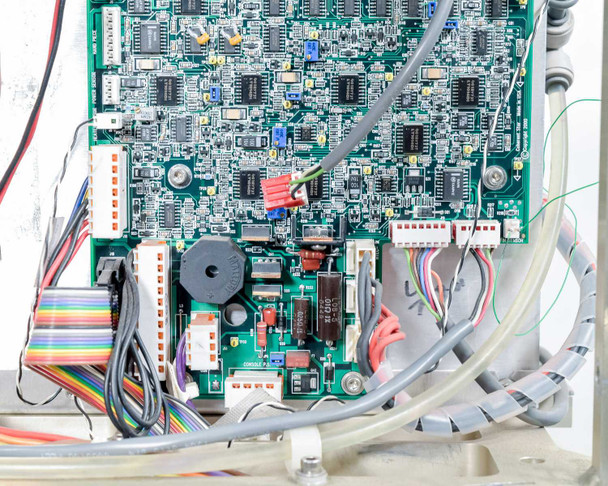

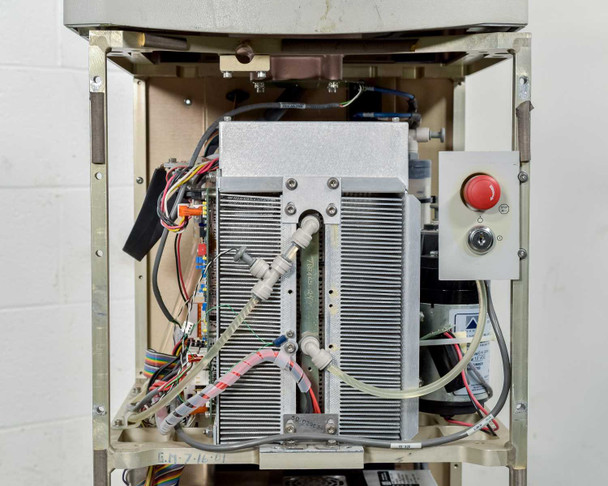

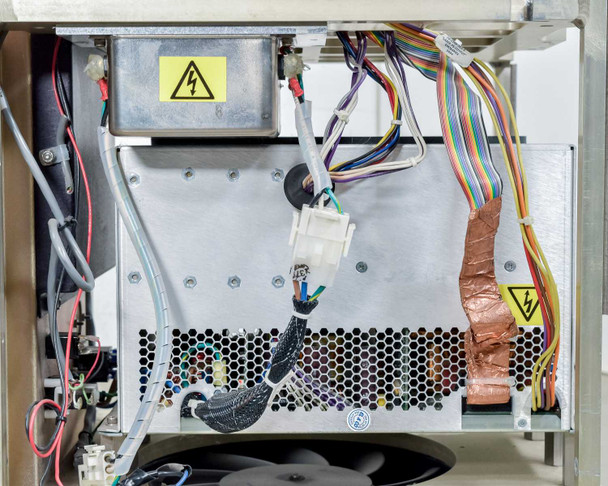

- Internal sub-assemblies visible and present: main control PCB, secondary PCB, diode laser stack / heat exchanger assembly, internal power supply, lower enclosure (capacitor bank or water cooling), wiring harnesses, and plumbing/tubing

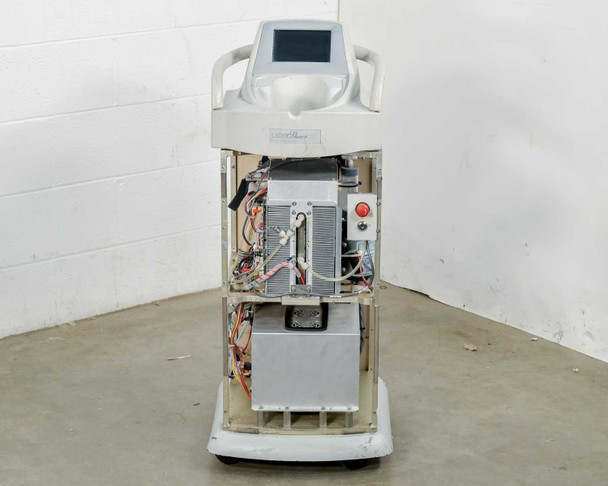

- Emergency stop (red mushroom button) present on internal frame

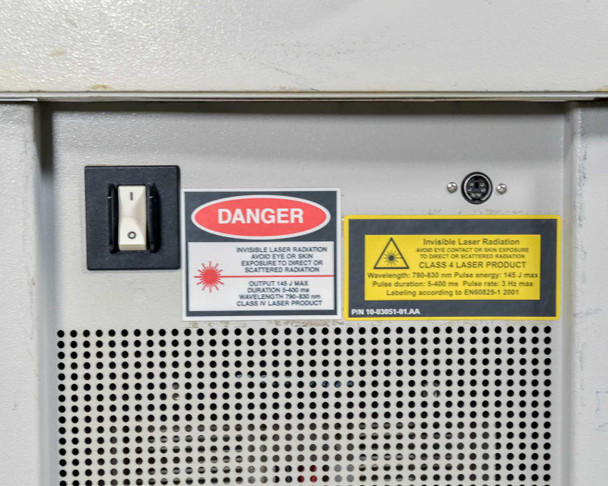

- Rear panel: power rocker switch, ventilation grille, power inlet (IEC C14 style)
- Chassis panels and handpiece cradle present; multiple external cover panels missing
- Handpiece and applicator tip not present
- Sold as-is — no accessories, cables, or documentation included unless visible in photos
Applications
The LightSheer XC is a diode-based laser hair removal platform developed by Lumenis (formerly Coherent Medical and ESC/Sharplan) for use in dermatology clinics, medical spas, and aesthetic practices. The LightSheer line uses near-infrared diode laser energy in the 790–830nm range to target melanin in hair follicles for long-term hair reduction across a range of skin types. The XC variant is a high-fluence version of the LightSheer family, designed for treatment of larger body areas. This unit in its current incomplete state is suited for parts harvesting, component-level repair of another LightSheer XC console, biomedical bench work, or research. Buyers commonly include laser service companies and biomedical engineers maintaining or refurbishing LightSheer systems.
This Lumenis LightSheer XC Diode Laser Hair Removal System (MPN 10-04169-01.AA) is being sold as-is for parts or repair. The unit is missing multiple components — the chassis is visibly open and incomplete, with several assemblies absent as shown throughout the photo set. The system has not been powered or tested at our facility and is not guaranteed to be functional in its current state. The external housing panels show general wear consistent with clinical use, and the internal assemblies, cabling, and PCBs that remain appear intact and undamaged. This listing is intended for technicians, laser repair specialists, or buyers sourcing specific sub-assemblies from the LightSheer XC platform. Please view our full photo set carefully to assess the current completeness of the unit and contact us if you have any questions before purchasing.
Warranty Information
Additional Information
Brand: |
Lumenis |
Model: |
LightSheer XC |
MPN: |
10-04169-01.AA |
Type: |
Diode Laser Hair Removal System |
SKU: |
52829 |
Condition: |
As-Is / For Parts or Not Working |
Seller Notes: |
Sold as-is for parts or repair. Missing multiple components. See photos. |
Country/Region of Manufacture: |
United States |
Power Requirements: |
100-240V AC, 50-60Hz, 16A max |
Laser Class: |
Class IV (Class 4) |
Laser Wavelength: |
790-830 nm |
Laser Output: |
145 J max |
Pulse Duration: |
5-400 ms |
Pulse Repetition Rate: |
3 Hz max |
Certifications: |
RW/TUV, IEC 601-1, IEC 601-1-4, IEC 601-2-22, CE 0044 |
Form Factor: |
Mobile Cart / Wheeled Console |
Application: |
Aesthetic / Cosmetic Laser Hair Removal |
PIN / Part Number: |
10-04169-01.AA |
Compatible With: |
Lumenis LightSheer XC System |
Condition Notes: |
This Lumenis LightSheer XC Diode Laser Hair Removal System (MPN 10-04169-01.AA) is being sold as-is for parts or repair. The unit is missing multiple components — the chassis is visibly open and incomplete, with several assemblies absent as shown |
