Description
Lucent 6424D+ Business Office Telephone Phone PBX Desk Set Avaya 6424D01A-323

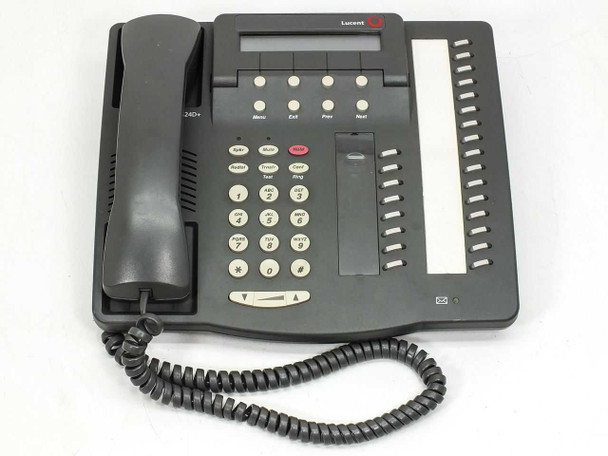

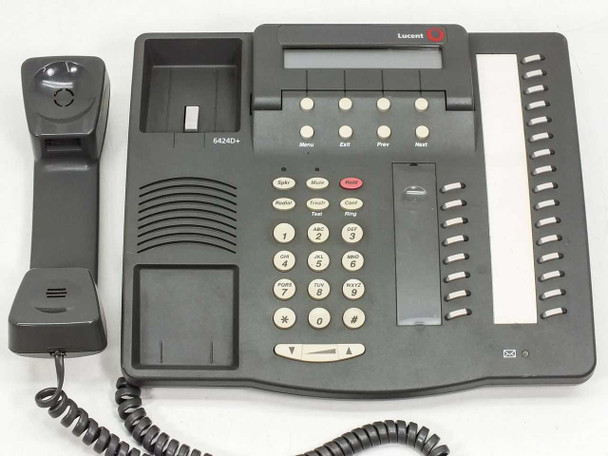

The Lucent 6424D+ is a multi-line business desk telephone built for use with Lucent and Avaya Definity PBX systems. It provides 24 programmable line and feature buttons, a built-in LCD display, and hearing aid compatibility, making it a capable mid-range desk set for busy office extensions.
Specifications & What's Included

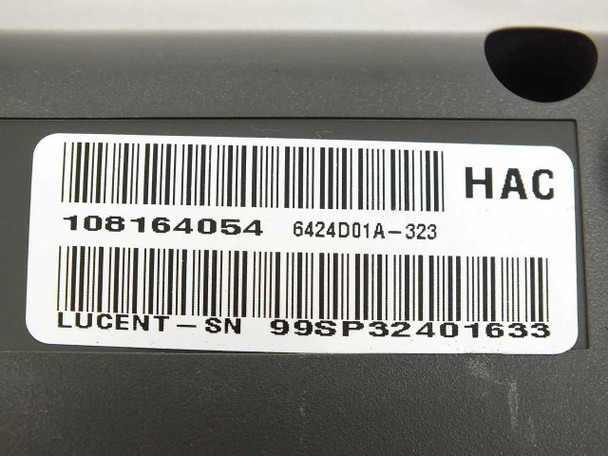

- Model: 6424D+ | MPN: 6424D01A-323 | Secondary PN: 108164054
- Series: Lucent / Avaya 6400 Series
- 24 programmable line/feature buttons
- Built-in LCD display
- Navigation keys: Menu, Exit, Prev, Next
- Standard alphanumeric dial pad
- Hearing aid compatible (HAC) — confirmed on bottom label

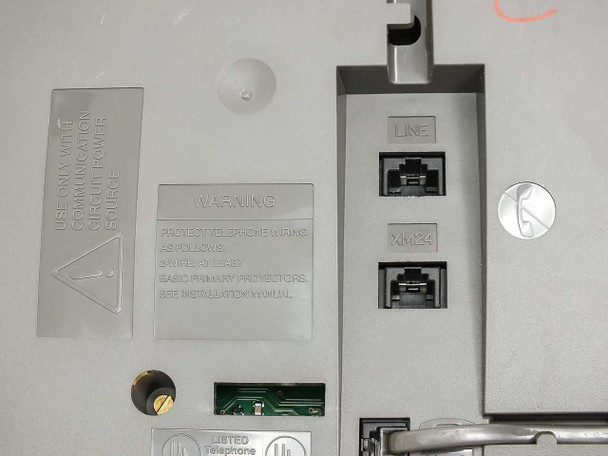

- Ports: RJ-45 LINE jack, RJ-45 XM/24 jack (bottom)
- Power source: Communication Circuit Power Source (PBX-powered — no external power adapter required)
- Color: Charcoal / dark gray
- Form factor: Desktop
- Country of manufacture: United States
- Includes: handset and coiled cord
- Not included: handset stand, manual
- Programmable button label strip is blank/white
Applications
The Lucent 6424D+ was designed as a mid-range desk set for corporate environments running Lucent or Avaya Definity PBX systems — the G3 and later ECS/MultiVantage platforms that were standard in large enterprise offices from the 1990s through the 2000s. In a Definity installation, a phone like the 6424D+ would be assigned to a user who needed direct-line access to multiple extensions or features — call transfer, hold, conferencing, and direct-line pickup — all mapped to its 24 programmable buttons. The 6400 series sat in the middle of Lucent's feature-phone lineup, above basic 2-button sets but below the top-tier 8400 series. Avaya continued to support these phones after acquiring Lucent's enterprise division in 2000, and many legacy Definity and early Avaya Communication Manager systems still in service today can run the 6424D+ without replacement hardware. They remain a practical, low-cost option for maintaining or expanding an existing analog Definity-compatible system.
This Lucent 6424D+ business desk telephone has been inspected and is in good used condition. It was pulled from a working office environment and shows normal cosmetic wear — light scuffing on the housing and some marks around the keypad area, consistent with everyday office use. The handset and coiled cord are both present. The programmable button label strip is blank/white, as visible in the photos. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Lucent |
Model: |
6424D+ |
MPN: |
6424D01A-323 |
Secondary Model: |
108164054 |
SKU: |
45603 |
Type: |
Business Desk Telephone |
Compatible With: |
Lucent Definity PBX, Avaya Definity PBX |
Series: |
6400 Series |
Hearing Aid Compatible (HAC): |
Yes |
Display: |
LCD |
Number of Programmable Buttons: |
24 |
Connectivity: |
RJ-45 LINE port, RJ-45 XM/24 port |
Power Source: |
Communication Circuit Power Source (PBX-powered) |
Color: |
Charcoal / Dark Gray |
Form Factor: |
Desktop |
Seller Notes: |
Phone and handset with coiled cord only; no handset stand, no manual |
Country/Region of Manufacture: |
United States |
Condition Notes: |
Lucent 6424D+ desk phone in good used condition. Pulled from a working office environment. Light scuffing on housing; normal keypad wear. Handset and coiled cord included. Button label strip is blank. |
Number of Lines: |
24 |
Handset Included: |
Yes |
Handset Stand Included: |
No |
