Description
LNR Communications CF12 012660-1 LNA Power Supply Power & Control Module 3x
Rackmount chassis containing three plug-in CF12 LNA Power Supply modules. Supplies power and control signals to satellite Low-Noise Amplifier systems used in ground station receive chains.
Specifications & What's Included

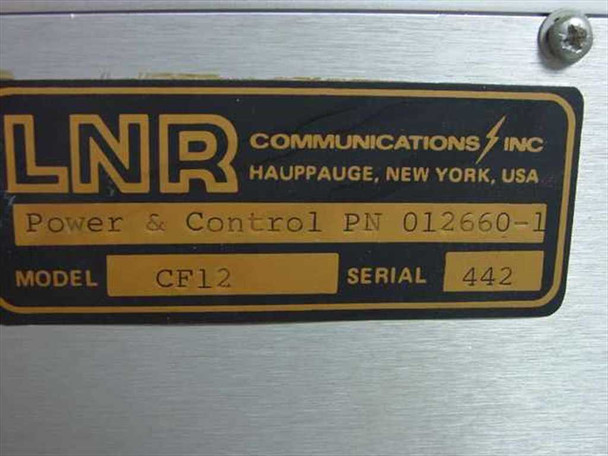

- Model: CF12; MPN: 012660-1
- Configuration: 3 installed plug-in units in rackmount chassis

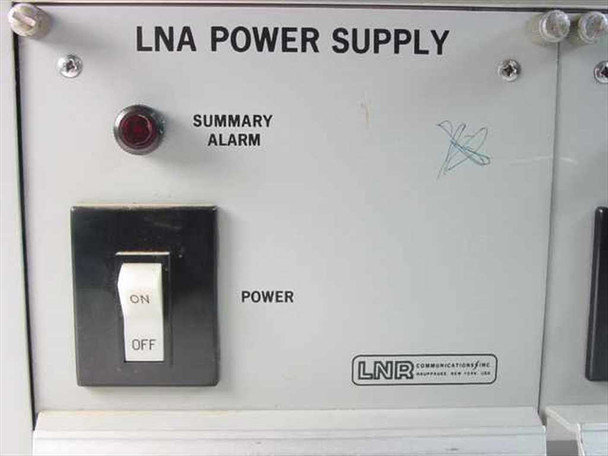

- Front Panel: ON/OFF toggle switch and Summary Alarm indicator per unit
- Connectors: D-Sub 9-pin and 15-pin (J1, J2, J3 per module)
- Cooling: Rear-mounted fan per plug-in unit (3 total)
- Manufactured in United States
Applications
LNA power supplies are used in satellite ground station receive systems to provide regulated power and control/monitoring signals to Low-Noise Amplifiers mounted at antenna feeds. The CF12 module series was deployed in C-band and Ku-band satellite earth stations for communications, meteorology, and data reception applications. This three-unit configuration supports multi-channel or redundant LNA configurations typical in broadcast, telecom, and government satellite operations.
This LNR Communications CF12 012660-1 LNA Power Supply Power and Control Module has been inspected and appears to be in good condition. It was pulled from a working environment where it was previously in service. The chassis and all three CF12 plug-in units are present and intact. The front panels show some light surface marks and minor pen marks are visible on one unit (visible in photos). The rear connector areas show some oxidation around the D-sub connectors and chassis metalwork, consistent with field use. All three cooling fans are present. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
LNR Communications Inc |
Model: |
CF12 |
MPN: |
012660-1 |
SKU: |
31431 |
Type: |
LNA Power Supply Power & Control Module |
Form Factor: |
Rackmount |
Number of Plug-In Units: |
3 |
Plug-In Unit Model: |
CF12 LNA Power Supply |
Front Panel Controls: |
ON/OFF toggle switch, Summary Alarm indicator (per unit) |
Connector Type: |
D-Sub (9-pin and 15-pin), labeled J1, J2, J3 per module |
Cooling: |
Rear-mounted cooling fan per plug-in unit (3 total) |
Country/Region of Manufacture: |
United States |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Includes chassis with 3 installed CF12 LNA Power Supply plug-in units |
Application: |
Satellite LNA / Low-Noise Amplifier Power and Control |
Compatible With: |
Satellite ground station LNA systems |
Condition Notes: |
LNR Communications CF12 012660-1 LNA Power Supply Module with 3 plug-in units. Pulled from working environment, inspected, good condition. Minor surface marks and connector oxidation visible. All 3 units and fans present. |
