Description
Leitch VPA-330N Video Processing Amplifier BNC 115/230VAC Broadcast Rackmount

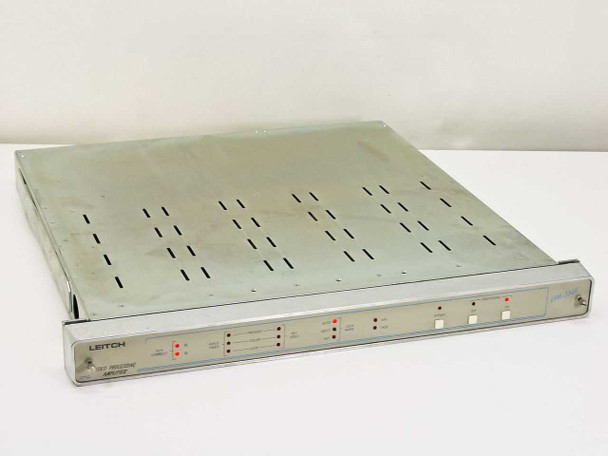

The Leitch VPA-330N is a 1U rackmount video processing amplifier designed for broadcast and production environments. It provides sync correction, automatic gain control (AGC), fade, and bypass functions on an analog video signal, with separate Preview Output, Program Output, and Black output via BNC connectors. A 37-pin D-sub Remote Control port on the rear allows external automation or switcher integration.
Specifications & What's Included
- Manufacturer: Leitch

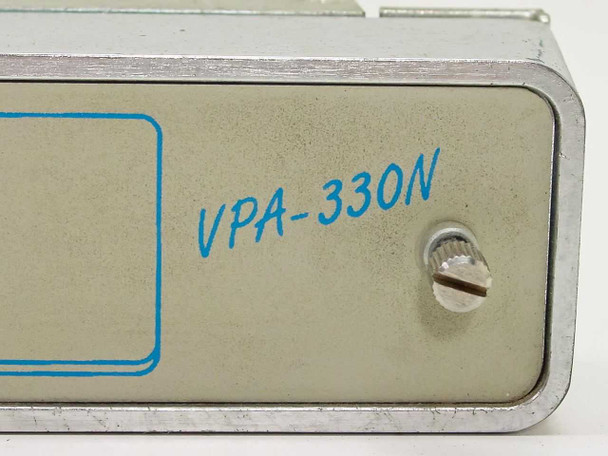

- Model: VPA-330N
- Type: Video Processing Amplifier
- Form Factor: 1U Rackmount
- Power Input: 115/230VAC ±10%, 25VA, 50/60Hz
- AC Line Fuse: 0.3A, 250V CCT BKR
- 14VAC Fuse: 2.0A S.B. 250V

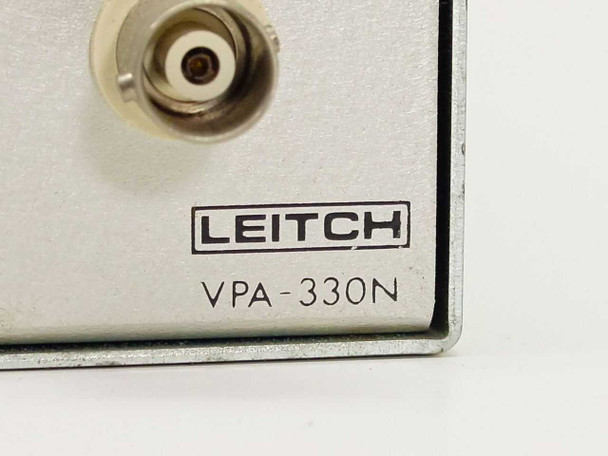

- Video Input: BNC (VIDEO INPUT)
- Video Outputs: BNC — Preview Output, Program Output, Black
- Reference Input: BNC (EXT·REF)
- Remote Control: 37-pin D-sub connector
- Lock Modes: Auto, Input, REF (front-panel selectable)
- Processing Controls: AGC, Fade, Bypass; Processing On/Off buttons
- Front Panel Indicators: Present, Color, Lock, Input Video, SCH Correct, REF Video LEDs
- Country of Manufacture: Canada
- Includes: Unit only — no cables or documentation
Applications
The Leitch VPA-330N is a broadcast-grade video proc amp — the type of processing amplifier that was standard equipment in television production facilities, master control rooms, and mobile broadcast trucks from the 1980s through the early 2000s. Proc amps of this class were used to restore or adjust the sync, luminance, and chroma levels of an analog composite video signal before it was routed to a switcher, tape deck, or transmitter. The AGC function compensated for variations in signal amplitude across long cable runs, while the Fade and Bypass controls gave operators the ability to smoothly ramp the output to black or pass the signal unprocessed. The separate Preview and Program outputs allowed the unit to feed both a monitoring bus and a program bus simultaneously. Leitch (later acquired by Harris Corporation) was a well-regarded Canadian manufacturer of broadcast signal processing and routing equipment; the VPA series was part of their line of analog video infrastructure gear targeted at professional broadcast and post-production facilities.
This Leitch VPA-330N Video Processing Amplifier has been inspected and is in good cosmetic condition. It was pulled from a working broadcast environment. The front-panel LEDs illuminate. The unit was not connected to a video source, so video signal processing functions were not tested. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Leitch |
Model: |
VPA-330N |
MPN: |
VPA-330N |
Type: |
Video Processing Amplifier |
SKU: |
40671 |
Form Factor: |
1U Rackmount |
Power Requirements: |
115/230VAC ±10%, 25VA, 50/60Hz |
Fuse – AC Line: |
0.3A, 250V CCT BKR |
Fuse – 14VAC: |
2.0A S.B. 250V |
Video Input: |
BNC (VIDEO INPUT) |
Video Outputs: |
BNC: Preview Output, Program Output, Black |
Reference Input: |
BNC (EXT·REF) |
Remote Control Connector: |
37-pin D-sub |
Lock Modes: |
Auto, Input, REF |
Processing Controls: |
AGC, Fade, Bypass, Processing On/Off |
Front Panel Indicators: |
Present, Color, Lock, Input Video, SCH Correct, REF Video |
Country/Region of Manufacture: |
Canada |
Application: |
Broadcast Video Production, Post-Production |
Seller Notes: |
Unit only — no cables or documentation included. |
Condition Notes: |
Leitch VPA-330N Video Processing Amplifier pulled from working broadcast environment. Front-panel LEDs illuminate. Not connected to a video source; video processing functions not tested. Good cosmetic condition. |
