Leitch
-

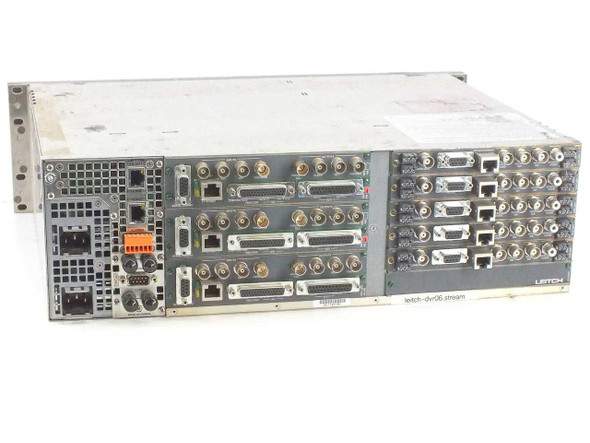

Leitch FR-3923 NEO Frame Synchronizer 6x VSE-3901 3x MGI-3901 3x MGI-3901-SD
Leitch
$450.00Was: $900.00Leitch FR-3923 NEO Frame Synchronizer 6x VSE-3901 3x MGI-3901 3x MGI-3901-SD Rackmount frame synchronizer from Leitch's NEO Series. Performs frame synchronization and video signal processing for...52670- SKU:
- 52670
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 40.00 LBS
- Brand:
- Leitch
- Model:
- FR-3923
- MPN:
- FR-3923
- SKU:
- 52670
- Condition:
- Used – Inspected
- Seller Notes:
- Includes 6x VSE-3901, 3x MGI-3901, 3x MGI-3901-SD, and dual 3923PS power supplies
- Form Factor:
- Rackmount
- Product Line:
- NEO Series
- Power Requirements:
- 100-250V AC, 47-63Hz, 4.5A max
- Country of Manufacture:
- Canada
- Included Cards 1:
- 6x VSE-3901 Video Sync/Enhancement Cards
- Included Cards 2:
- 3x MGI-3901 Multi-Image Gateway Cards
- Included Cards 3:
- 3x MGI-3901-SD SD Multi-Image Gateway Cards
- Power Supply:
- Dual Leitch 3923PS (redundant)
- Application:
- Broadcast video signal processing and frame synchronization
- Compatible With:
- Leitch NEO Series modular processing frames
- Certifications:
- UL Listed, CE, CSA (CAN/CSA-C22.2 No. 60950-1)
- Standards Compliance:
- FCC, UL 60950-1, IEC 60950-1 (1999)
- Condition Notes:
- This Leitch FR-3923 NEO Frame Synchronizer has been visually inspected and appears to be in good used condition overall. It has not been bench-tested or powered on at our facility.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$450.00Was: $900.00 -

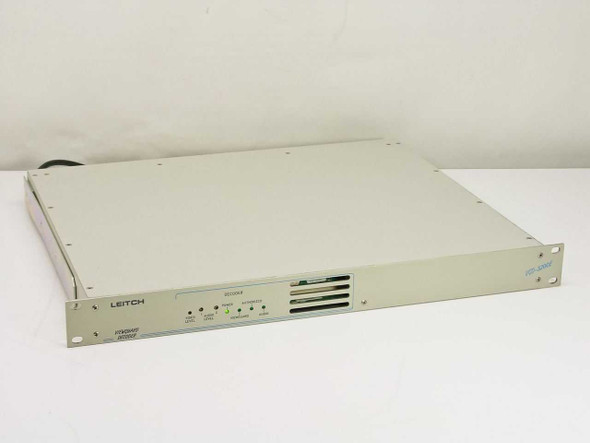

Leitch VGD-3200E Viewguard Decoder 1U Rackmount 117VAC BNC Video Audio Data
Leitch
$50.00Was: $100.00Leitch VGD-3200E Viewguard Decoder 1U Rackmount 117VAC BNC Video Audio DataThe Leitch VGD-3200E is a 1U rack-mount video/audio decoder designed for the NHK/Hughes Viewguard encryption system. It...39467- SKU:
- 39467
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 12.00 LBS
- Brand:
- Leitch
- Model:
- VGD-3200E
- MPN:
- VGD-3200E
- Secondary Model:
- VGD-3200
- Type:
- Viewguard Video/Audio Decoder
- SKU:
- 39467
- Form Factor:
- 1U Rack Mount
- Power Requirements:
- 117VAC, 35VA, 60Hz
- Video Input:
- Bypass Video In, Video In (BNC)
- Audio Input:
- Bypass Audio In (BNC)
- Outputs:
- Status, Audio, Video, Data
- Video Output:
- Video Out, Status Out (BNC)
- Data Interface:
- Data Out (RJ), GPI, AUX Data

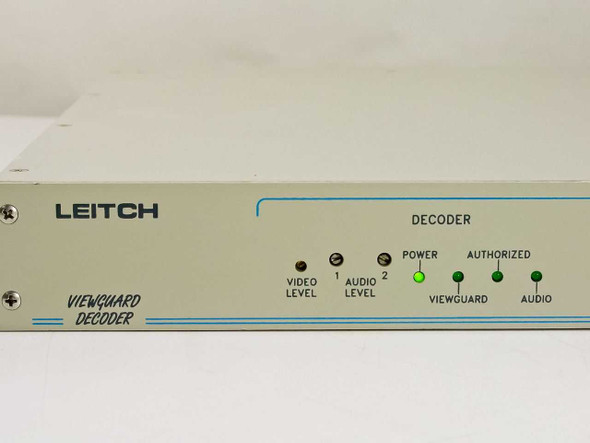

- Front Panel Indicators:
- Video Level, Audio Level 1 & 2, Power, Authorized, Viewguard, Audio LEDs
- Connector Types:
- BNC, terminal block, RJ, 3.5mm
- Compatible System:
- NHK/Hughes Viewguard encryption system
- Country/Region of Manufacture:
- United States
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Unit only; no additional accessories included.
- Condition Notes:
- Leitch VGD-3200E Viewguard Decoder in good used condition. Pulled from a working broadcast environment. Light cosmetic wear on chassis. Front panel intact; rear connectors clean. Please view photos and contact us with any questions.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$50.00Was: $100.00 -

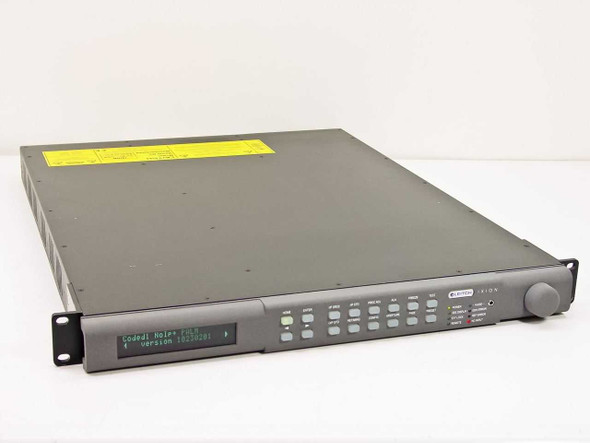

Leitch IXION Motion Adaptive Standards Converter SDI IXS2 IHB IEO 1U Rackmount
Leitch
$700.00Was: $1,400.00Leitch IXION Motion Adaptive Standards Converter SDI IXS2 IHB IEO 1U RackmountThe Leitch IXION is a professional motion-adaptive standards converter designed for broadcast television and...39410- SKU:
- 39410
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 25.00 LBS
- Brand:
- Leitch
- Model:
- IXION
- MPN:
- IXION
- Type:
- Motion Adaptive Standards Converter
- SKU:
- 39410
- Form Factor:
- 1U Rackmount
- Option Board 1:
- IXS2 – SDI Signal Input/Output
- Option Board 2:
- IHB – 10-Bit Analog Comb Filter Decoder
- Option Board 3:
- IEO – Composite Output
- Video Standard:
- PAL / NTSC / SECAM (standards conversion)
- Signal Format Input:
- SDI, Composite (CVBS), Y/C (S-Video)
- Signal Format Output:
- SDI, Composite, Y/C, Black & Burst
- Interface / Connectors:
- BNC (SDI, Composite, REF), S-Video (Y/C), RS-232, TACS
- Serial Interface:
- RS-232 (DB9), TACS (DB9)

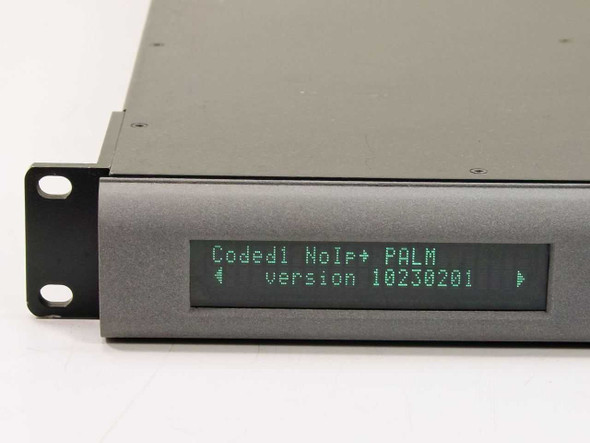

- Front Panel Display:
- Green alphanumeric LCD — shows codec mode and firmware version
- Firmware Version:
- 10230201 (visible on front panel display)
- Country/Region of Manufacture:
- United Kingdom
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Includes IXS2, IHB, and IEO option boards installed. No manual included.
- Compatible With:
- Broadcast SDI, composite, and Y/C video systems; PAL/NTSC/SECAM
- Application:
- Broadcast Television, Post-Production, Standards Conversion
- Condition Notes:
- Leitch IXION Standards Converter — used, pulled from a working broadcast environment where it was in active use and functional. Good cosmetic condition, light rack wear. All three option boards (IXS2, IHB, IEO) installed.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$700.00Was: $1,400.00
