Description
Leica 10446180 M-Series Coaxial Incandescent Light Source Fiber Optic Ring
The Leica 10446180 is a coaxial incandescent ring illuminator designed for use with Leica M-series stereo microscopes. It delivers coaxial (on-axis) illumination through a flexible fiber optic arm, directing light uniformly into the optical path for glare-free imaging of reflective or flat specimens. A 1.5x magnification factor is marked on the body. The unit mounts directly to compatible M-series microscope ports via its dual-port ring interface.
Specifications & What's Included
- Manufacturer: Leica
- Part Number: 10446180 (also referenced as 10 446 180)
- Type: Coaxial incandescent ring light source
- Compatible with: Leica M-series stereo microscopes
- Light delivery: Flexible fiber optic arm with coaxial ring illuminator

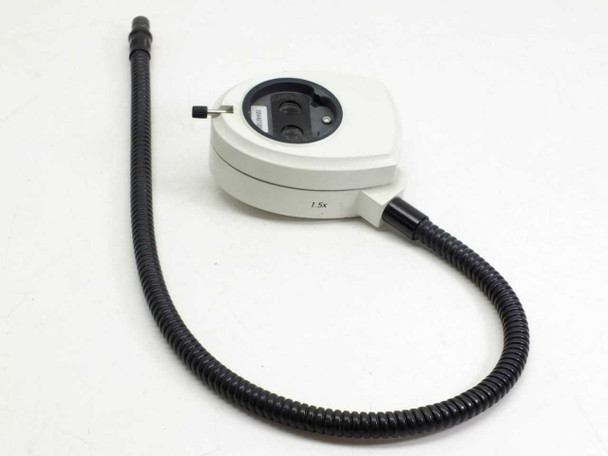

- Magnification factor: 1.5x (marked on housing)
- Upper port diameter: Approx. 57 mm
- Lower port diameter: Approx. 52 mm (45 mm at narrowest point)
- Connector: Multi-pin electrical connector on top of ring body
- Adjustment: Brass thumbscrew post for height/position adjustment
- Includes: Ring illuminator body with attached flexible fiber optic arm
- No power supply, cables, or additional accessories included
Applications
Coaxial illuminators like the Leica 10446180 are standard accessories for stereo microscopes used in electronics inspection, semiconductor and PCB analysis, gemology, watchmaking, biological dissection, and industrial quality control. Coaxial illumination is particularly valuable when examining flat, polished, or highly reflective surfaces — it eliminates the shadowing and glare that oblique lighting produces on such specimens, making surface defects, solder joints, and fine detail much easier to resolve. Leica's M-series stereo microscopes have been widely used in research, production, and clinical labs since the 1960s, and accessories like this ring light source remain in active use wherever an M-series microscope is in service. The flexible fiber optic arm allows the light source to be positioned or routed conveniently without constraining the microscope's working distance.

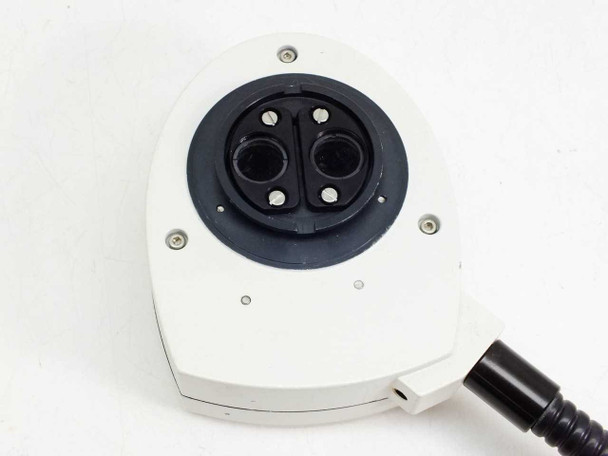

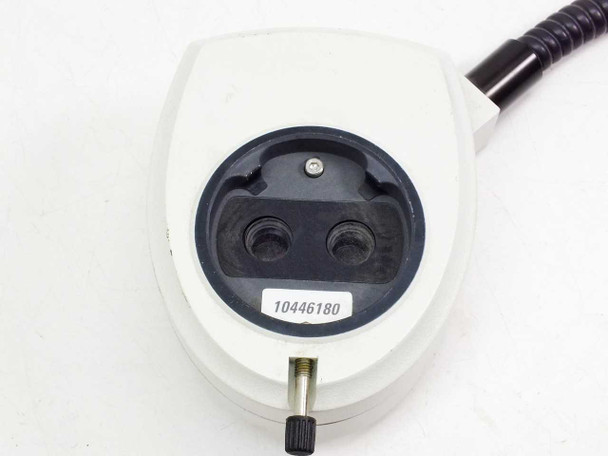

This Leica 10446180 M-Series Coaxial Incandescent Light Source has been inspected and appears to be in good used condition. The housing shows light surface wear consistent with normal lab use. The flexible fiber optic arm is intact, and both output ports are present and undamaged — the upper port measures approximately 57 mm in diameter and the lower port approximately 52 mm (45 mm at its narrowest point). The unit was pulled from a working environment where it was previously in service. Please review all photos and contact us with any questions before purchasing.
Warranty Information
Additional Information
Brand: |
Leica |
Model: |
10446180 |
MPN: |
10446180 |
Secondary Model: |
10 446 180 |
SKU: |
46597 |
Type: |
Coaxial Incandescent Light Source |
Compatible With: |
Leica M-Series Stereo Microscopes |
Illumination Type: |
Incandescent / Fiber Optic |
Light Delivery: |
Coaxial ring illuminator with flexible fiber optic arm |
Upper Port Diameter: |
Approx. 57 mm |
Lower Port Diameter: |
Approx. 52 mm (45 mm at thinnest) |
Magnification Factor: |
1.5x (marked on body) |
Form Factor: |
Handheld / Bench Accessory |
Country/Region of Manufacture: |
Germany |
Seller Notes: |
Includes flexible fiber optic arm attached to ring illuminator body. No power supply or additional accessories included. |
Condition Notes: |
This Leica 10446180 M-Series Coaxial Incandescent Light Source is in good used condition with light surface wear. Fiber optic arm intact; upper port ~57mm dia., lower port ~52mm (45mm at narrowest). Pulled from a working environment. |
