LCF Enterprises

LCF Enterprises A017 RF Power Amplifier 26V DC SMA-M Semi-Rigid Coax Satcom

(No reviews yet) Write a Review
SKU:
33226
MPN:
A017
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
2.00 LBS
Shipping:
Calculated at Checkout
  • LCF Enterprises A017 RF Power Amplifier full view with SMA-M semi-rigid coax pigtails alongside ruler showing approximately 116mm length

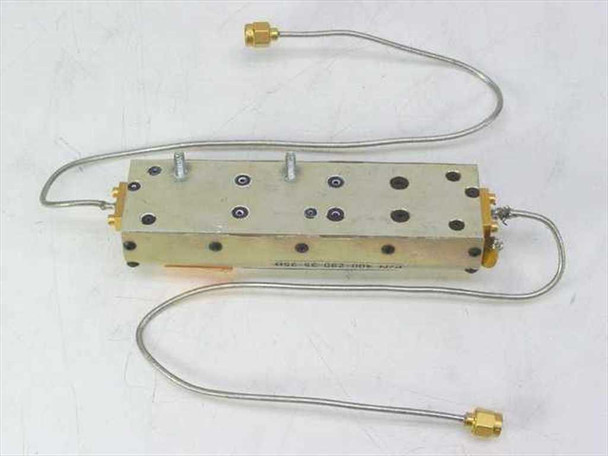

  • LCF Enterprises A017 RF Power Amplifier top/bottom view showing machined aluminum housing with mounting holes and partial label reading 405E-6E-0E2-00L

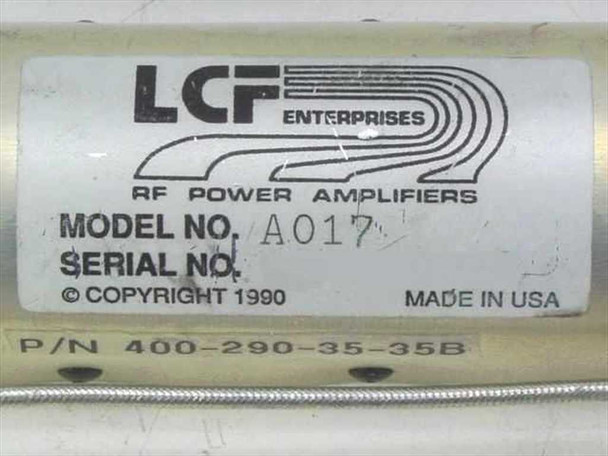

  • LCF Enterprises A017 label close-up showing model number A017, copyright 1990, Made in USA, and part number 400-290-35-35B

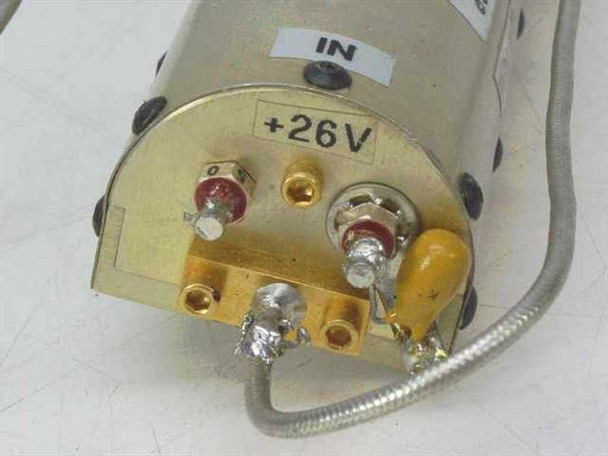

  • LCF Enterprises A017 RF amplifier input end showing +26V DC power supply terminal, input SMA port labeled IN, and internal PCB with gold RF circuitry
  • LCF Enterprises A017 RF amplifier output end showing output SMA connector labeled OUT and semi-rigid coax pigtail exit

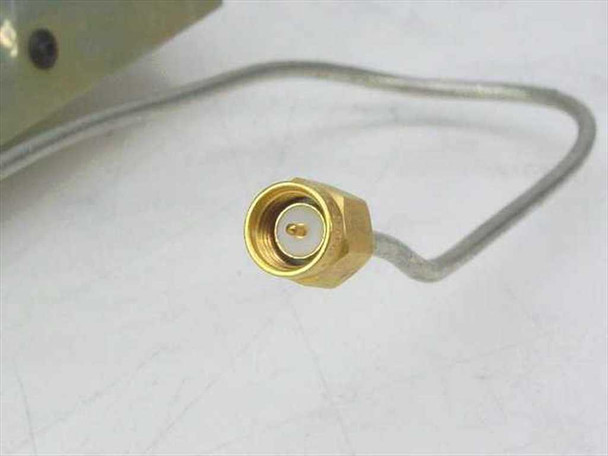

  • Close-up of SMA-M semi-rigid coaxial connector on LCF Enterprises A017 RF Power Amplifier showing gold center pin and precision threaded coupling nut
$50.00
Was: $100.00
Current Stock: 1

Sold Out

Description

LCF Enterprises A017 RF Power Amplifier 26V DC SMA-M Semi-Rigid Coax Satcom

RF power amplifier module designed for satellite communications and microwave RF applications. Operates on +26V DC supply with SMA-M semi-rigid coaxial connectors.

Specifications & What's Included

  • Model: A017 | MPN: 400-290-35-35B
  • Power Supply: +26V DC
  • Connectors: SMA-M semi-rigid coaxial pigtails (attached)
  • Dimensions: 116 mm x 33 mm
  • Form Factor: Module / Inline
  • Manufactured: United States, 1990
  • Frequency range, gain, and output power not specified

Applications

This amplifier type was used in satellite ground stations, uplink systems, and microwave RF signal chains where compact inline amplification was required. Common in telecom infrastructure and Satcom earth stations from the 1980s–1990s. Typically integrated into larger RF transmission or receiver systems requiring mid-stage signal boost.

Condition: Used
This LCF Enterprises A017 RF Power Amplifier has been inspected and appears to be in good used condition. The cylindrical aluminum housing is intact with no visible cracks or major damage. The SMA-M semi-rigid coax pigtails are present and the connector ends look clean and undamaged. There is light surface wear consistent with previous use and handling. Power, gain, and frequency specifications for this unit are not known, and it has not been bench-tested at our facility. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
LCF Enterprises
Model:
A017
MPN:
400-290-35-35B
SKU:
33226
Type:
RF Power Amplifier
Power Supply Voltage:
+26V DC
Connector Type:
SMA-M (semi-rigid coaxial cable)
Housing Dimensions:
116 mm x 33 mm
Form Factor:
Module / Inline
Country/Region of Manufacture:
United States
Copyright / Date Code:
1990
Application:
Satellite Communications (Satcom), Microwave RF
Frequency Range:
Unknown — not specified
Gain:
Unknown — not specified
Condition:
Used – Inspected
Seller Notes:
Includes attached SMA-M semi-rigid coax pigtails. Power, gain, and frequency specs unknown.
Condition Notes:
LCF Enterprises A017 RF Power Amplifier inspected and in good used condition. Housing intact, SMA-M coax connectors clean. Light surface wear. Power, gain, and frequency specs unknown; not bench-tested. Please contact us with any questions.
View AllClose

Related Products

Related Products

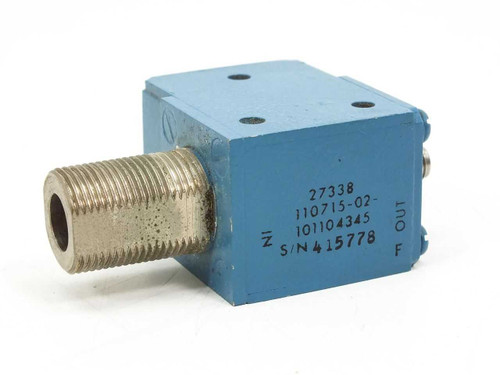

RF Coax Isolator 27338 110715-02 – angled front-left view showing large SMA threaded port and part number label RF Coax Isolator 27338 – rear and side view showing small SMA female port and blue anodized body with mounting screws
Add to Cart
Quick view

RF Coax Isolator 27338 110715-02 SMA Connector Satcom Microwave Component

Blue

$45.00
Was: $90.00
RF Coax Isolator 27338 110715-02 SMA Connector Satcom Microwave ComponentRF coaxial isolator designed to provide one-way signal transmission while blocking reverse signals in RF and microwave systems...
45685
SKU:
45685
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Brand:
Unbranded
Model:
27338
MPN:
110715-02
Secondary Model:
110715-02-101104345
SKU:
45685
Type:
RF Coaxial Isolator
Connector Type:
SMA
Body Color:
Blue
Application:
Satcom, Microwave, RF Systems
Form Factor:
Inline / Block Module
Condition:
Used – Pulled from Working Environment
Seller Notes:
Unit only — no additional accessories included
Condition Notes:
RF Coax Isolator 27338 / 110715-02 pulled from a working satcom environment, inspected and in good used condition. Blue body shows minor surface wear. SMA connectors intact with no visible damage.

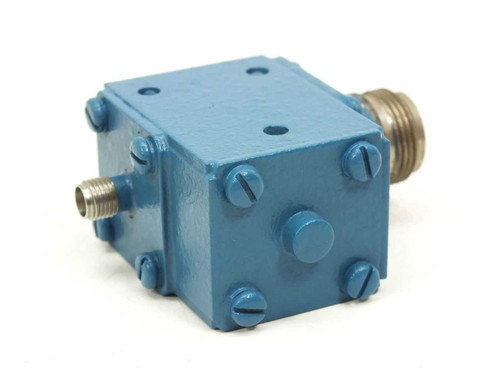

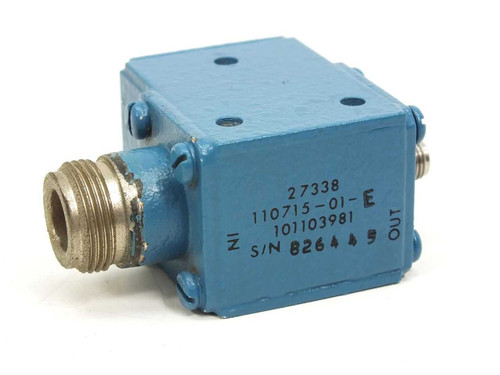

RF Coaxial Isolator 110715-01 27338 — angled view showing N-type female connector and part number label with S/N 826445 RF Coaxial Isolator 110715-01 — opposite side view showing SMA female connector and blue painted body with mounting screws
