Laurier X/Y Directional Position Controller Die Loader Wafer Semiconductor 13x17
This is a Laurier X/Y Directional Position Controller designed for die loader and wafer semiconductor positioning applications. The unit provides operator-controlled X and Y axis directional input through a front-panel numeric keypad, directional keypad cluster, and small alphanumeric display, with dedicated rear-panel connectors for X Axis, Y Axis, Limits, and a DB25 parallel interface. The enclosure measures 13" x 13" x 17" tall and houses internal motion electronics, a stepper or servo drive assembly, and a cooling fan.
Specifications & What's Included
- Brand: Laurier
- Type: X/Y Directional Position Controller
- Application: Die loader / wafer semiconductor positioning
- Axes: X Axis, Y Axis (dedicated rear connectors labeled)

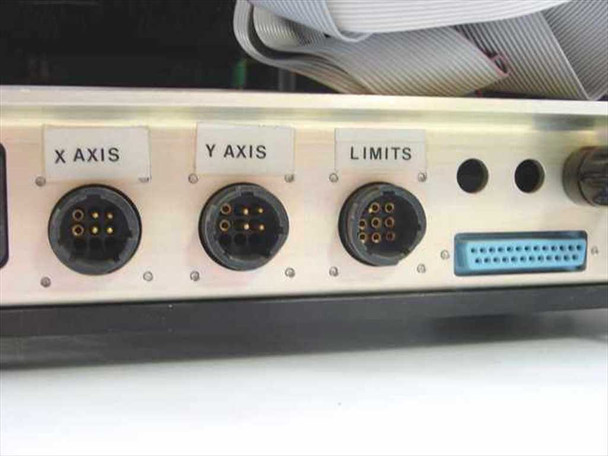

- Rear connectors: X Axis (circular multi-pin), Y Axis (circular multi-pin), Limits (circular multi-pin), DB25 parallel connector

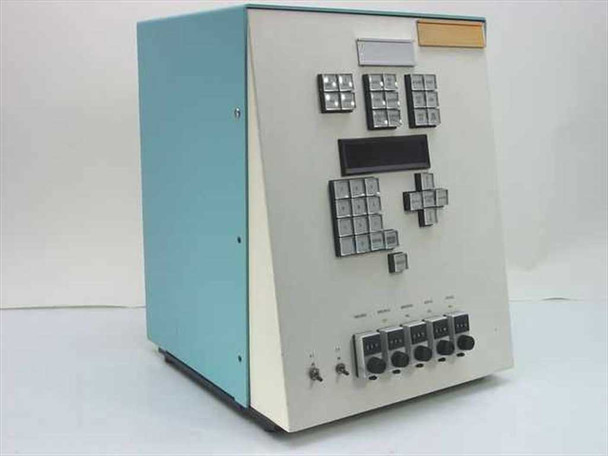

- Front panel: numeric keypad, cross/directional keypad, alphanumeric display, toggle switches, rotary control knobs
- Enclosure: freestanding teal/blue and cream painted steel cabinet
- Dimensions: 13" W x 13" D x 17" H (approximate)

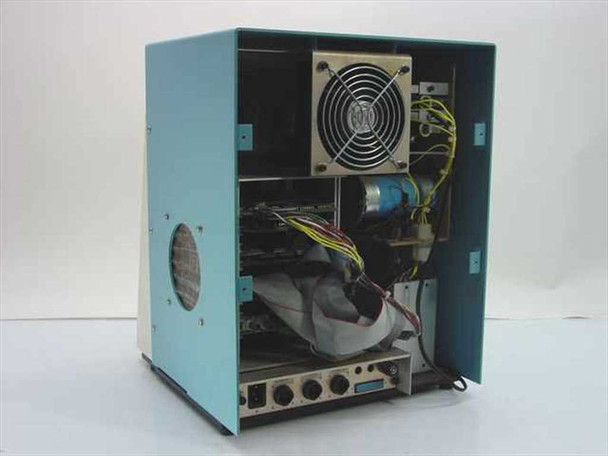

- Internal: cooling fan, internal wiring harness, motor/drive assembly visible from rear
- Sold as-is — unit only, no additional accessories observed
Applications
X/Y position controllers of this type are used in semiconductor wafer fabrication and die handling equipment to precisely direct the motion of a stage or loader mechanism along two orthogonal axes. In a die loader system, the controller accepts operator input or programmed coordinates and drives stepper or servo motors to position wafers, die frames, or pick-and-place tooling with repeatable accuracy. Equipment of this class was standard in wafer fab lines from the 1980s through the 1990s, used in die attach, wire bond, and wafer inspection stations where precise X/Y table positioning was required. The dedicated Limits connector seen on this unit is typical of systems that integrate end-of-travel limit switches to prevent over-travel and protect tooling. Today, similar controllers are still sought for maintenance, repair, and spare-parts support of legacy semiconductor fab equipment still in service.
This Laurier X/Y Directional Position Controller for die loader and wafer semiconductor applications is being sold as-is for parts or repair. We are unable to test it at our facility, so functionality is not guaranteed. The unit appears complete externally — the front panel keypad, display, and controls are all present, and the rear X Axis, Y Axis, Limits connectors, and DB25 port are intact. The teal/cream enclosure shows normal wear consistent with prior industrial use. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Laurier |
Model: |
X/Y Directional Position Controller |
Type: |
X/Y Directional Position Controller |
SKU: |
23946 |
Condition: |
As-Is / For Parts or Not Working |
Seller Notes: |
Sold as-is for parts or repair. Unable to test at our facility. |
Application: |
Die Loader / Wafer Semiconductor Positioning |
Axes: |
X Axis, Y Axis |
Connector Types: |
X Axis: circular multi-pin, Y Axis: circular multi-pin, Limits: circular multi-pin, DB25 |
Interface: |
X Axis, Y Axis, Limits, DB25 parallel connector |
Form Factor: |
Freestanding Cabinet / Benchtop |
Dimensions: |
13" x 13" x 17" H |
Front Panel Controls: |
Numeric keypad, directional keypad, small display, toggle switches, rotary knobs |
Cooling: |
Internal cooling fan |
Enclosure Color: |
Teal/Blue and Cream |
Compatible With: |
Semiconductor die loader, wafer handler systems |
Country/Region of Manufacture: |
United States |
Condition Notes: |
Laurier X/Y Position Controller for die loader/wafer semiconductor. Sold as-is for parts or repair. Unable to test at our facility; functionality not guaranteed. Enclosure and connectors appear intact. No returns on as-is sales. |
