Laurier HA245 Die Loader Pick & Place Semiconductor 690-2406 Baldor 90VDC Motor

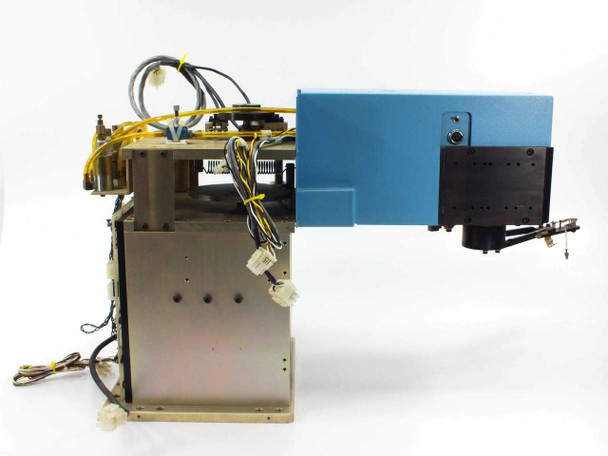

This is a Laurier die loader pick and place unit, likely model HA245, used in semiconductor die handling and assembly operations. The unit is incomplete and is being sold strictly AS-IS for parts value. It includes a Baldor DC permanent magnet motor and the Laurier motherboard assembly, along with the mechanical frame, linear slides, rotary actuator mechanism, and associated wiring harnesses visible in the photos.
Specifications & What's Included
- Manufacturer: Laurier
- Model: HA245 (tentative — not labeled on unit)
- Type: Die loader pick and place unit for semiconductor assembly
- Motor Brand: Baldor
- Motor Voltage: 90 VDC
- Motor Current: 1.3 A
- Motor Power: 1/8 HP
- Motor Type: DCPM (DC Permanent Magnet)

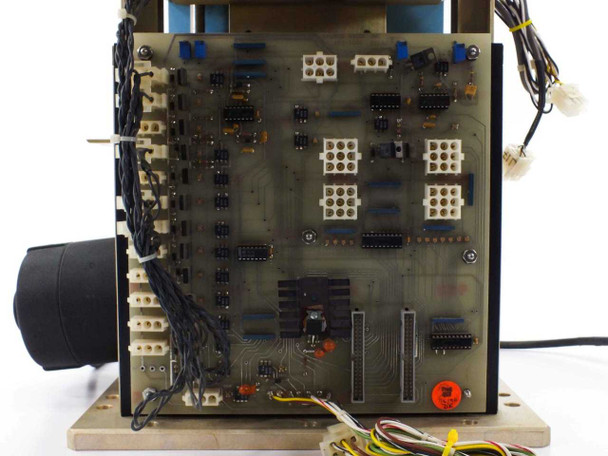

- Motherboard Part Number: 690-2406 Rev. B (Laurier)
- Motherboard features multiple DIP IC sockets, multi-pin connectors, and discrete components

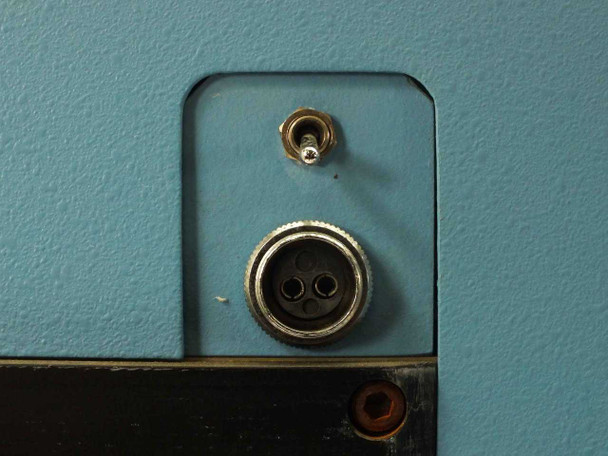

- Blue sheet-metal housing with toggle switch and circular multi-pin panel connector (2-pin)
- Rotary actuator / indexing disc mechanism visible on top deck

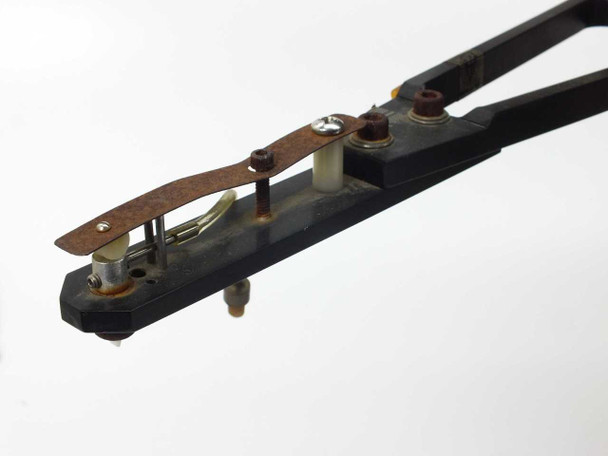

- Pick arm end effector with mechanical linkage (shows surface rust)

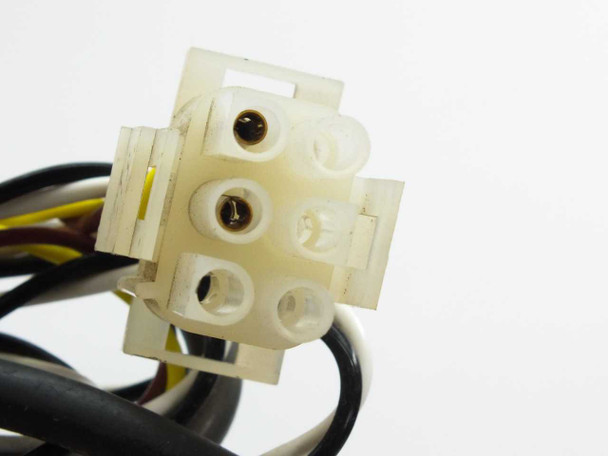

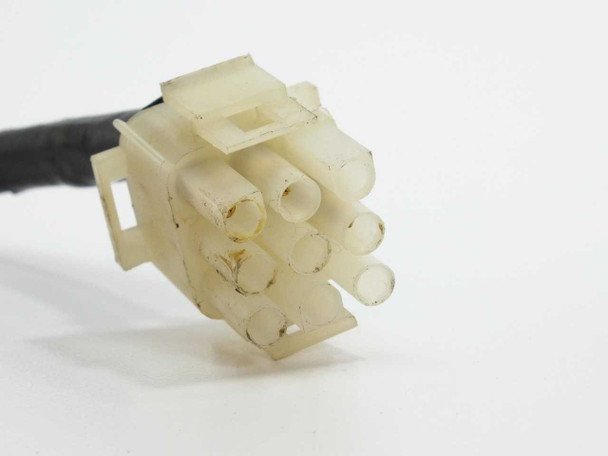

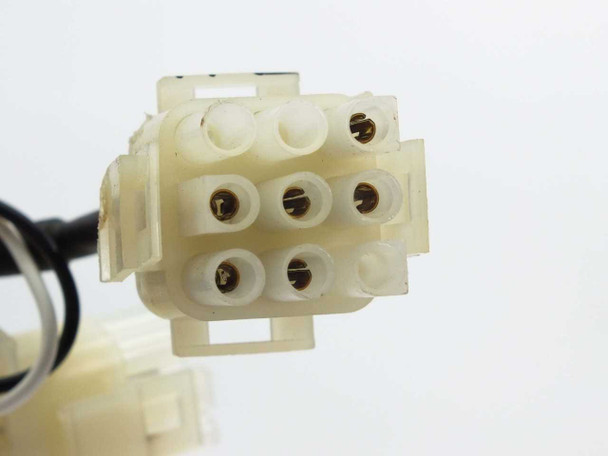

- Multiple Molex-style multi-pin wiring harness connectors (various pin counts)
- Yellow fiber-optic or pneumatic tubing bundle present
- Large DC motor mounted at base of main assembly
- Unit is incomplete — sold for parts value only; not all components may be present
Applications
Pick and place die loader units of this type were used in semiconductor back-end assembly lines to handle individual silicon dies — picking them from a wafer or tray and placing them precisely onto substrates, lead frames, or carriers for bonding. These systems were integral to die attach and die sorting operations in IC packaging facilities from the 1980s through the 2000s. The Baldor DCPM motor provided the controlled rotary or linear drive motion needed for repeatable, precise placement cycles. Today, units like this one are primarily sourced for replacement motors, control boards, mechanical slides, actuators, and other precision motion components that are difficult to source new. The motherboard, motor, and mechanical sub-assemblies here may be useful for repair or retrofit of compatible Laurier equipment or similar semiconductor tooling.
This Laurier HA245 Die Loader Pick & Place Unit is incomplete and is being sold AS-IS for parts value only. It is not guaranteed to be functional and has not been tested. The unit includes a Baldor 90 VDC, 1.3A, 1/8 HP DCPM motor and Laurier motherboard 690-2406 Rev. B, along with the mechanical assembly and associated wiring harnesses visible in the photos. The pick arm end effector shows surface rust and wear. Several Molex-style multi-pin connectors are present on the wiring harnesses. The blue housing panel includes a toggle switch and a circular multi-pin connector. This is an as-is parts lot — please review all photos carefully and contact us with any questions before purchasing.
Warranty Information
Additional Information
Brand: |
Laurier |
Model: |
HA245 |
MPN: |
690-2406 Rev. B |
Type: |
Die Loader Pick & Place Unit |
SKU: |
47935 |
Condition: |
As-Is / For Parts or Not Working |
Seller Notes: |
Incomplete unit sold for parts value; includes Baldor motor and motherboard 690-2406 Rev. B |
Application: |
Semiconductor die handling / assembly |
Motor Brand: |
Baldor |
Motor Voltage: |
90 VDC |
Motor Current: |
1.3 A |
Motor Power: |
1/8 HP |
Motor Type: |
DCPM (DC Permanent Magnet) |
Motherboard Part Number: |
690-2406 Rev. B |
Country/Region of Manufacture: |
United States |
Condition Notes: |
Laurier HA245 Die Loader Pick & Place Unit sold AS-IS for parts only. Incomplete — not tested or guaranteed functional. Includes Baldor 90VDC DCPM motor and motherboard 690-2406 Rev. B. Please review photos and contact us with questions. |
