Description
Lacquer Dispensing System Iwaki EH-C20SH-200R9 Metering Pump Elepon BD 14-37/43-15GY

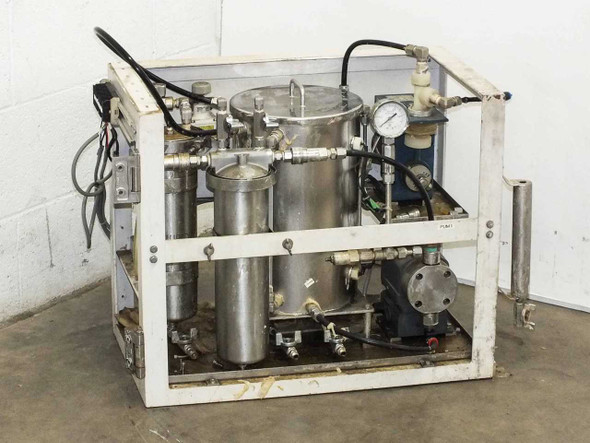

Frame-mounted lacquer and chemical fluid dispensing system combining an Iwaki metering pump with an Elepon bellows pump. Used for controlled fluid metering and delivery in coating and finishing applications.
Specifications & What's Included

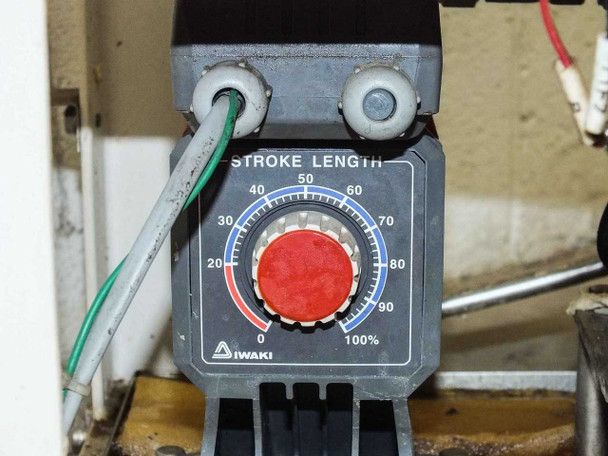

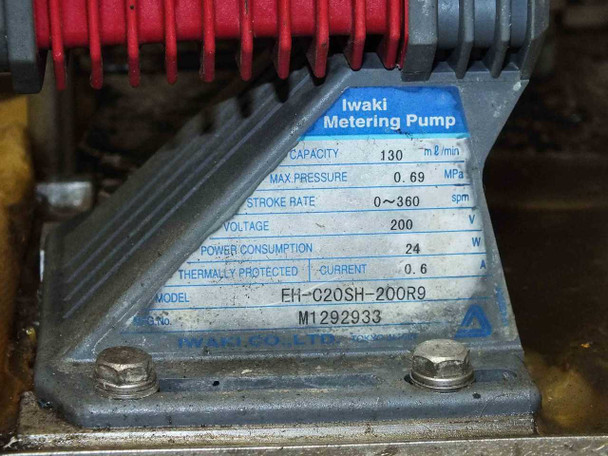

- Iwaki EH-C20SH-200R9 metering pump: 130 mL/min capacity, 0.69 MPa max pressure, 0–360 spm stroke rate, 200V/24W

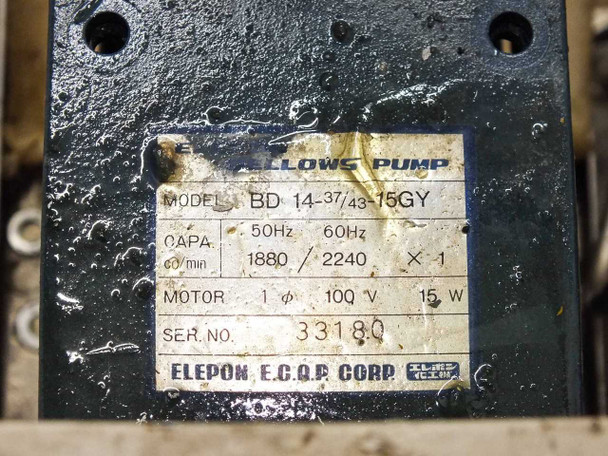

- Elepon BD 14-37/43-15GY bellows pump: 1880 mL/min (50Hz) / 2240 mL/min (60Hz), 100V single-phase motor, 15W

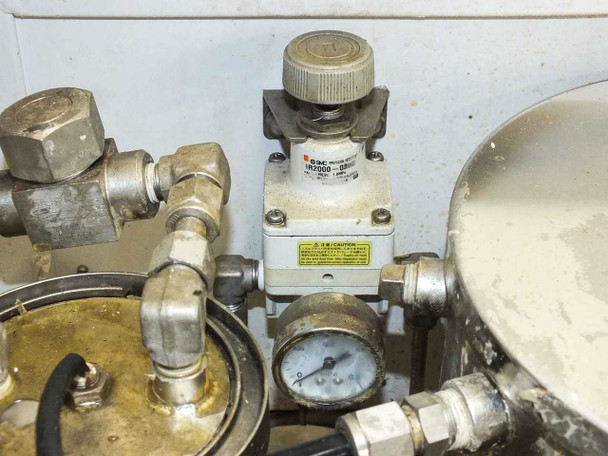

- SMC AR3000 pressure regulator with gauges

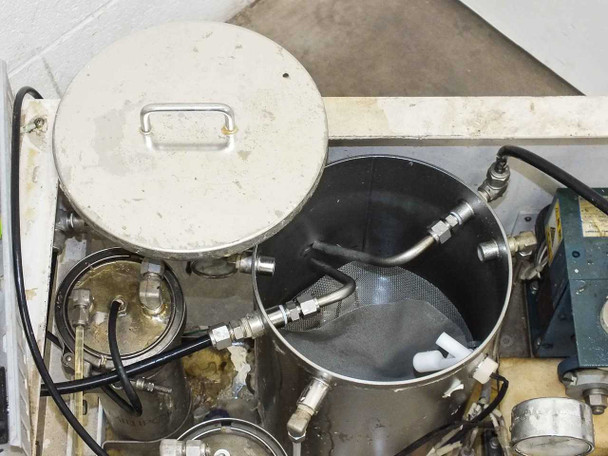

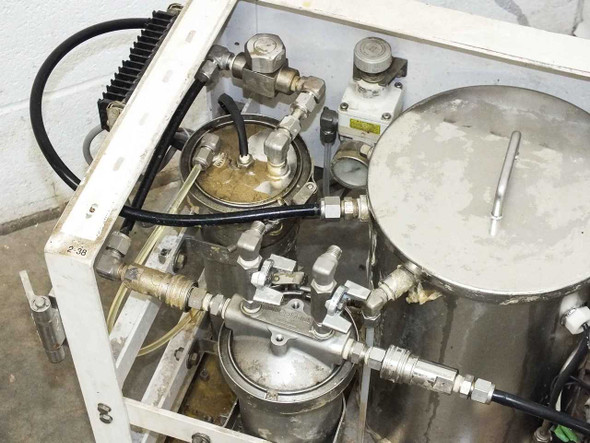

- Stainless steel containers and manifold plumbing
- Frame-mounted benchtop configuration
- Made in Japan
Applications
This system type is used for precise fluid metering in industrial lacquer coating, semiconductor finishing, and electronics manufacturing. The dual-pump configuration handles both primary fluid supply and metering functions. Commonly integrated into automated coating lines where consistent fluid delivery rates are required for lacquer application, conformal coating, and specialty chemical dispensing processes.
Condition: Used

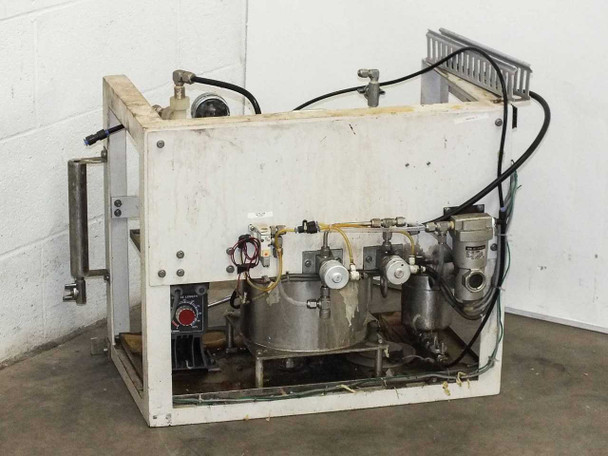

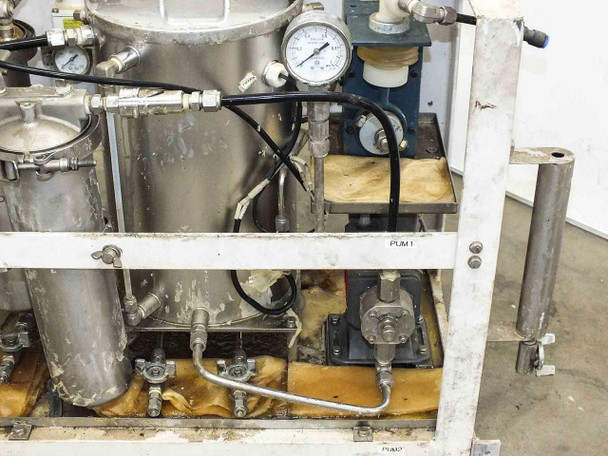

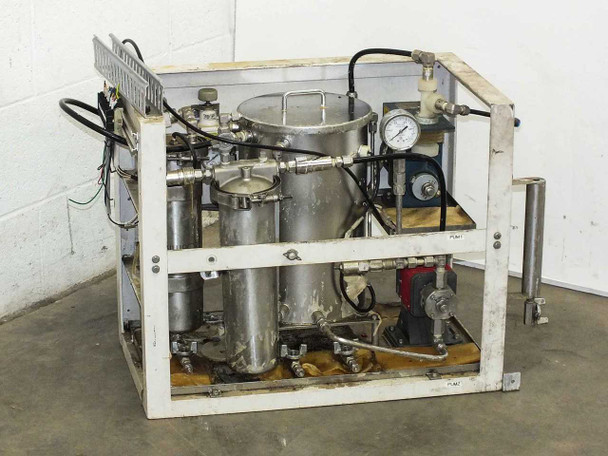

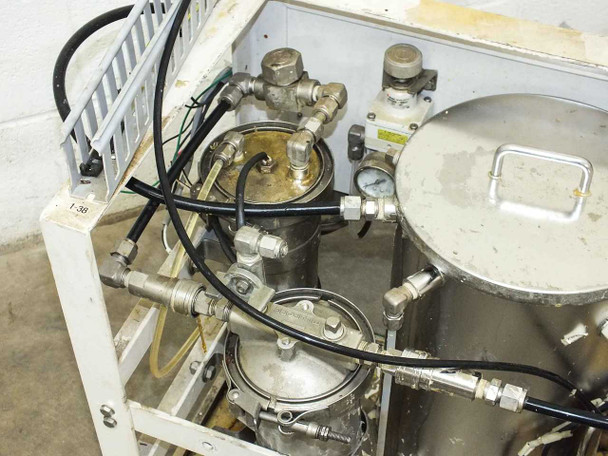

This Lacquer Dispensing System with Iwaki EH-C20SH-200R9 Metering Pump and Elepon BD 14-37/43-15GY Bellows Pump has been inspected and is in good used condition. It was pulled from a working environment where it was actively in use. The white painted steel frame shows surface wear, scuffing, and some discoloration consistent with industrial use. The stainless steel containers show residue and oxidation on exterior surfaces typical of lacquer service. Plumbing, fittings, manifold, SMC pressure regulator, and pressure gauges are all present and intact. The Iwaki metering pump and Elepon bellows pump are both included and mounted in the frame. Please view our photo set and contact us if you have any questions.
This Lacquer Dispensing System with Iwaki EH-C20SH-200R9 Metering Pump and Elepon BD 14-37/43-15GY Bellows Pump has been inspected and is in good used condition. It was pulled from a working environment where it was actively in use. The white painted steel frame shows surface wear, scuffing, and some discoloration consistent with industrial use. The stainless steel containers show residue and oxidation on exterior surfaces typical of lacquer service. Plumbing, fittings, manifold, SMC pressure regulator, and pressure gauges are all present and intact. The Iwaki metering pump and Elepon bellows pump are both included and mounted in the frame. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Iwaki / Elepon |
Model: |
EH-C20SH-200R9 |
Secondary Model: |
BD 14-37/43-15GY |
MPN: |
EH-C20SH-200R9 |
SKU: |
47159 |
Type: |
Lacquer / Chemical Fluid Dispensing System |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Includes Iwaki metering pump, Elepon bellows pump, stainless steel containers, manifold plumbing, SMC regulator, pressure gauges, and frame |
Metering Pump Model: |
Iwaki EH-C20SH-200R9 |
Metering Pump Capacity: |
130 mL/min |
Metering Pump Max Pressure: |
0.69 MPa |
Metering Pump Stroke Rate: |
0–360 spm |
Metering Pump Voltage: |
200V |
Metering Pump Power Consumption: |
24W |
Metering Pump Current: |
0.6A |
Bellows Pump Model: |
Elepon BD 14-37/43-15GY |
Bellows Pump Capacity (50Hz): |
1880 mL/min |
Bellows Pump Capacity (60Hz): |
2240 mL/min |
Bellows Pump Motor Voltage: |
100V |
Bellows Pump Motor Power: |
15W |
Bellows Pump Phase: |
Single Phase |
Pressure Regulator: |
SMC AR3000 (visible in photos) |
Container Material: |
Stainless Steel |
Form Factor: |
Frame-Mounted / Benchtop System |
Country/Region of Manufacture: |
Japan |
Application: |
Lacquer dispensing, chemical fluid metering, coating systems |
Compatible With: |
Industrial lacquer coating, semiconductor, electronics finishing lines |
Condition Notes: |
This Lacquer Dispensing System w/ Iwaki EH-C20SH-200R9 and Elepon BD 14-37/43-15GY pumps has been inspected and is in good used condition. Pulled from a working environment. Frame, containers, plumbing, and both pumps present. |
