Iwaki

Iwaki EH-C20SH-200R9 Metering Pump 200V 24W 0.69MPa 0-360 SPM Chemical Dosing

(No reviews yet) Write a Review
SKU:
48408
MPN:
EH-C20SH-200R9
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
12.00 LBS
Shipping:
Calculated at Checkout

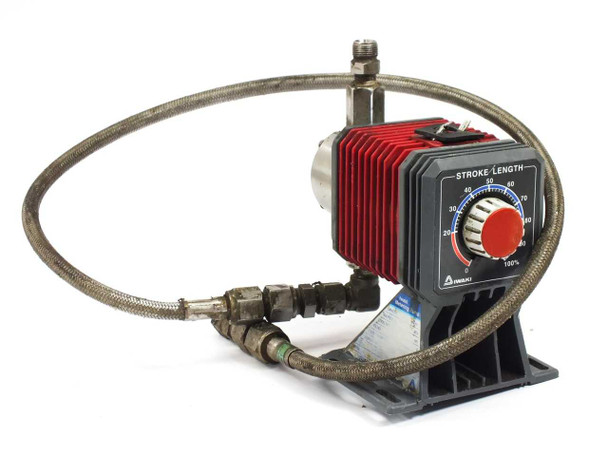

  • Iwaki EH-C20SH-200R9 metering pump front-left view showing red finned motor housing, stroke length dial, and attached braided stainless hose on base
  • Iwaki EH-C20SH-200R9 metering pump rear-left view showing pump head fittings, braided hose connection, and red finned motor housing

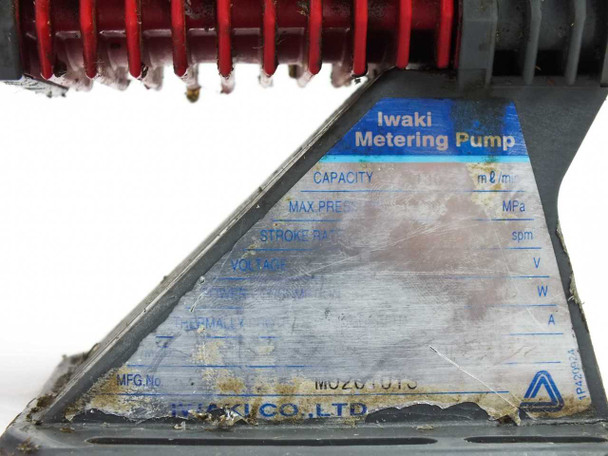

  • Iwaki EH-C20SH-200R9 metering pump rating plate label on base showing Iwaki Metering Pump markings and MFG number M020-1016
  • Iwaki EH-C20SH-200R9 stroke length dial close-up showing 0–100% adjustment scale with red knob and Iwaki logo
  • Iwaki EH-C20SH-200R9 metering pump front view showing stroke length adjustment panel, Iwaki logo, and finned housing on mounting base
  • Iwaki EH-C20SH-200R9 pump head close-up showing male NPT discharge fitting and check valve fittings with mineral deposits and wear

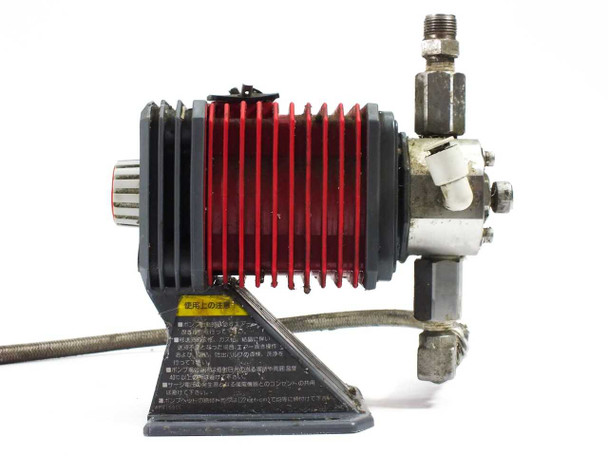

  • Iwaki EH-C20SH-200R9 metering pump right-side view showing red finned motor housing, pump head assembly, Japanese warning label, and base mount
$120.00
Was: $250.00
Current Stock: 1

Sold Out

Description

Iwaki EH-C20SH-200R9 Metering Pump 200V 24W 0.69MPa 0-360 SPM Chemical Dosing

Electromagnetic diaphragm metering pump designed for precise liquid dosing and chemical injection. Operates at 200V with adjustable stroke rate from 0–360 strokes per minute and variable stroke length control.

Specifications & What's Included

  • Brand: Iwaki Co., Ltd. (Japan)
  • Model: EH-C20SH-200R9
  • Power: 200V, 24W, 0.6A
  • Max Pressure: 0.69 MPa (approx. 100 PSI)
  • Stroke Range: 0–360 SPM with 0–100% adjustment
  • Includes braided stainless flexible hose and pump head fittings

Applications

This pump type is used in water treatment systems, chemical dosing stations, and laboratory fluid metering setups. Common in cooling tower treatment, wastewater processing, and industrial chemical injection where controlled, low-volume dispensing is required. The EH series is compatible with standard laboratory and process control benchtop installations.

Condition: Used
This Iwaki EH-C20SH-200R9 metering pump has been inspected and appears to be in good condition. It was pulled from a working environment where it was in active use. The red finned motor housing is intact, and the stroke length adjustment dial is present and undamaged. The pump head fittings and braided stainless flexible hose show mineral deposits and surface corrosion consistent with chemical service — typical for this type of equipment. The base and housing show general wear from use. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Iwaki
Model:
EH-C20SH-200R9
MPN:
EH-C20SH-200R9
Type:
Electromagnetic Metering Pump
SKU:
48408
Seller Notes:
Includes attached braided stainless flexible hose and pump head fittings as shown
Country/Region of Manufacture:
Japan
Voltage:
200V
Power Consumption:
24W
Current Rating:
0.6A
Max Pressure:
0.69 MPa (approx. 100 PSI)
Stroke Rate:
0–360 SPM
Stroke Length Adjustment:
0–100%
Pump Series:
EH Series
Pump Mechanism:
Electromagnetic diaphragm
Application:
Chemical dosing, liquid metering, water treatment
Form Factor:
Benchtop / Freestanding
Manufacturer:
Iwaki Co., Ltd.
Condition Notes:
This Iwaki EH-C20SH-200R9 metering pump has been inspected and is in good used condition. Pulled from a working environment where it was in active service. Pump head fittings and hose show mineral deposits typical of chemical use.
View AllClose

Related Products

Related Products

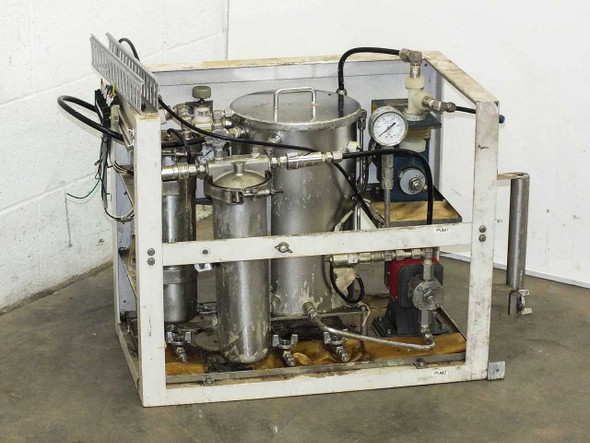

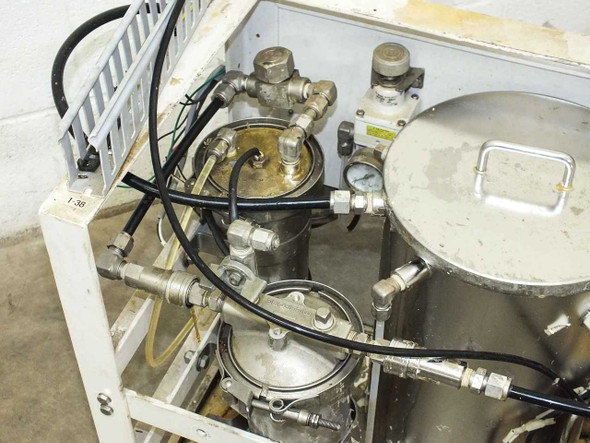

Lacquer dispensing system overall front-left view showing stainless steel containers, plumbing manifold, and white painted steel frame Top-down view of lacquer dispensing system showing stainless vessel lids, compression fittings, hose connections, and pressure gauge
