Koganei F10M6AJ 6-Station Pneumatic Solenoid Valve Manifold DC24V F10T1 F10T2

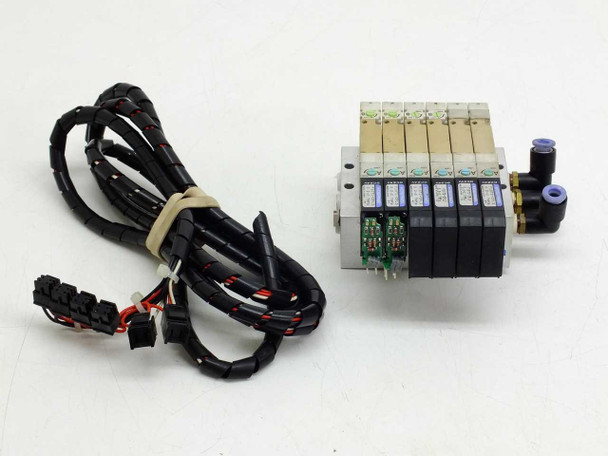

The Koganei F10M6AJ is a 6-station pneumatic solenoid valve manifold designed for industrial automation and process control applications. This manifold integrates multiple solenoid-operated directional control valves into a compact subplate assembly, providing centralized pneumatic command and air routing for multi-circuit systems. The unit consolidates individual valve functionality into a single unified block, simplifying manifold design in complex automation setups.

Specifications & What's Included

• Manufacturer: Koganei

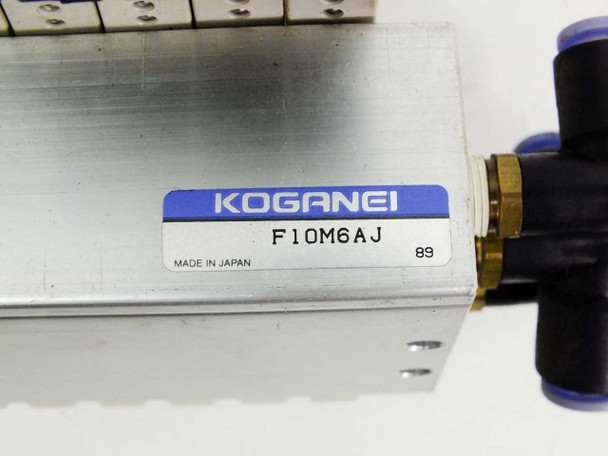

• Model: F10M6AJ
• Configuration: 6-station pneumatic valve manifold

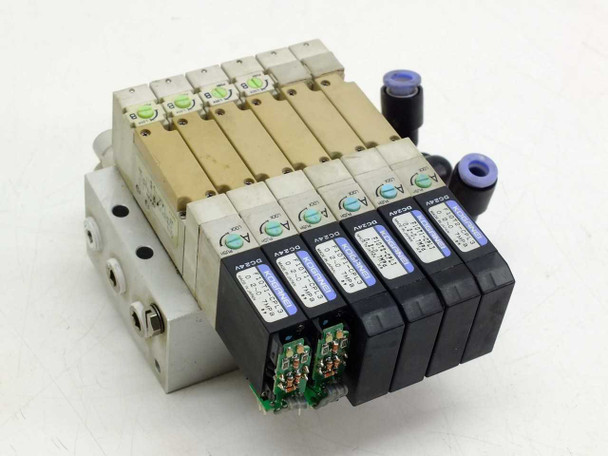

• Integrated Solenoid Valves: 4x F10T1-CPL3, 2x F10T2-CPL3
• Coil Voltage: DC24V rated

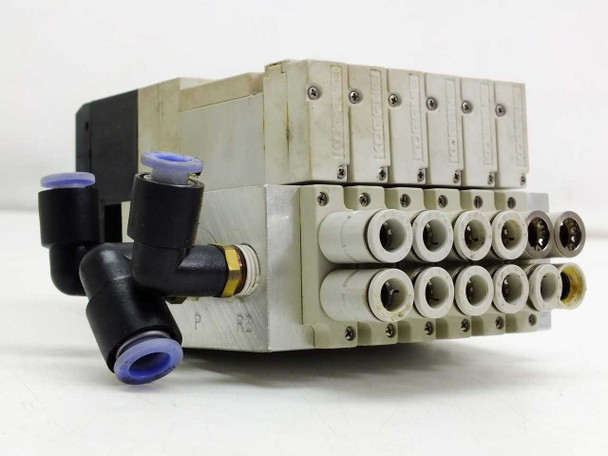

• Pneumatic Interface: Push-in fittings (modular connection)
• Mounting: Subplate-style manifold block assembly
• Origin: Japan manufactured

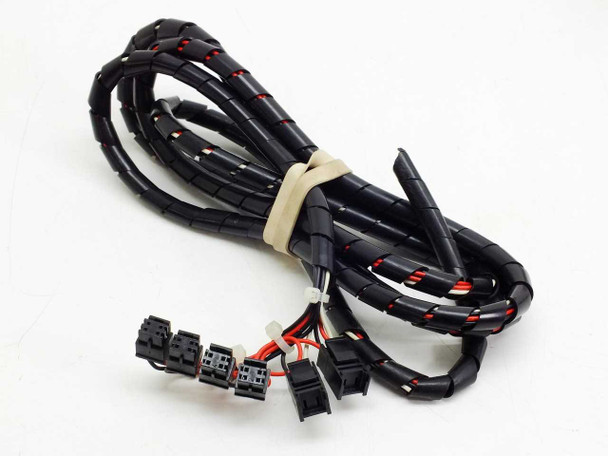

• Included Accessories: Wiring harness for solenoid coil connections

Applications

Pneumatic manifolds like the Koganei F10 series are standard in factory automation environments for directing and regulating compressed air flow across multiple control circuits. These units are widely deployed in assembly lines, packaging machinery, material handling systems, and process control setups where multiple pneumatic actuators and valves must be controlled from centralized PLC or relay logic. The F10 series integrates solenoid valve control with multiple output stations, enabling efficient pneumatic command distribution from a single manifold block. By consolidating valve functions, manifolds reduce system complexity, save panel space, and improve reliability in high-cycle production environments. The DC24V coil rating is standard in modern industrial control systems, making this manifold compatible with typical 24-volt logic power supplies found across factory automation infrastructure.
